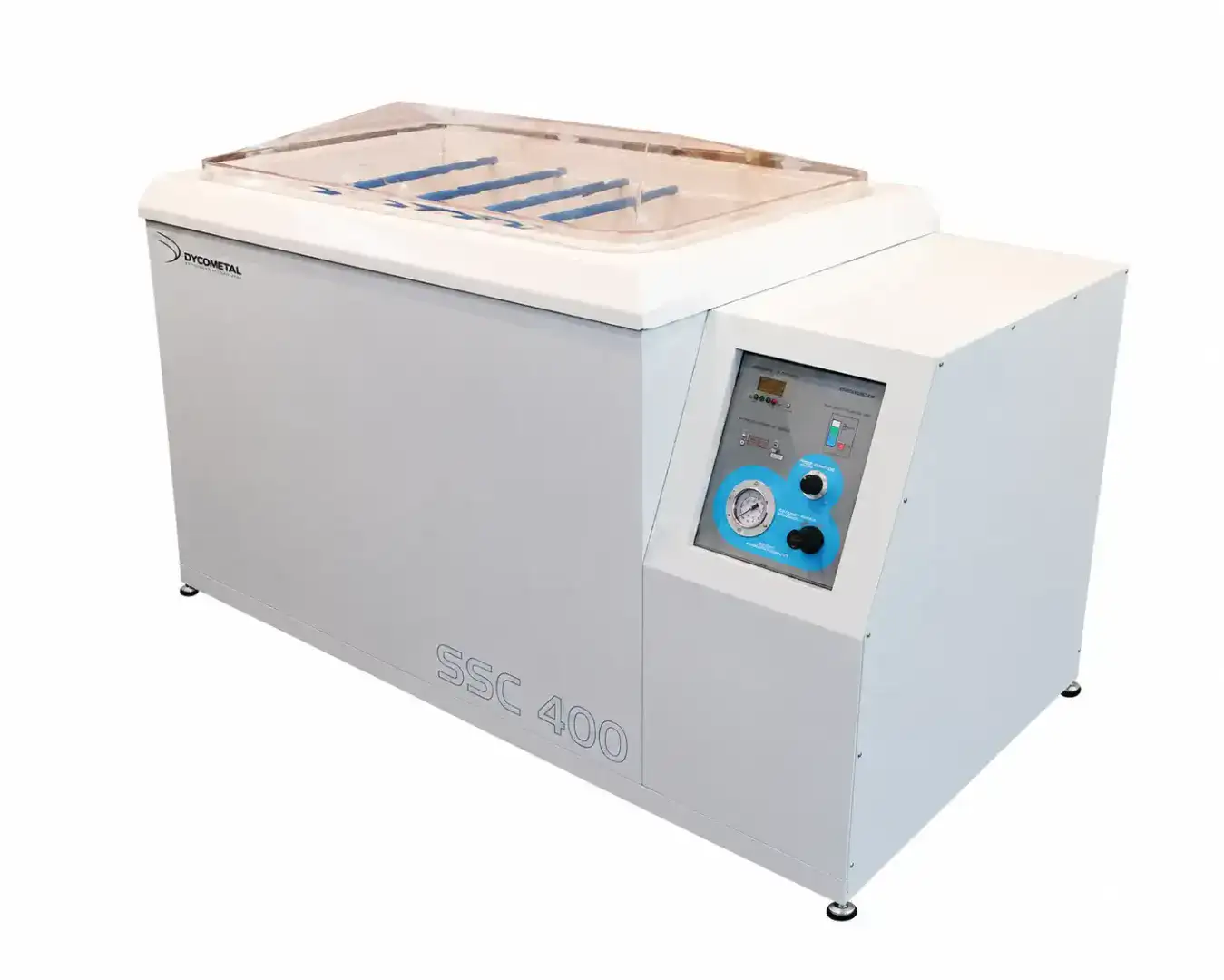

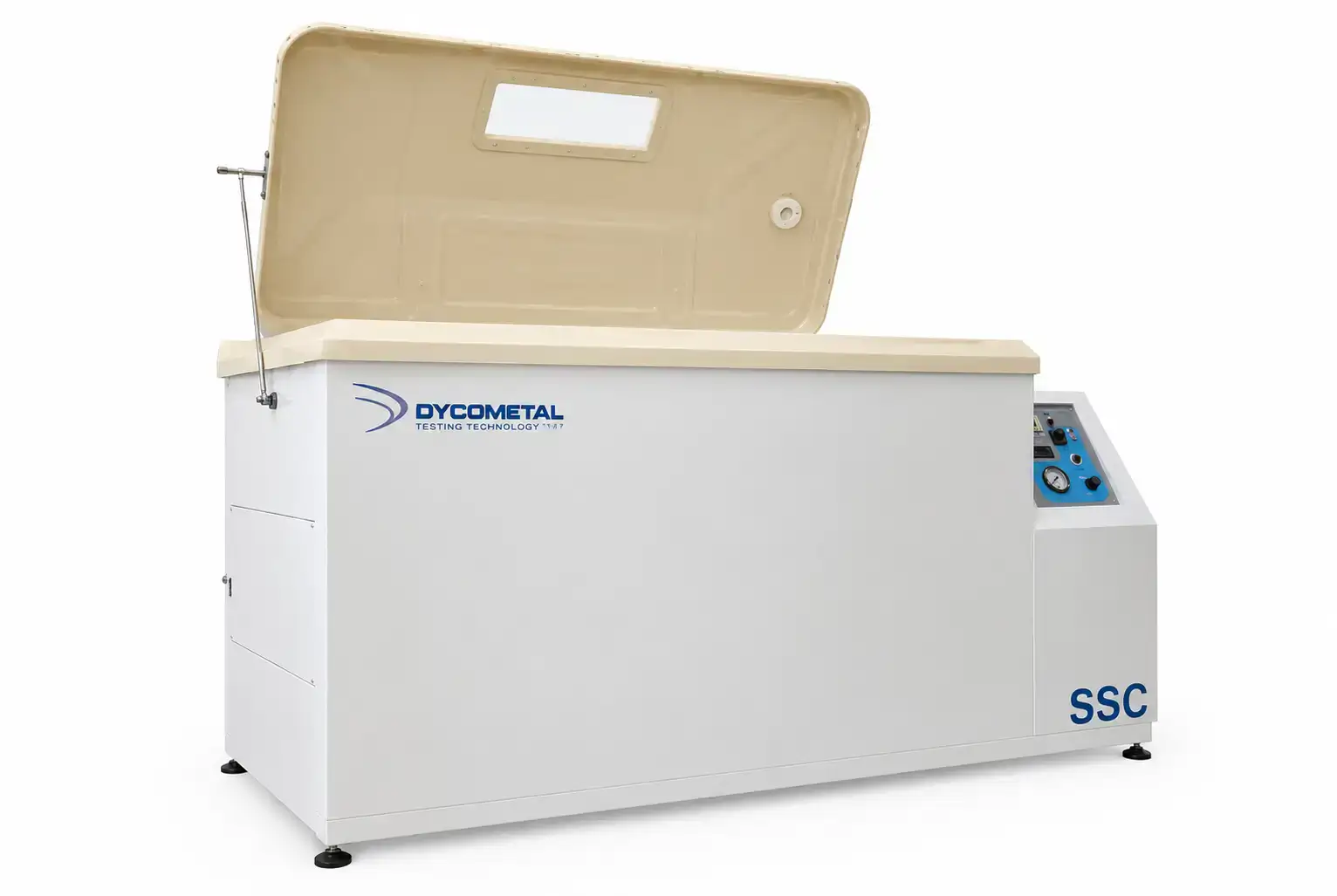

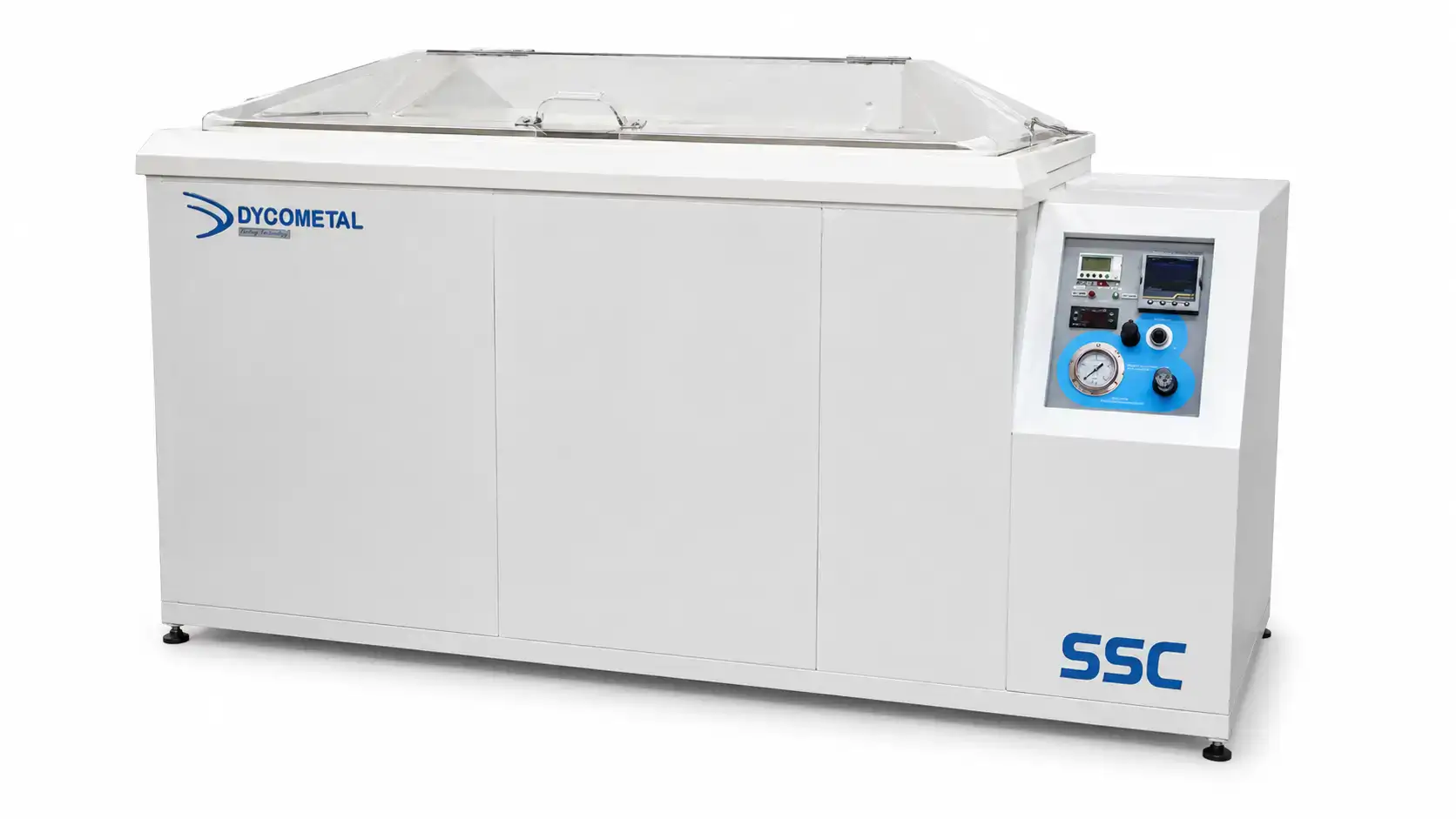

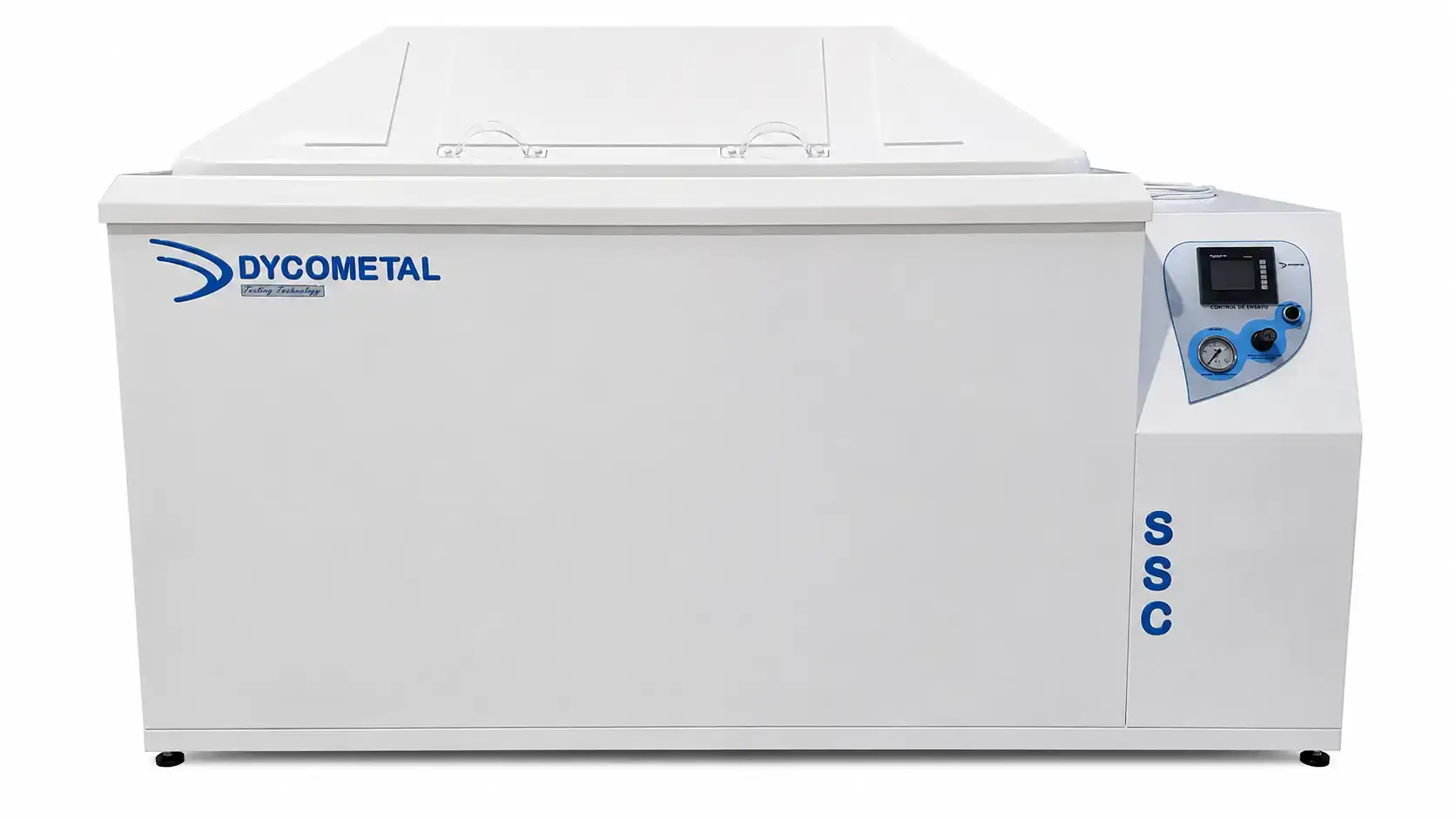

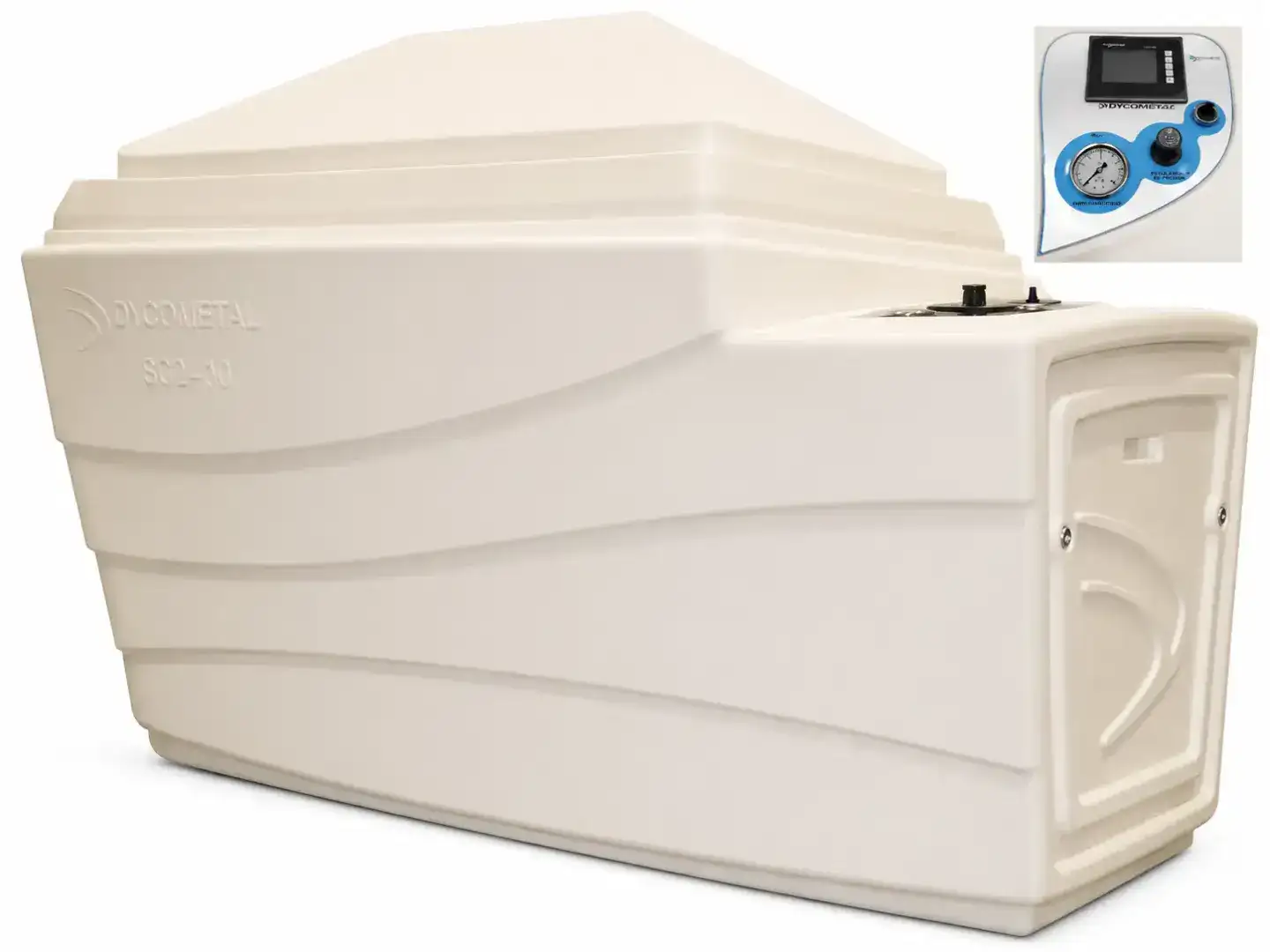

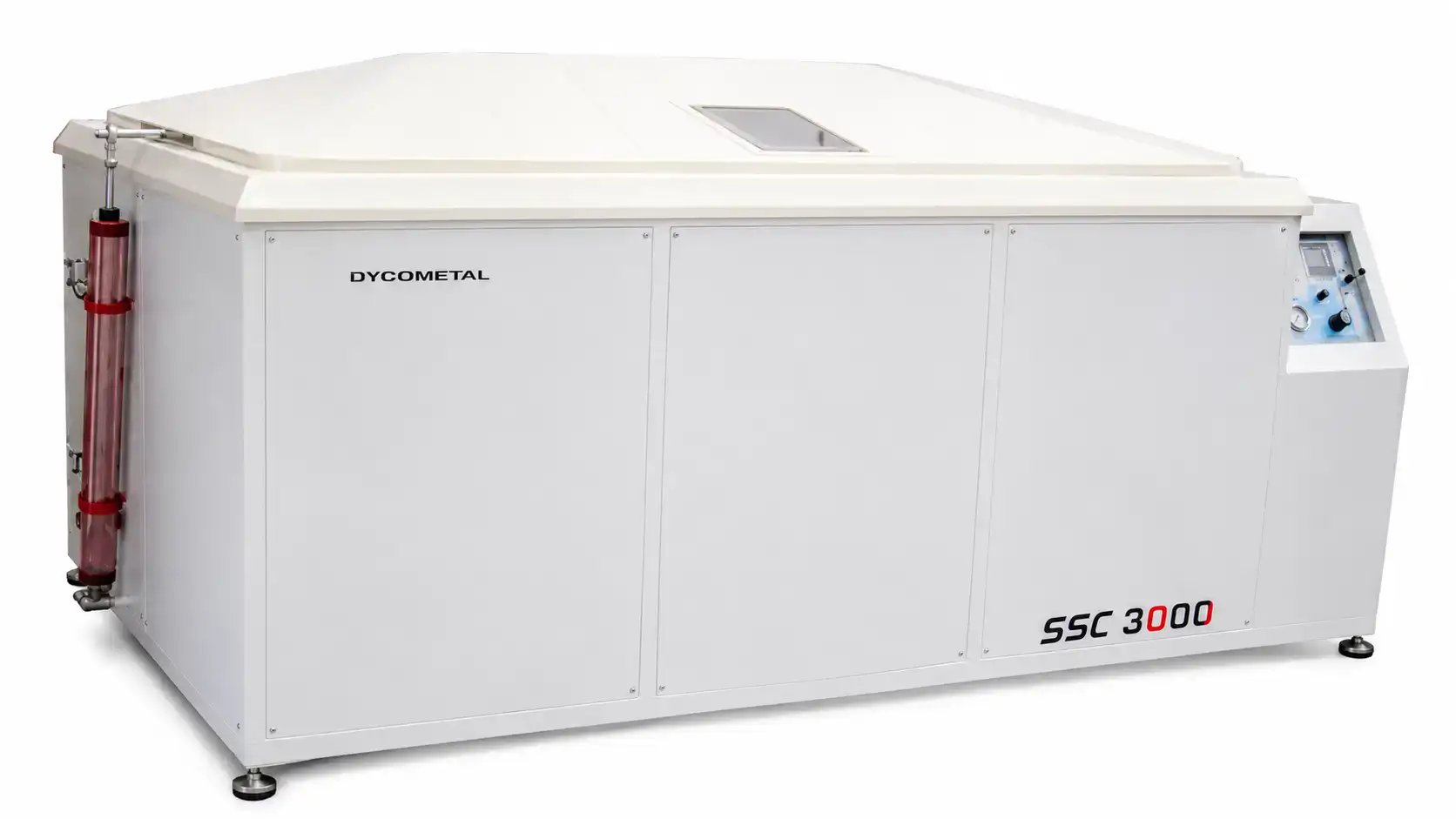

The SSC Series salt spray corrosion test chambers are systems designed to perform accelerated corrosion testing on materials, coatings, components and products intended for industrial and research applications.
The SSC Series makes it possible to reproduce the action of salt spray in a controlled and repeatable way, allowing the corrosion resistance of treated surfaces and materials exposed to aggressive environments to be evaluated. The chambers are developed to perform tests in accordance with major international standards, including ASTM B117, ISO 9227, DIN 50021 and JIS Z 2371.
SSC configurations are used in numerous sectors, including automotive, aerospace, railway, surface treatments, paints and coatings, industrial components and metallic materials, for development, qualification, validation and quality-control activities.
The system integrates temperature management, salt-solution atomization and control of the main process parameters, allowing reliable and continuous test cycles to be performed even under intensive operating conditions.
They are designed to provide:
- controlled simulation of corrosive saline atmospheres;
- accelerated corrosion testing;
- high spray uniformity;
- precise control of test temperature;
- extreme humidity conditions up to saturation;
- repeatability and stability of the test cycle;
- suitability for testing according to international standards;
- acquisition and control of the main process parameters;
- configurations dedicated to different types of samples;
- continuous operation for laboratory testing and industrial validation activities.
- type: salt spray corrosion test chambers;
- available usable volumes: from 140 L to 2,000 L;
- operating temperature: from ambient temperature up to +50 °C;
- relative humidity: up to 100% RH;
- available tests: salt spray corrosion testing according to ASTM B117, ISO 9227, DIN 50021, JIS Z 2371;
- internal chamber: made of fiberglass and polyester resin;
- external structure:stainless steel;
- upper cover: made of inclined methacrylate, designed to prevent direct dripping onto the samples;
- spray system: uniform and low-consumption salt-solution atomization;
- sealing: ensured by a hydraulic seal;
- control: panel with regulation of temperature, pressure and water level;
- internal equipment: sample support bars;
- temperature sensor: high-precision probe.
Configurable Data
The values shown represent reference technical configurations. Usable volume, operating temperature, spray method, internal configuration, sample-holding accessories, control systems and optional equipment may vary depending on the selected model and specific testing requirements.
SSC Series chambers can also be configured with dedicated accessories, data-recording systems, special internal layouts and integrated solutions for combined tests or specific regulatory requirements.
- Configurations for SWAT tests

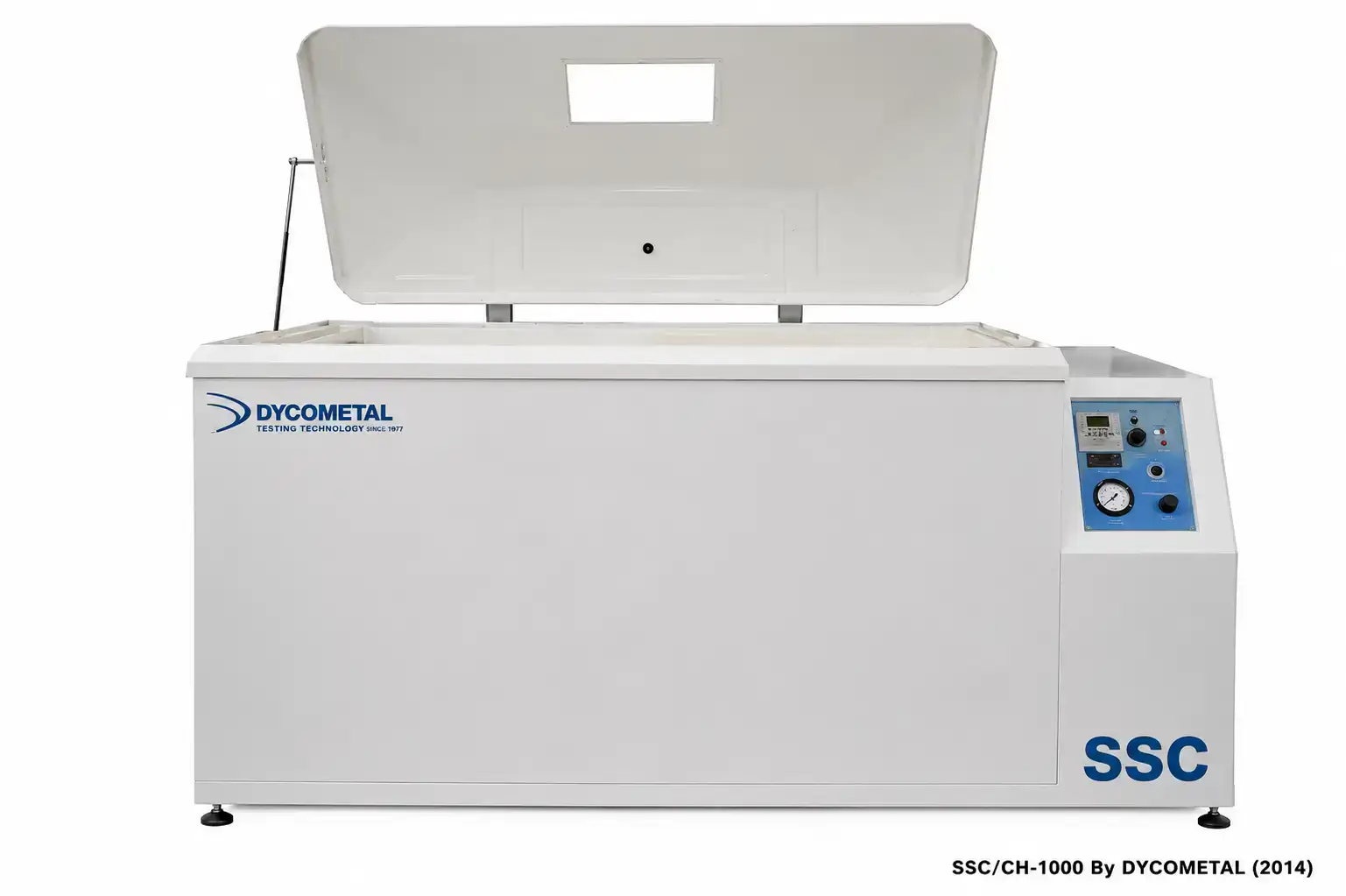

- Configurations for combined SSC / CH tests
- Configurations for combined tests with a humidostatic phase
- Special sample racks
- 200 L salt-solution reserve tank
- Rain gauges for monitoring precipitates
- Pneumatic hatch-opening system
- Data-recording unit for temperature and humidity
- Dedicated sample supports and positioning systems
- Additional instrumentation for test monitoring
- Customized configurations according to sample and test procedure
Note: available options and accessories may vary depending on chamber volume, test methodology and specific application requirements.
