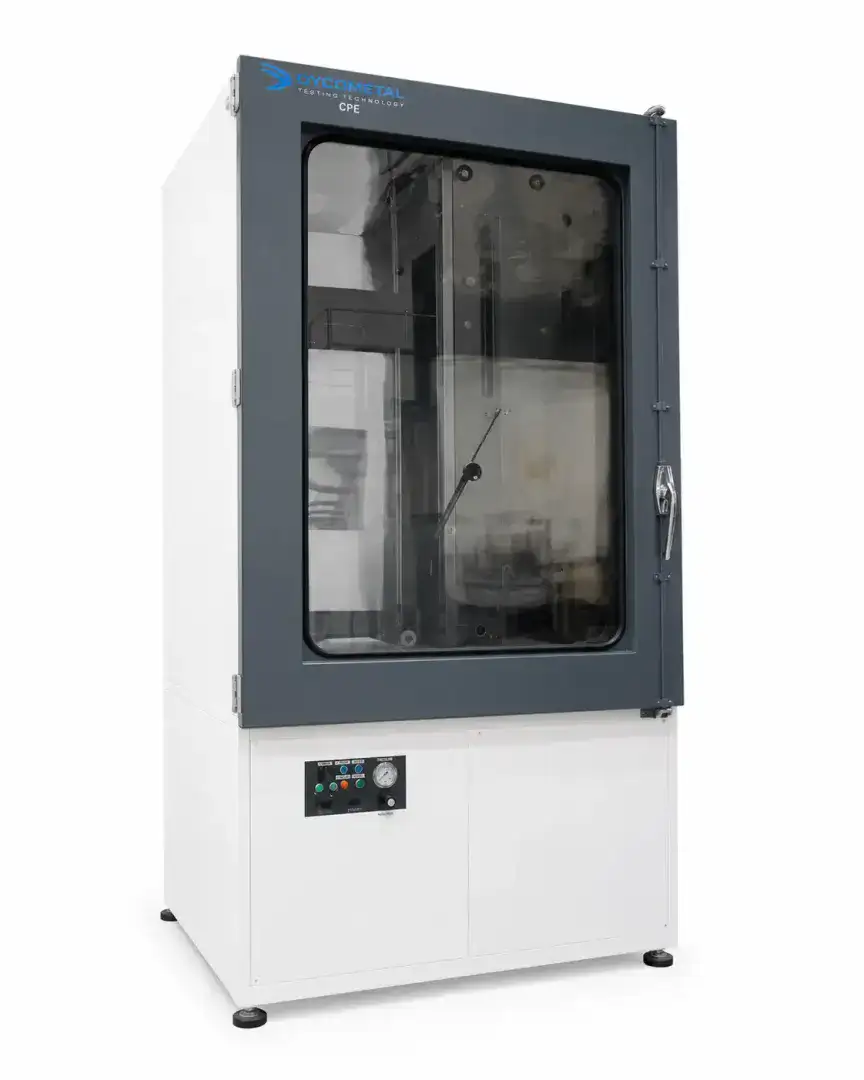

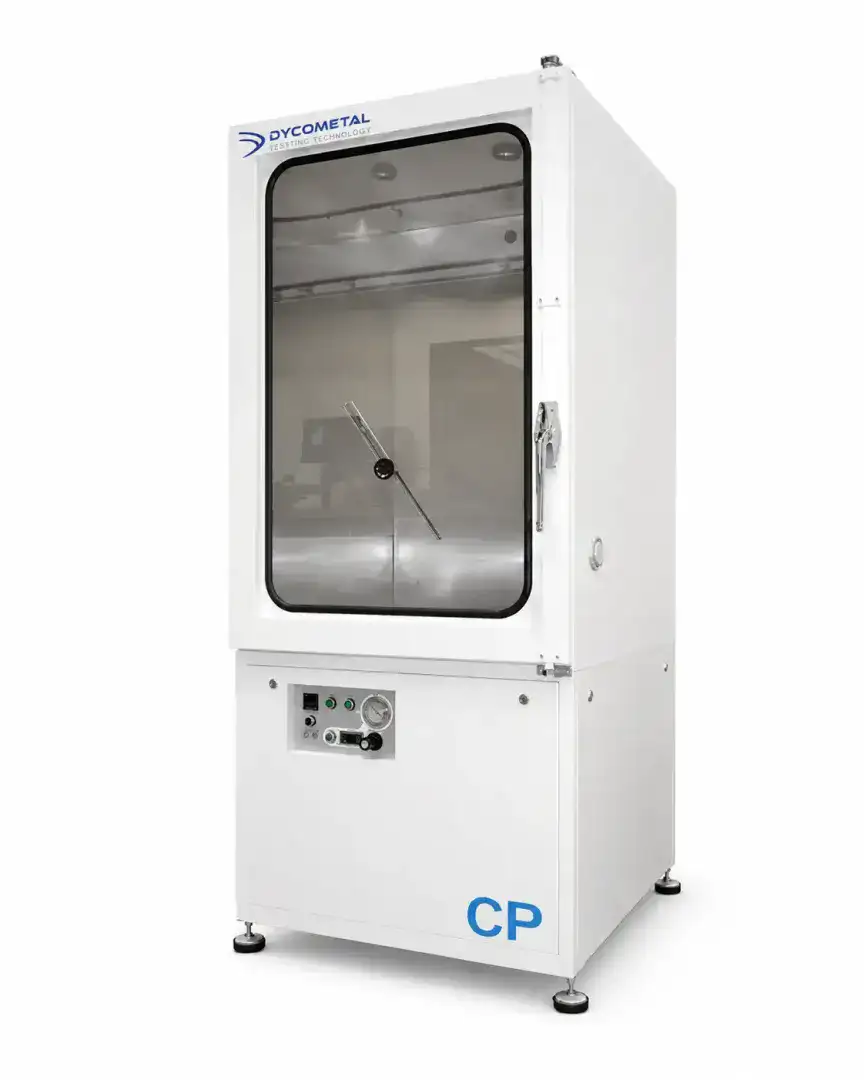

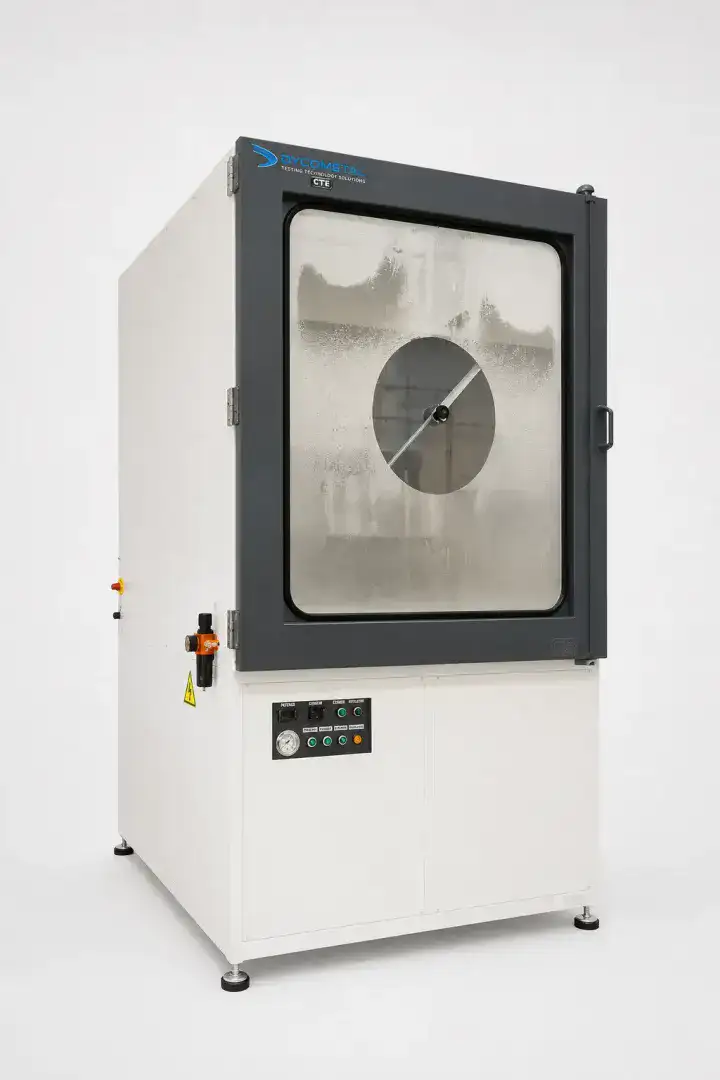

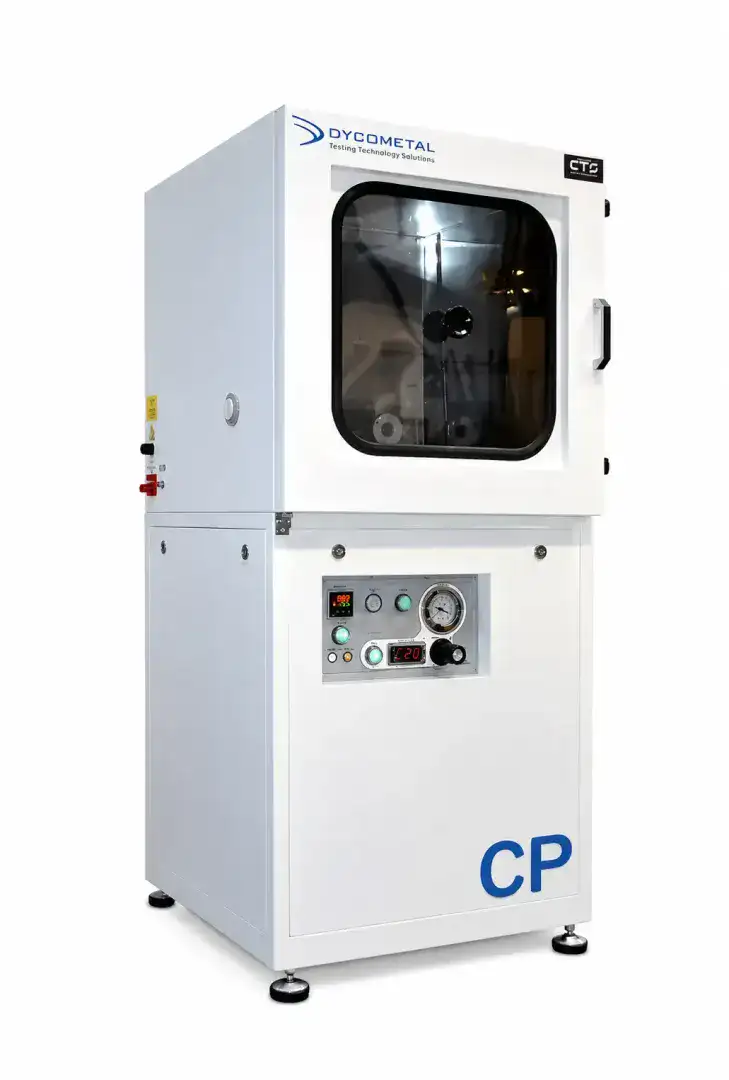

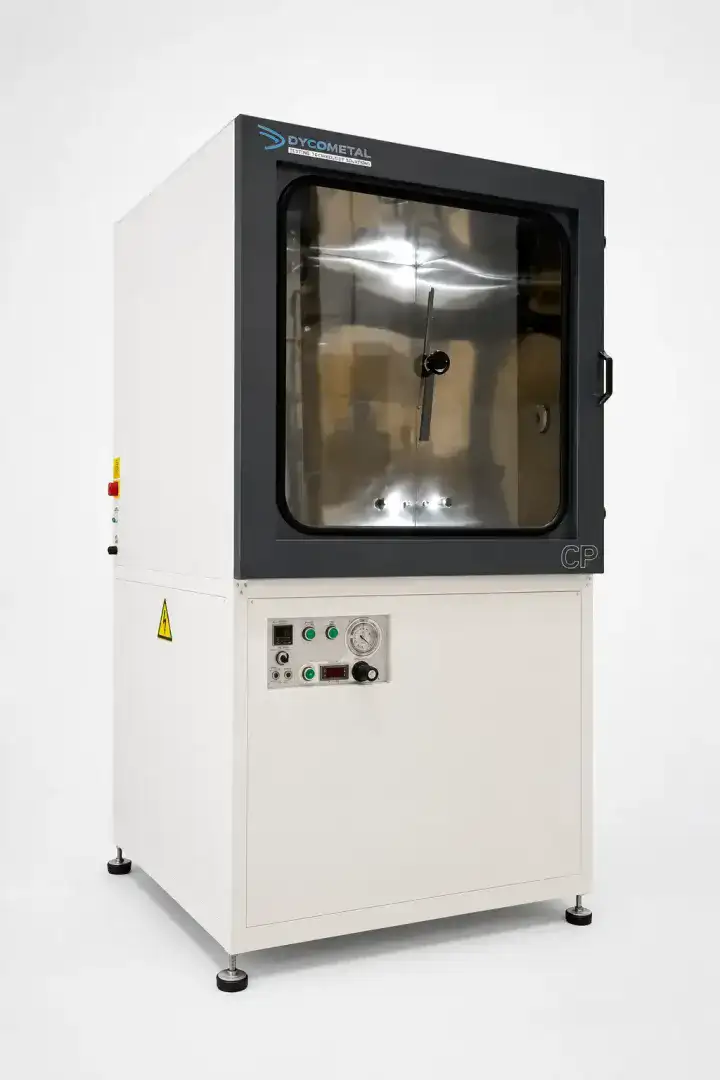

The CP Series dust test chambers are systems designed to verify the degree of protection of components, enclosures and equipment against the ingress of solid particles, through controlled dust exposure testing.
The tests make it possible to evaluate product resistance to solid agents according to the IP XY classification, where the first digit identifies the level of protection against the ingress of solid objects and dust. Test conditions are defined according to particle size, the required methodology and the characteristics of the component under test.
CP chambers keep dust in suspension through compressed air, a fan or dedicated recirculation systems, creating controlled and repeatable conditions inside the test chamber.
They are particularly suitable for testing street lighting systems, traffic lights, automotive lighting and signalling components, electrical and electronic safety devices, electrical panels, junction boxes, reflectors and industrial components.
They are designed to provide:
- controlled exposure of the sample to dust;
- verification of protection against the ingress of solid particles;
- uniform dust suspension and recirculation;
- stable and repeatable test conditions;
- pressure monitoring during testing;
- cycle programming and counting;
- high accessibility and visibility of the test chamber;
- configurations adaptable to DUT dimensions and characteristics;
- use for qualification, validation and quality-control activities.
- type: chambers for dust ingress and resistance testing;
- application: verification of protection against solid particles according to the IP classification;
- available usable volumes: from 512 to 8,000 L;
- dust suspension: by compressed air or fan;
- dust recirculation: by dedicated circulation pump;
- working surface:AISI 304 (18/8) stainless steel;
- door: glass door with frame;
- door cleaning system: dedicated cleaning brush;
- technical access port:80 mm;
- internal lighting: integrated;
- pressure measurement: pressure gauge;
- cycle management: cycle counter;
- configurations: available in different volumes and dimensions;
- applications: testing laboratories, R&D, quality control and industrial environments.
Configurable Data
The values shown represent reference technical configurations. Usable volume, dimensions, dust suspension and recirculation system, chamber accessibility, measuring systems, internal supports, interfaces and accessories may vary depending on the selected model and specific testing requirements.
CP Series chambers can also be configured with solutions dedicated to DUT dimensions, particulate type, test methodology and required standards, allowing the platform to be adapted to different IP protection verification applications.
- Customized solutions and dimensions
- Height-adjustable sample trays
- Dedicated DUT support systems
- Specific configurations according to the test methodology
- Accessories for testing according to SAE J575
- Configurations for performing SAE J575 and EN 60529 tests in the same chamber
- Additional technical feedthroughs
- Additional instrumentation for test monitoring
- Dedicated systems and accessories according to component characteristics
Note: available options and accessories may vary depending on chamber volume, DUT characteristics and the required test standard or procedure.
