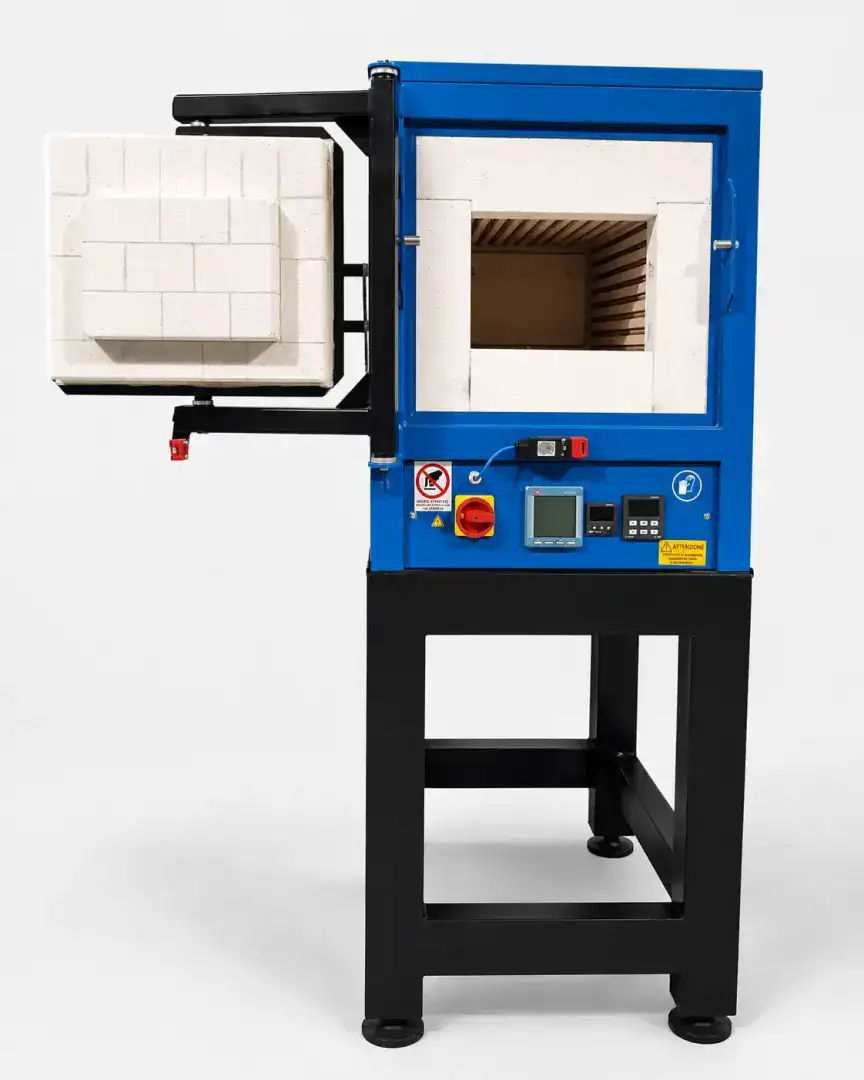

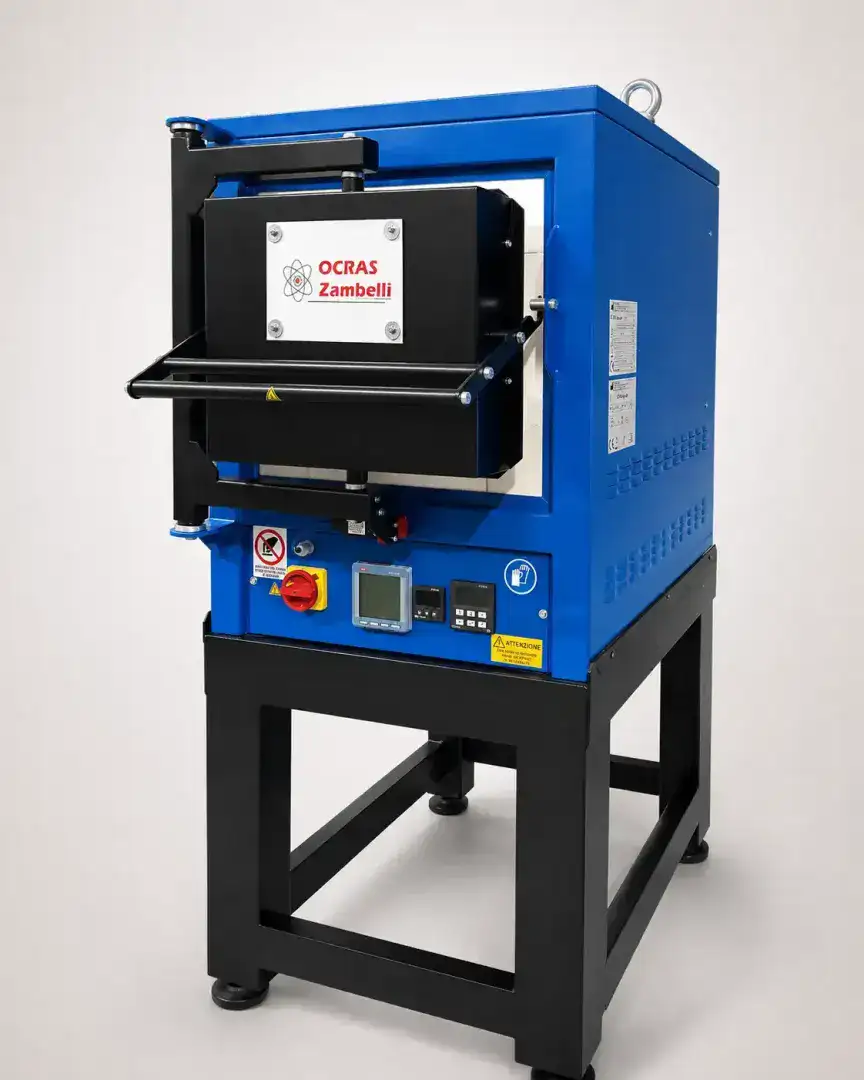

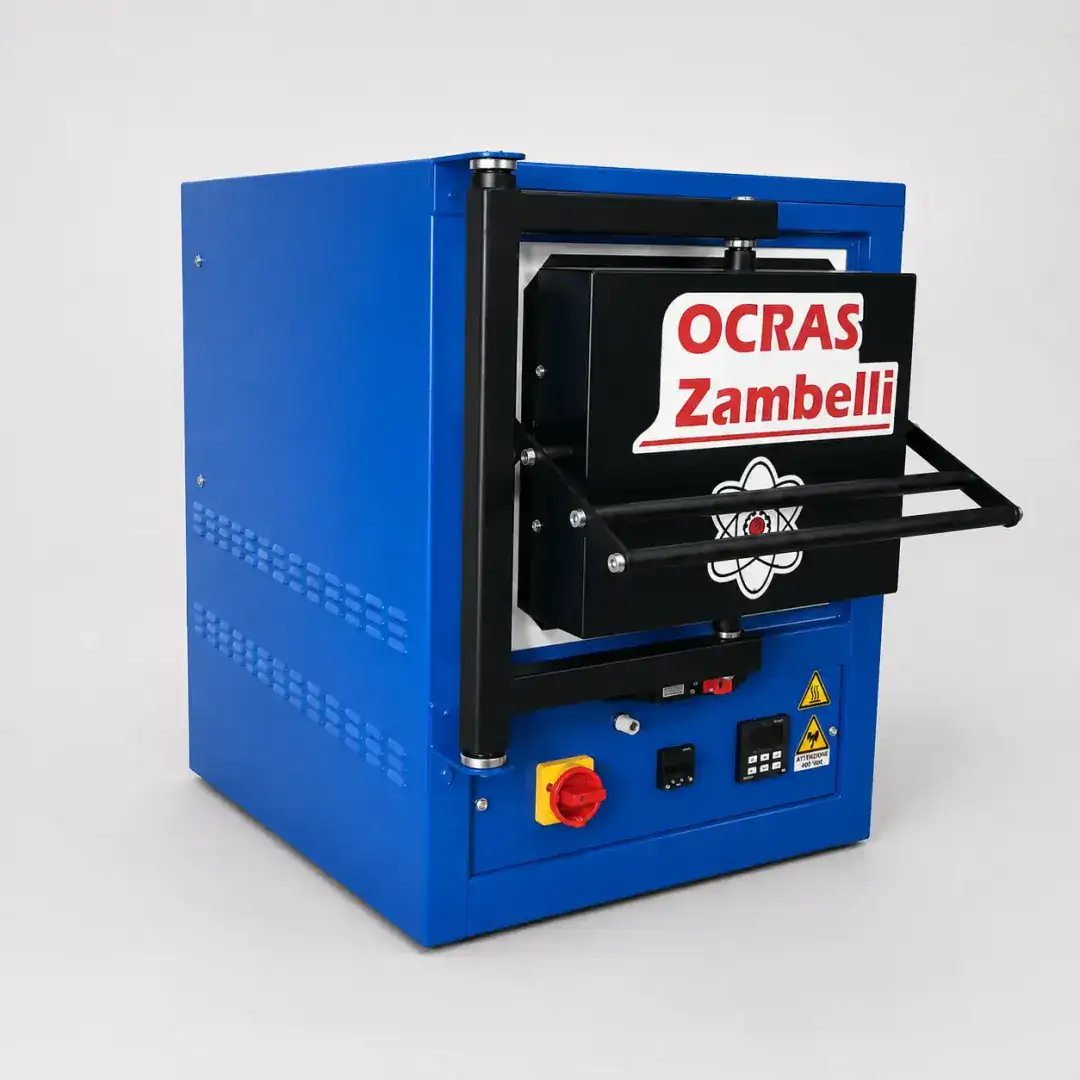

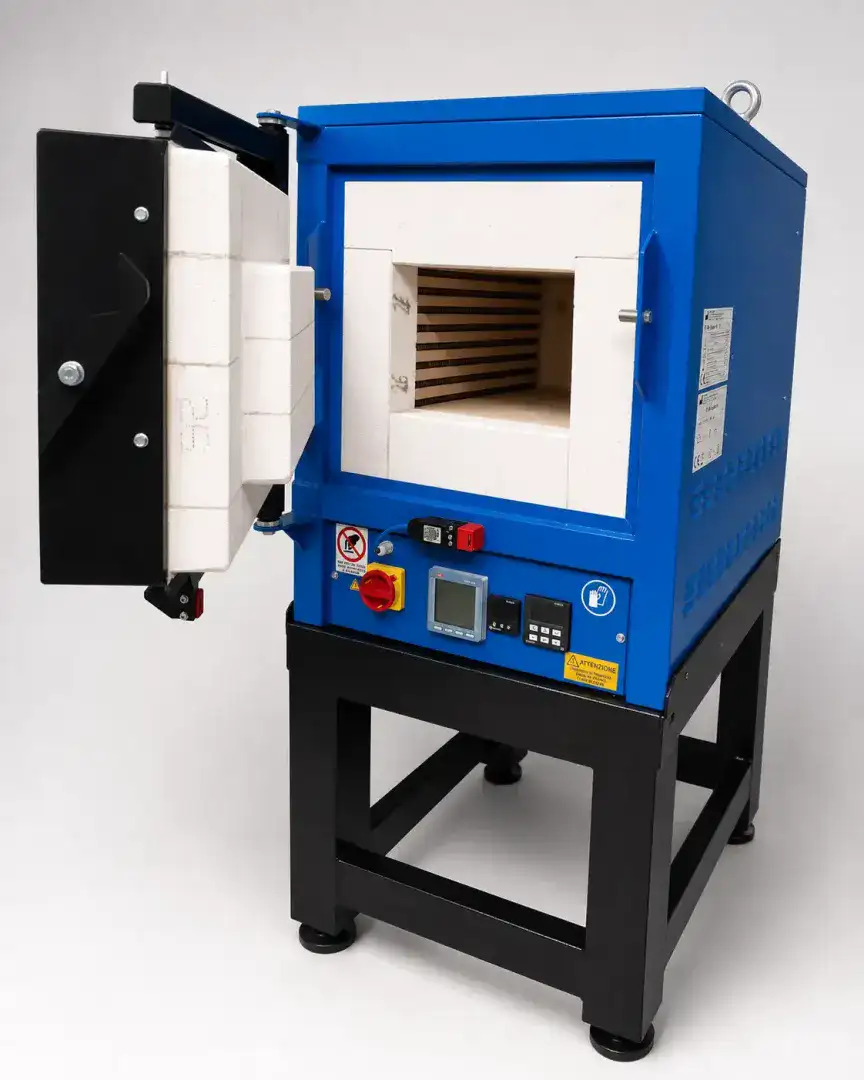

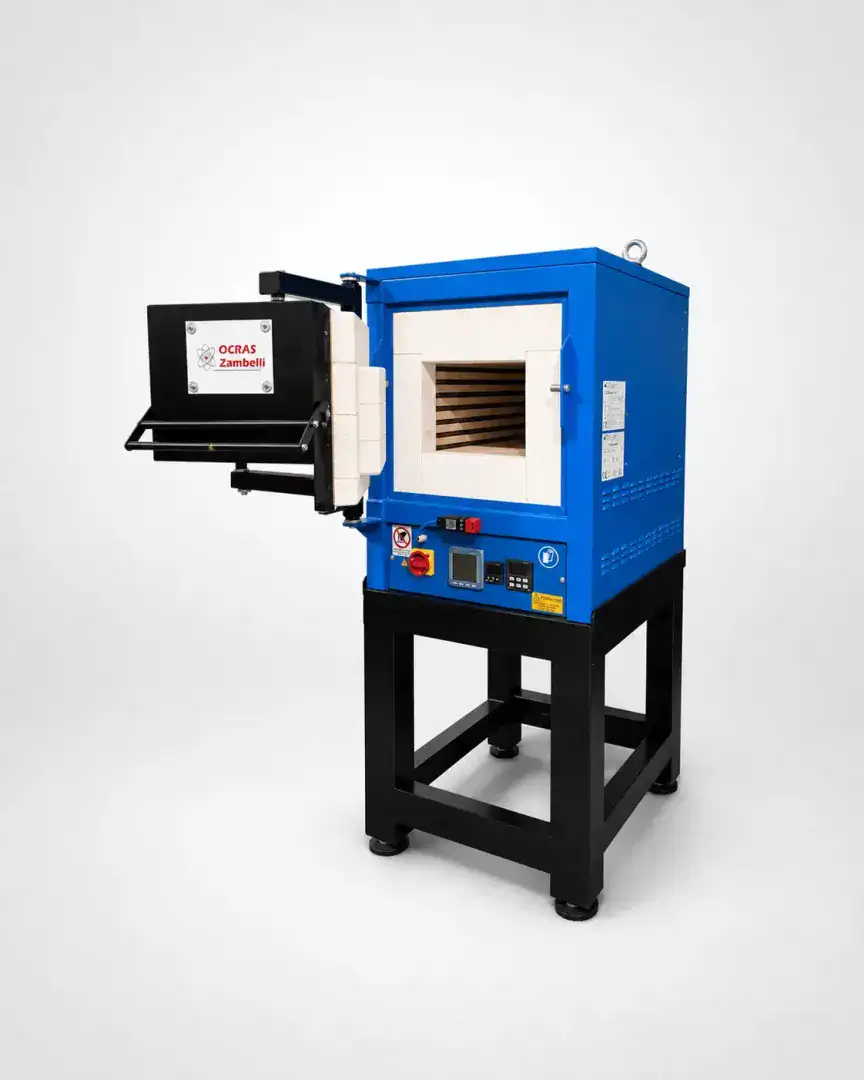

The Z Series muffle ovens are electric systems designed for high-temperature heat treatment in research, educational, industrial and analytical laboratories.
The ovens are heated on all four sides of the chamber by a complete muffle fitted with heating elements, a solution developed to ensure maximum temperature uniformity inside the working chamber. Some configurations are designed to operate continuously at temperatures up to 1200 °C.
The structure integrates dedicated safety devices to protect both the operator and the electrical system, including a safety microswitch and thermal-magnetic protection, together with a digital temperature control system.
The ovens can be equipped with programming and timing systems, allowing automatic management of temperature profiles, switch-on and switch-off according to the required process.
They are designed to provide:
- operating temperatures up to 1200 °C;
- uniform heating on all four sides of the chamber;
- digital temperature control;
- high reliability for laboratory applications;
- protection of both operator and electrical system;
- programmable cycles depending on configuration;
- automatic switch-on and switch-off management;
- different configurations according to temperature and application requirements.
- type: electric laboratory muffle furnaces;
- series: Z;
- maximum temperature: up to 1100 °C or 1200 °C, depending on model;
- heating system: four-side heating through a complete muffle fitted with heating elements;
- control: digital temperature controller;
- power regulation: solid-state control unit;
- frequency:50–60 Hz;
- power supply: single-phase or three-phase depending on model;
- installed power: from 2.6 kW to 4.2 kW, depending on configuration;
- safety: microswitch and thermal-magnetic protection;
- programming: temperature programmer available on request;
- timing: daily or weekly timer available;
- automatic switch-on/switch-off: available according to configuration;
- weight: approximately 83 kg for the documented models.
Z Series Models
| MODEL | MAX TEMPERATURE | POWER | POWER SUPPLY | INTERNAL DIMENSIONS (D × W × H) | EXTERNAL DIMENSIONS (D × W × H) |
|---|---|---|---|---|---|
| Z-A | 1100 °C | 3.9 kW | 110–230 V single-phase / 380 V three-phase | 320 × 210 × 145 mm | 650 × 500 × 650 mm |
| Z-B | 1100 °C | 3.6 kW | 110–230 V single-phase | 280 × 210 × 145 mm | 650 × 500 × 650 mm |
| Z-300 | 1100 °C | 3.0 kW | 230 V single-phase | 300 × 145 × 100 mm | 650 × 500 × 650 mm |
| Z-1200 | 1200 °C | 2.6 kW | 230 V single-phase | 250 × 145 × 100 mm | 650 × 500 × 650 mm |
| Z-B/R | 1200 °C | 4.2 kW | 230 V single-phase | 280 × 210 × 145 mm | 650 × 500 × 650 mm |
Configurable Data
The values shown represent reference technical configurations. Maximum temperature, internal dimensions, installed power, power supply, programming system and accessories may vary depending on the selected model and specific process requirements.
The Z Series muffle ovens can also be configured with dedicated programming and timing systems to adapt the thermal cycle to the requirements of the application.
- Temperature programmer
- Daily timer
- Weekly timer
- Automatic programmed switch-on
- Automatic programmed switch-off
- Configurations dedicated to the required maximum temperature
- Specific solutions according to application requirements
Note: available options may vary depending on the model, operating temperature and selected electrical configuration.
