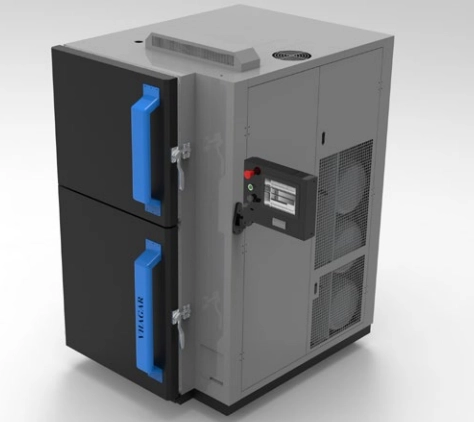

The VHAGAR thermal shock chambers are designed to perform rapid and repeated temperature variation tests on components, materials and devices, exposing specimens to extreme thermal conditions in a controlled and repeatable way.
The platform is available in two configurations:
- 2-chamber dynamic configuration, with a hot zone and a cold zone and automatic specimen transfer by means of a basket;
- 3-chamber static configuration, with a hot zone, a cold zone and a separate test area where the specimen remains stationary while hot and cold airflows are alternated.
The 3-chamber configuration is particularly suitable when the device under test must remain electrically, hydraulically or otherwise connected to external services throughout the test cycle.
The VHAGAR range covers useful volumes from 42 to 450 litres and can be configured for minimum temperatures down to −75 °C and maximum temperatures up to +200 °C, depending on the selected version.
Are designed to ensure:
- rapid transitions between high- and low-temperature conditions;
- high repeatability of thermal shock cycles;
- precise control of the different thermal zones;
- automatic management of test sequences;
- high stability of test conditions;
- possibility of starting the cycle from either the hot or cold zone;
- integration with sensors and external devices;
- monitoring, data logging and remote supervision;
- dedicated protection and safety systems.
VHAGAR chambers are particularly suitable for automotive, e-mobility, electronics, microelectronics, aerospace, defence, railway, telecommunications, industrial components and R&D laboratories.
The configurable design allows each system to be defined according to the specimen volume, thermal mass, required temperature ranges, transfer times, DUT connection requirements, number of cycles and specific application needs.
- Available configurations: 2-chamber dynamic / 3-chamber static;
- useful volume: from 42 L to 450 L;
- temperature range: configurable down to −75 °C / up to +200 °C;
- low-temperature versions: −45 °C, −55 °C and −75 °C;
- specimen transfer – 2 chambers: up to ≤ 10 s;
- test-zone stabilisation – 3 chambers: up to ≤ 5 min;
- control accuracy: up to ±0.5 °C;
- temperature uniformity: up to ±2.5 °C;
- test chamber: SUS 304 stainless steel;
- insulation: high-density polyurethane and rock wool;
- refrigeration: two-stage / cascade system;
- cooling: water-cooled, with air-cooled configuration available;
- control: 10" DOT Touch Panel with proprietary CliMaLogic® software;
- connectivity: Ethernet, data logging and remote supervision.
Available Models
VHAGAR – 2 Chambers
| MODEL | USEFUL VOLUME | CONFIGURATION | TEMPERATURE RANGE |
| VAGHAR 42 | 42 L | 2-chamber dynamic | down to −75 / up to +200 °C |
| VAGHAR 80 | 80 L | 2-chamber dynamic | down to −75 / up to +200 °C |
| VAGHAR 150 | 150 L | 2-chamber dynamic | down to −75 / up to +200 °C |
| VAGHAR 200 | 200 L | 2-chamber dynamic | down to −75 / up to +200 °C |
| VAGHAR 300 | 300 L | 2-chamber dynamic | down to −75 / up to +200 °C |
VHAGAR – 3 Chambers
| MODEL | USEFUL VOLUME | CONFIGURATION | TEMPERATURE RANGE |
| VAGHAR 42 | 42 L | 3-chamber static | down to −75 / up to +200 °C |
| VAGHAR 80 | 80 L | 3-chamber static | down to −75 / up to +200 °C |
| VAGHAR 100 | 100 L | 3-chamber static | down to −75 / up to +200 °C |
| VAGHAR 150 | 150 L | 3-chamber static | down to −75 / up to +200 °C |
| VAGAHR 300 | 300 L | 3-chamber static | down to −75 / up to +200 °C |
| VAGHAR 450 | 450 L | 3-chamber static | down to −75 / up to +200 °C |
Configurable Data
The values shown represent reference technical configurations. Useful volume, dimensions, temperature range, transfer and stabilisation times, refrigeration system, cooling method, interfaces and performance are defined according to the specimen characteristics, test cycle and the customer’s specific requirements.
