The CLL Series rain exposure test chambers are systems designed to verify the resistance of components, enclosures and equipment to water ingress and water exposure, through controlled testing dedicated to IP protection verification.
The chambers make it possible to reproduce different rain and water-jet conditions, allowing product sealing performance and behaviour during exposure to be evaluated in a stable and repeatable way.

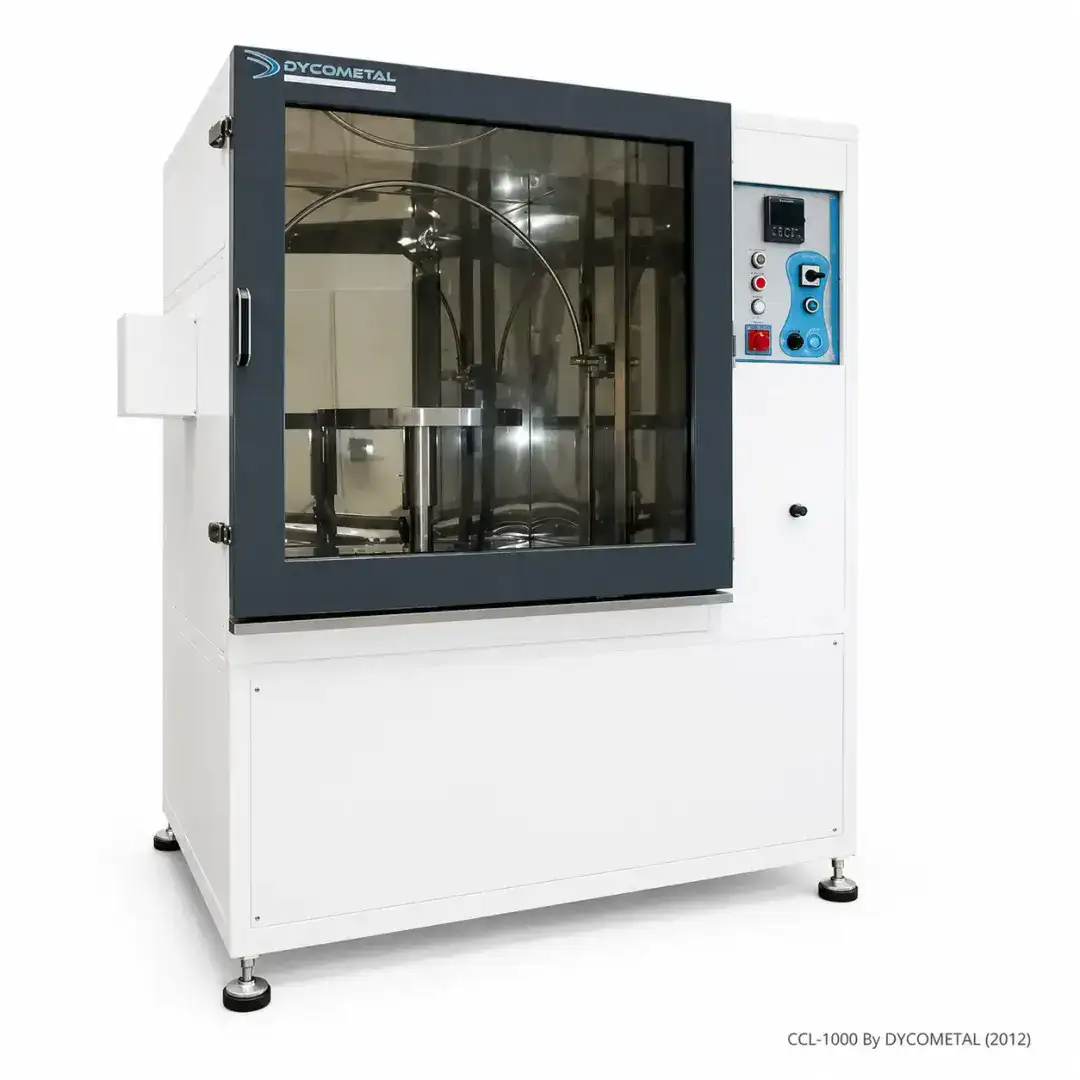

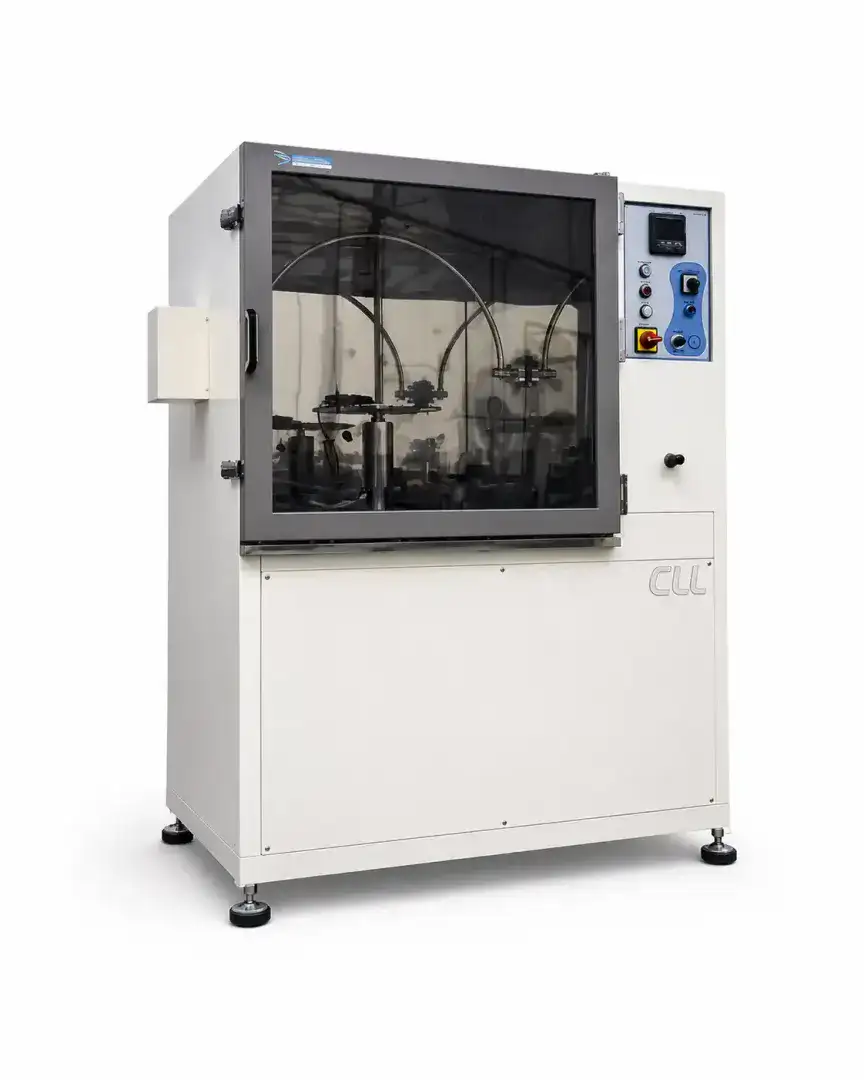

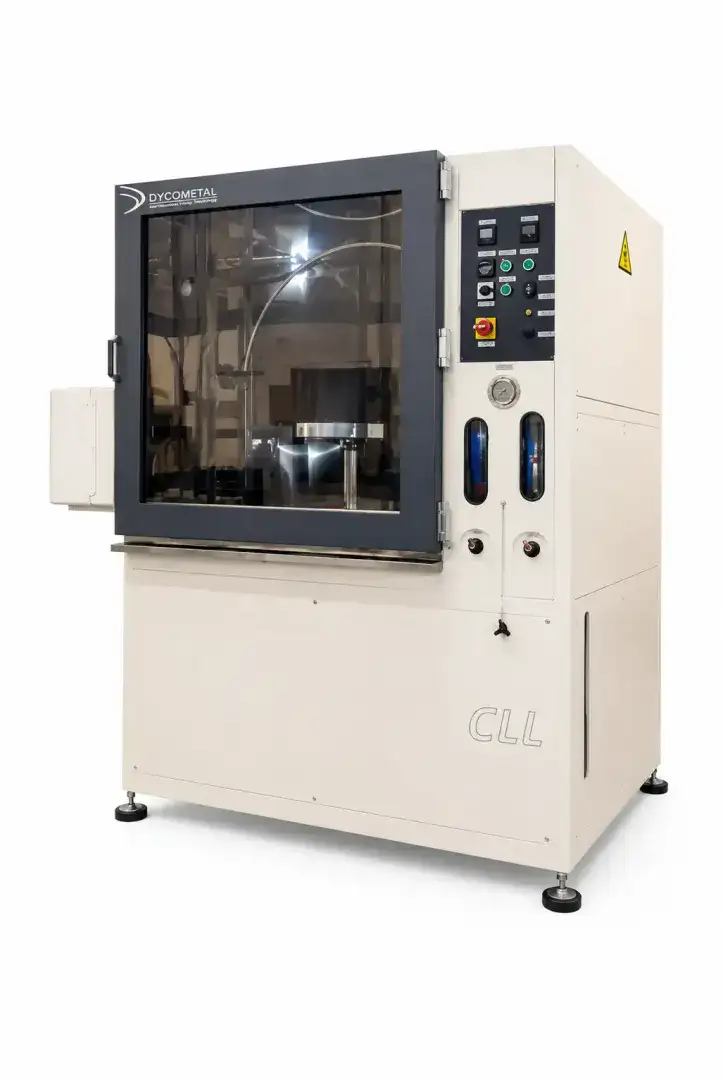

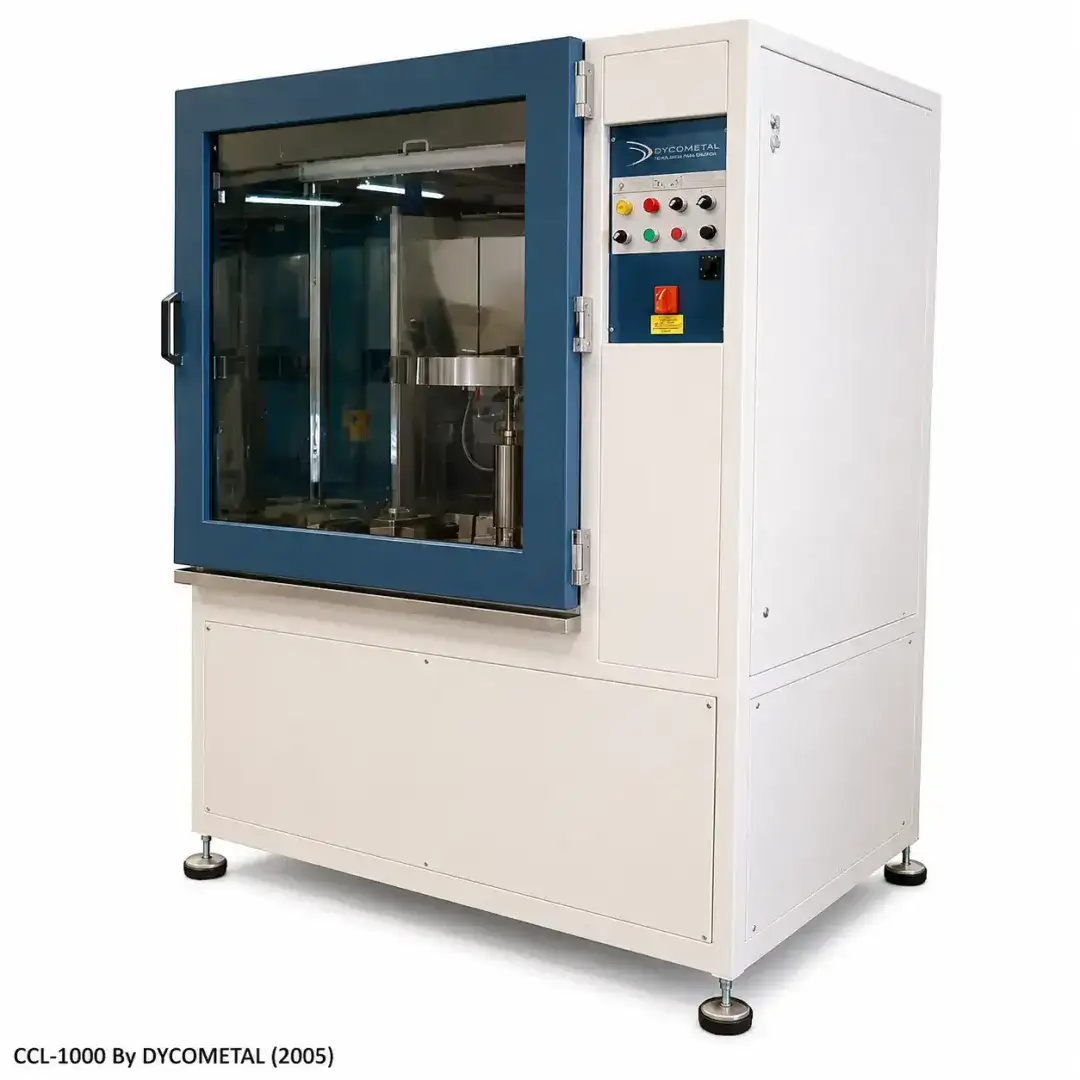

The CLL Series integrates a fixed and oscillating test arc, a rotating sample platform with adjustable height and speed, and a closed-loop water management circuit. This configuration allows the test to be adapted to DUT dimensions and the required test methodology.
The chambers are intended for qualification, validation and quality-control activities in the automotive, electronics, electrical engineering, lighting, industrial components and other sectors where water protection must be verified.
They are designed to provide:
- controlled DUT exposure to water;
- simulation of different rainfall conditions;
- verification of protection against water ingress;
- adjustable test arc;
- controlled sample movement;
- water flow and pressure control;
- closed-loop water recirculation;
- high accessibility and visibility of the test chamber;
- stable and repeatable test conditions;
- configurations dedicated to different test methodologies.
- type: chambers for rain exposure and water resistance testing;
- series:CLL;
- available usable volumes: from 512 to 1,000 L;
- application: verification of the degree of protection against water ingress;
- test chamber:AISI 316 (18/8) stainless steel;
- test arc: fixed and oscillating;
- arc adjustment: adjustable position from 0° to 350°;
- sample platform: rotating;
- platform adjustment: adjustable height and rotation speed;
- external structure: steel painted RAL 9010;
- door: fitted with framed observation window;
- door sealing: flexible silicone gasket;
- supports: 4 silent blocks;
- technical feedthrough:Ø 80 mm;
- water circuit: closed-loop recirculation circuit;
- flow measurement: precision rotameter with regulating valve;
- pressure measurement: pressure gauge with pressure regulation;
- control: ergonomically positioned control panel;
- test configurations: different IP protection levels according to the selected accessories and test methodology.
Configurable Data
The values shown represent reference technical configurations. Usable volume, dimensions, test-arc geometry, spray method, sample platform, water flow and pressure, technical feedthroughs, control systems and accessories may vary depending on the selected model and specific testing requirements.
CLL Series chambers can also be configured with dedicated systems according to DUT dimensions and geometry, the required protection level and the applicable test standard or procedure.
- Customized solutions and dimensions
- Drop box for tests corresponding to protection levels 1 and 2
- Dedicated nozzles for IPX5
- Dedicated nozzles for IPX6
- Dedicated nozzles for IPX6K
- Accessories for testing according to JIS 0203
- Accessories for R1 and R2 – shower tests
- Accessories for S1 and S2 – rain tests
- Accessories for testing according to DIN 40050 Part 9
- Dedicated configurations for IPX4K
- Customized support and positioning systems
- Configurations dedicated to DUT characteristics
- Additional instrumentation for flow and pressure monitoring
Note: available options and accessories may vary depending on chamber volume, DUT characteristics, the protection level to be verified and the required test procedure.
