CLIMATIC CHAMBER – DRACARYS SERIES

Extreme environmental testing, state-of-the-art technology

The DRACARYS series is designed to simulate the most critical temperature and humidity conditions, faithfully replicating what products will face during their real-life cycle. Perfect for the automotive, aerospace, military, battery, and advanced electronics sectors, it enables ESS (Environmental Stress Screening), solar simulation, integrated test benches, and much more.

Key Features


• Available volumes: 80 L – 1 500 L

• Temperature range: −70 °C to +180 °C

• Sub‑ranges: A:+25 °C | B:0 °C | C:−20 °C | D:−40 °C | E:−50 °C | F:−60 °C | G:−70 °C

• Controlled humidity: 10 % – 98 % RH

• Relative‑humidity range: 20 %‑98 % RH (optional 10 %‑98 % RH or 5 %‑98 % RH)

• Climatic operating field: +10 °C to +90 °C

• Climatic stability / uniformity: ±0.1 °C ; ±1 % RH

• Sensor accuracy / uniformity (T / RH): 0.01 °C ; ±0.19 % RH ; ±1.0 °C ; ±3.0 % RH

• System accuracy / stability (T / RH): ±1.0 °C ; ±2.0 % RH

• Mean unloaded variation rate in accordance with IEC 60068‑3‑5

• Compressor brands: Copeland / Bitzer

• Power supply: 400 V ±10 % · 50 Hz · 3 + N + G

• Custom versions: on request

Standard Equipment


• External / internal materials: galvanised‑steel frame painted RAL 9005 / 7042 / 7201 / 5005, textured finish; inner tank in 304 stainless steel

• Insulation: high‑density polyurethane foam + rock wool

• Condensing type: air‑cooled / water‑cooled condenser

• Control system: DOT 10″ Touch Panel with “ClimaLogiC” software

• Remote supervision via GSM router with remote‑support service included

• Data logging, test‑profile storage and full parameter management

• Ethernet & USB ports for export and remote control

• Smart alarm system with multi‑user safety

• Optimised air circulation for climatic uniformity

• Inspection window, internal lighting and ergonomic door

• High‑precision capacitive sensor

• Castors / adjustable feet, Ø 80 mm port, 2 stainless‑steel shelves

• Air‑ or water‑cooled condensing unit with F‑Gas‑compliant refrigerants

• Multi‑chamber remote control

Available Options


• Additional feed‑throughs, electric latches, door gloves

• Custom specimen racks / shelves

• F‑Gas‑compliant refrigerant blends

• Sound‑proofing kit: noise reduction up to 3 dB(A)

• EUCAR abuse‑test bench for Li‑ion batteries (thermal, electrical & mechanical abuse)

• Safety Glycol package: ethylene‑glycol cooling with leak sensors and automatic shut‑off

• Solar simulation, multi‑colour visual alarms, remote units

• Cryogenic kits, dry‑air purge, additional dryers & humidifiers

• Digital / analogue I/O, safety thermostats, special valves

• Demineralised‑water treatment & management

Reliability, precision, and versatility make the DRACARYS series the ideal choice for those who demand maximum performance in any environmental condition.

Discover how to configure it to meet your most challenging test requirements.

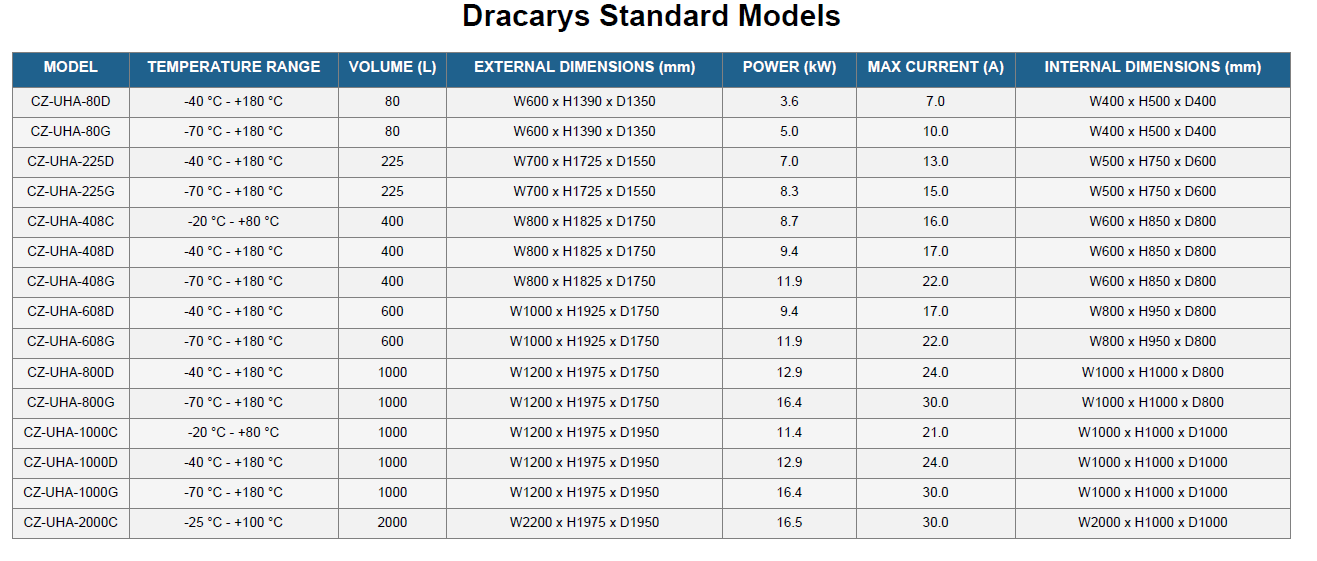

NB:The EXTERNAL and INTERNAL dimensions are given in the format W × H × D mm (W = width, H = height, D = depth).
