VIBERION

VIBERION – Climatic and Vibration Chambers

VIBERION is a line of climatic chambers designed for high-intensity environmental testing, also in combination with vibration. Ideal for applications in electronics, aerospace, automotive, and telecommunications, it complies with stringent standards such as MIL‑STD 781 and MIL‑STD 883.

Main features



• Available volumes: 80 L – 1 500 L

• Temperature range: −70 °C to +180 °C (A:+25 °C | B:0 °C | C:−20 °C | D:−40 °C | E:−50 °C | F:−60 °C | G:−70 °C)

• Extreme temperatures: −70 °C to +180 °C

• Controlled humidity: 10 % – 98 % RH

• Relative‑humidity range: 20 % – 98 % RH (option 10 % – 98 % RH or 5 % – 98 % RH)

• Climatic operating field: +10 °C to +90 °C

• Climatic stability / uniformity: ±0.1 °C ; ±1 % RH

• Sensor precision / uniformity (T / RH): 0.01 °C ; ±0.19 % RH ; ±1.0 °C ; ±3.0 % RH

• Accuracy / stability (T / RH): ±1.0 °C ; ±2.0 % RH

• Average temperature‑change rate (empty) per IEC 60068‑3‑5

• Compressor brands: Copeland / Bitzer

• Power supply: 400 V ±10 % · 50 Hz · 3 + N + G

• Customisable versions: on request


Construction Features


• Interior made of AISI 304 stainless steel and exterior of painted steel

• Reinforced and interchangeable floor for vibration testing

• Large front door, silicone gaskets, and internal lighting

Technical Specifications

• Temperature range: from −70 °C to +180 °C (extendable to +200 °C)

• Temperature control: ±0.1 °C – stability ±1 °C

• Humidity control: 10%–98% RH – stability ±3% RH

Control System

• PLC with multilingual touch screen and Ethernet interface

• Real-time graphical display

• Advanced programming (up to 350 segments)

• Logging, graphing, data export in ASCII/Excel formats

Sustainability

• Use of low‑GWP refrigerants: R‑449A, R‑452A, R‑448A, R‑472B, R‑454C

• Eco‑friendly solutions compliant with EU F‑Gas regulations


Available Options

• Dehumidification kit, additional sensors, adjustable fans

• Mobile floors for vibration systems

• UPS for PLC, auxiliary contacts, portholes, shelves, water-cooled conditioners

VIBERION is the perfect solution for those seeking a versatile, precise, customizable climatic chamber suitable for extreme testing in industrial and advanced laboratory environments.

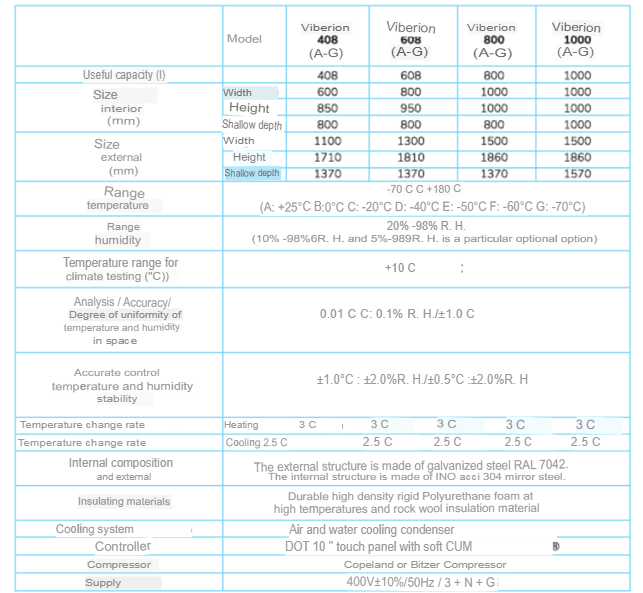

NB:The EXTERNAL and INTERNAL dimensions are given in the format W × H × D mm (W = width, H = height, D = depth).
