Italian CLIMATIC CHAMBER

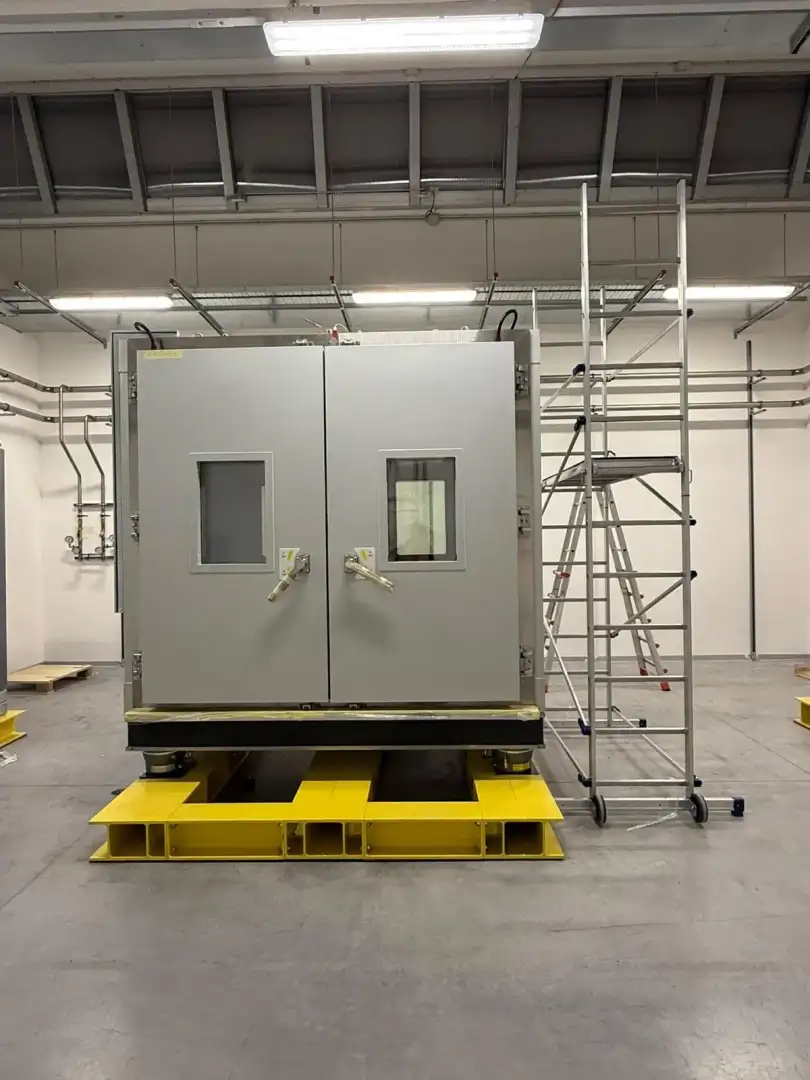

DOT TCEM-40+125 | 6.0 m³
Large-volume climatic chamber designed for thermal and climatic testing of electric motors, complete powertrain systems and high-performance mechanical assemblies.
The 6.0 m³ configuration is dedicated to advanced validation activities requiring extended usable volume, management of high thermal dissipation and integration with dynamometer test benches under dynamic operating conditions.
Volume and Dimensions
Usable volume: approx. 6.0 m³
Internal usable dimensions (approx.):
Width: 2800 mm
Depth: 1800 mm
Height: 1200 mm
External dimensions (approx.):
Width: 3100 mm
Depth: 2100 mm
Height: 2000 mm
Dimensions may vary depending on technical configuration and installed options.
Structural Architecture
Internal structure in AISI 304stainlesssteel

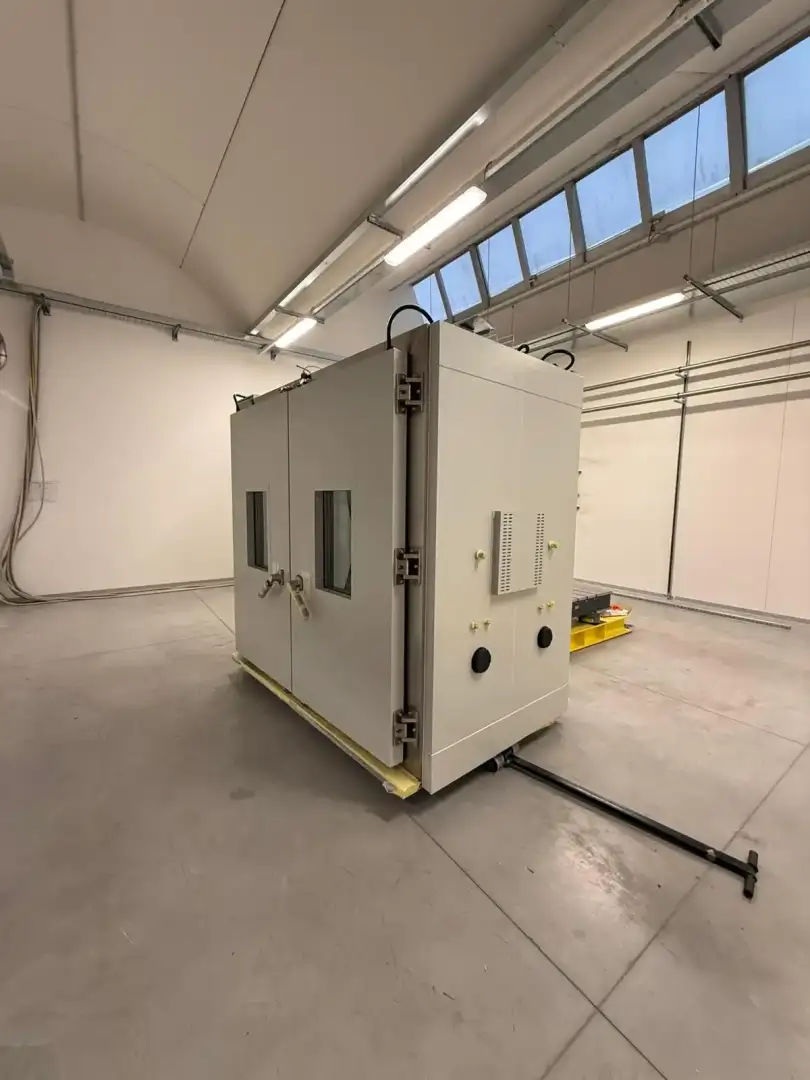

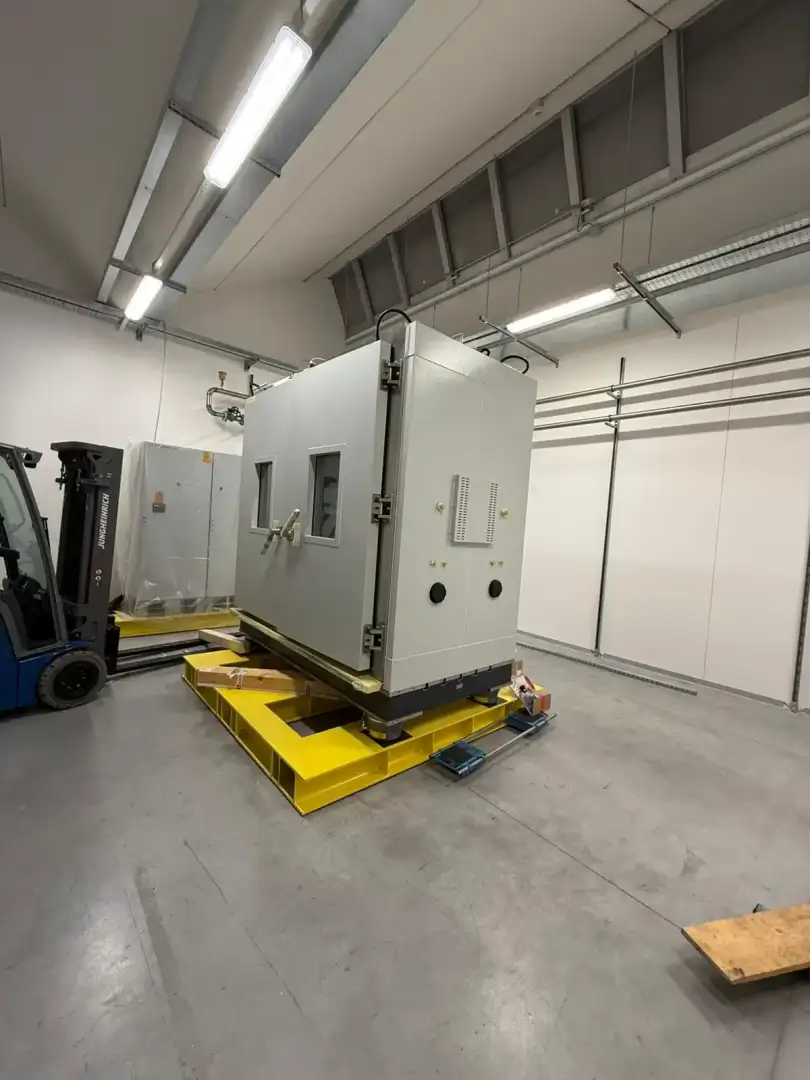

Twin-shell coupled configuration for full access to the test volume
High-thickness thermal insulation
Reinforced structural floor for heavy loads
Technical compartment separated from test volume
Provision for technical pass-through sand test bench interface
Structure dimensioned for dynamic loads and seismic mass installation
The architecture allow seasy installation of motor-transmission assemblies and reduced setup times.
Thermal Performance
Temperature range: −40 °C to +125 °C
Temperaturechangerate: up to 4 °C/min
Thermalstabilityover time: up to ±0.5 °C
Designed to manage high heat dissipation typicalof high-power powertrain systems
The system ensures repeatable thermal cycles even under continuous load conditions.
Climatic Performance
Relative humidity control up to 95 % RH
Climatic operating range: +10 °C to +95 °C
Accurate temperature and humidity regulation
Dewpoint management according to project climatogram

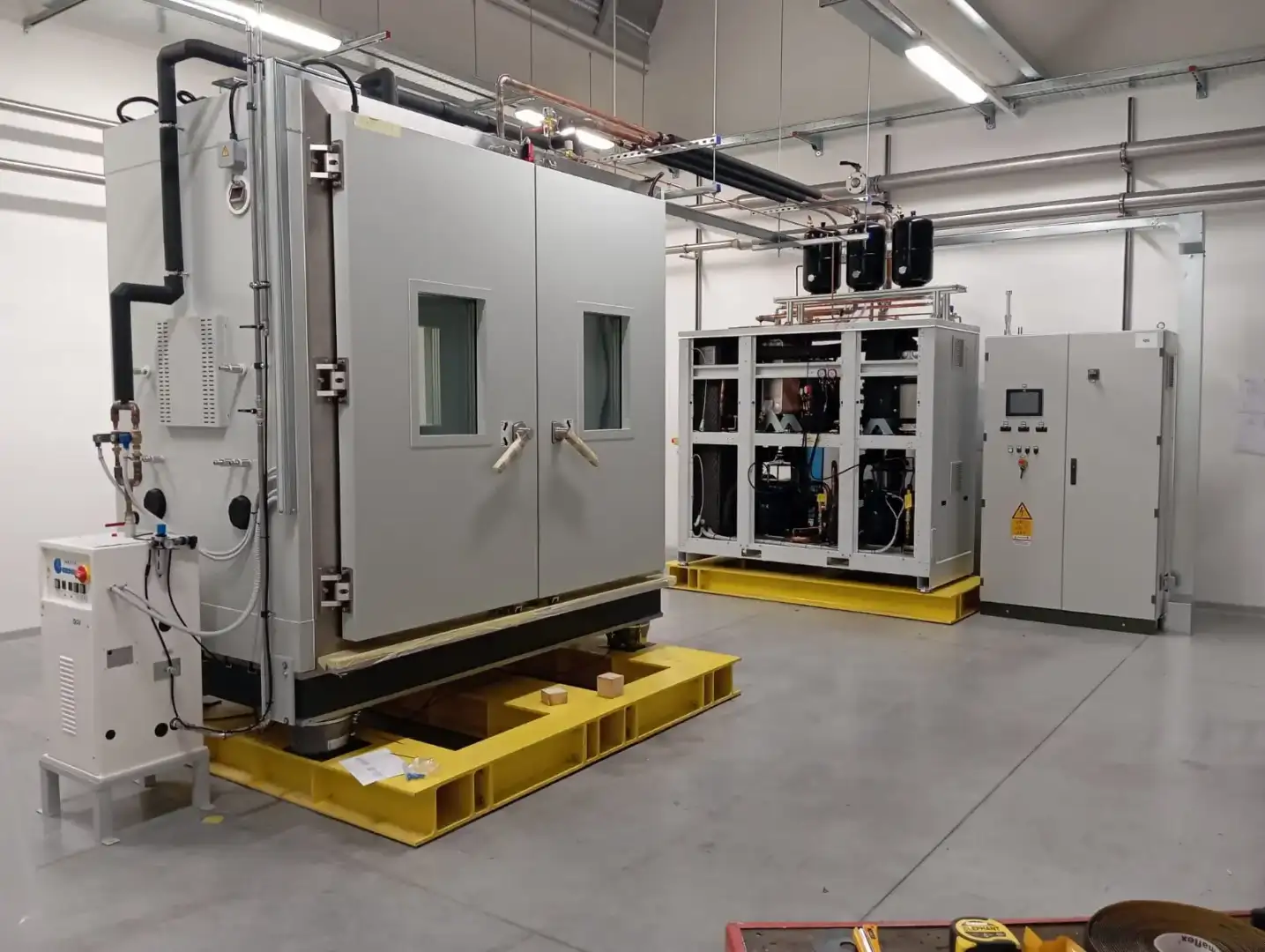

Refrigeration System
Industrial direct expansion refrigeration circuit
High-efficiency compressors
Water-cooled condensation
System dimensioned for continuous operation across the extended operatin grange
Control System
DOT PLC platform with proprietary ClimaLogic®software:
Multi-step thermal and climatic cycle programming
Real-time parameter monitoring
Integrated data logging
Ethernet / TCP-IP connectivity
Compatibility with supervisionand test bench systems
Safetyand Compliance
Safety interlocks
Heating and refrigeration protection systems
Continuous monitoring of critical parameters
Designed in compliance with applicable European directives
Applications
Electric powertrain validation
Dynamic testing of single motors orintegrateds ystems
Functional and durability testing for high-power assemblies
Advanced automotive development programs
R&D activities on electric traction systems
Structural Architecture
AISI 304 stainless steel structure

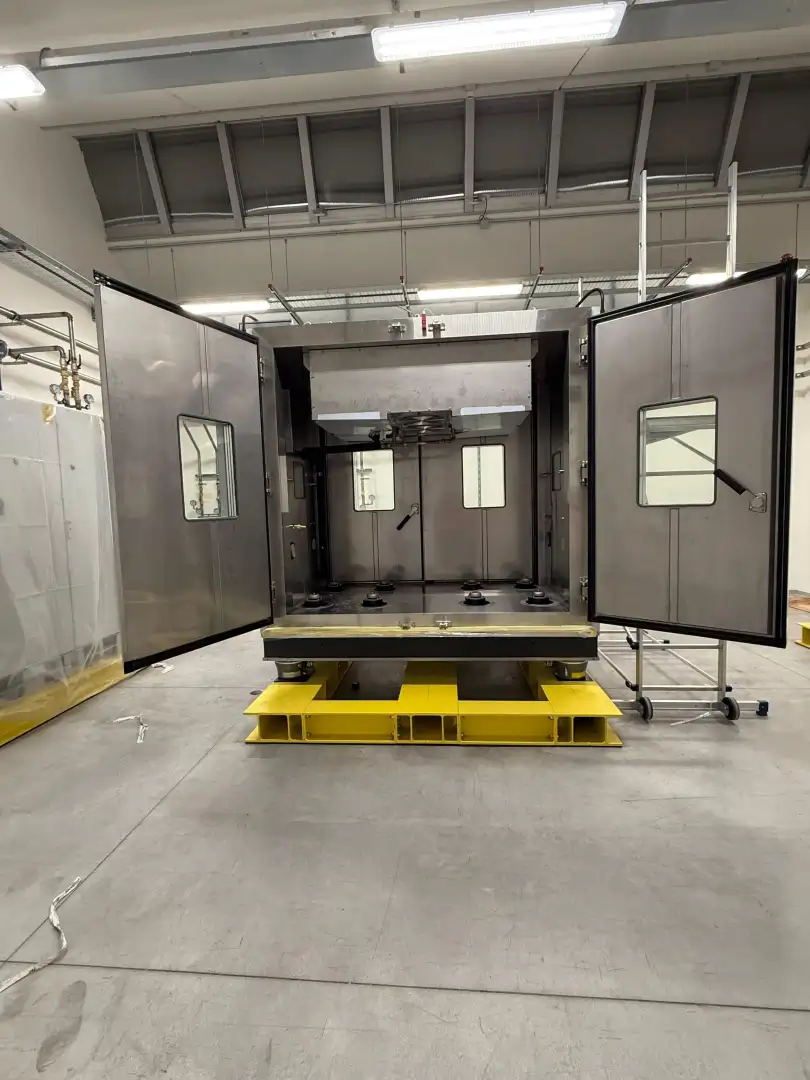

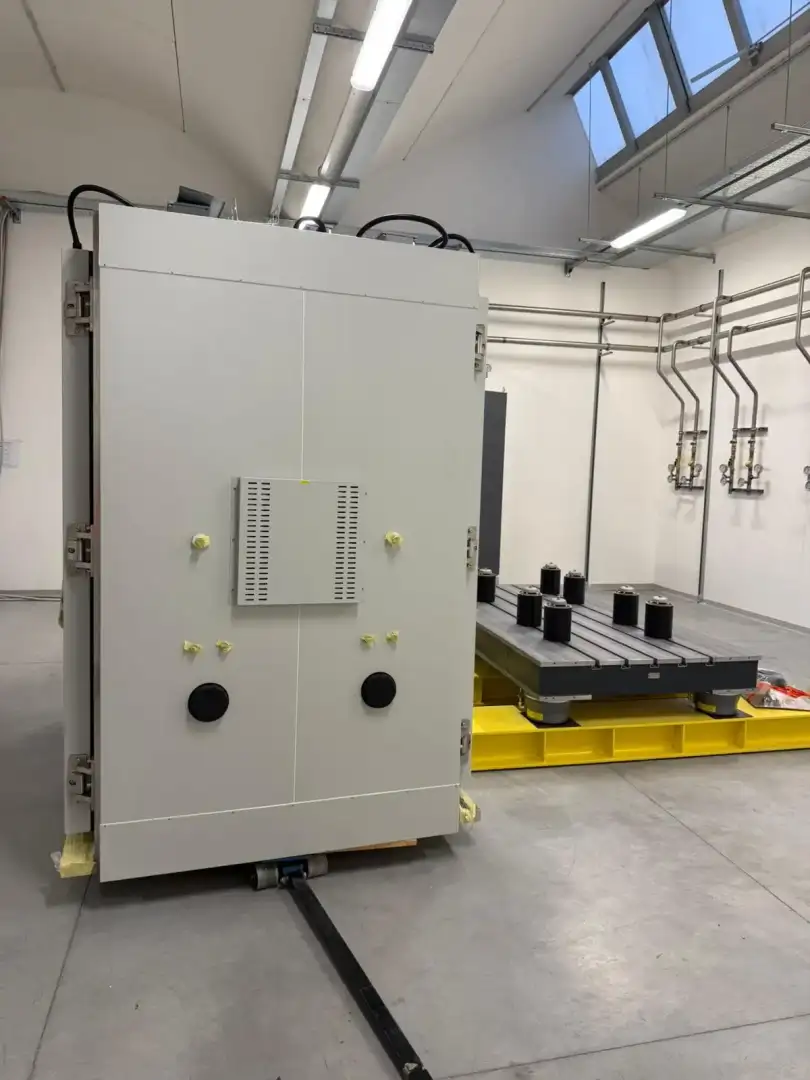

Dual welded half-shell configuration for full access to the test volume
High-thickness thermal insulation
Reinforced floor designed for heavy loads
Dedicated technical compartment
Prepared for direct integration with dynamometer benches
Structure engineered for dynamic loads and seismic mass anchoring
The Double Back-to-Back configuration enables simultaneous testing of coupled systems, replicating real operating conditions.
Thermal Performance
Temperature range: −40 °C to +125 °C
Temperature variation rate up to 4 °C/min
Thermal stability over time up to ±0.5 °C
Designed to manage high dissipation loads typical of high-power electric powertrain systems
The system ensures repeatable thermal cycles even under continuous load conditions.
Climatic Performance
Relative humidity control up to 95 % RH
Climatic operating field: +10 °C to +95 °C
Accurate temperature and humidity regulation
Dew point management according to project climatogram
Refrigeration System
Direct expansion refrigeration circuit
High-efficiency industrial compressors
Water-cooled condenser configuration
System dimensioned for continuous operation under high dissipation conditions
Control System
DOT PLC platform with proprietary CliMaLogic® software:
Multi-step programmable thermal and climatic cycles
Real-time parameter monitoring
Integrated data logging
Ethernet / TCP-IP connectivity
Compatibility with supervision and dynamometer systems
Safety and Compliance
Safety interlock systems
Heating and refrigeration protection devices
Continuous monitoring of critical parameters
Designed in compliance with applicable European directives
Applications
Electric powertrain validation in B2B configuration
Dynamic testing of coupled motor systems
Functional and endurance testing of high-power assemblies
Advanced automotive development programs
R&D activities on electric propulsion systems
Custom Configurations
The TCEM platform can be configured according to:
Required internal volume
Operating temperature and humidity ranges
Thermal dissipation levels
Single or Double Back-to-Back configuration
Integration with dynamometer benches
Applicable test standards
