The VIBERION climatic chambers by Il Disgelo are systems designed to perform combined environmental tests involving temperature, humidity and vibration on components, materials and systems intended for industrial and research applications.
VIBERION platforms make it possible to integrate climatic-condition control with external vibration systems, allowing the DUT to be subjected to simultaneous climatic and mechanical stresses under controlled, stable and repeatable conditions.

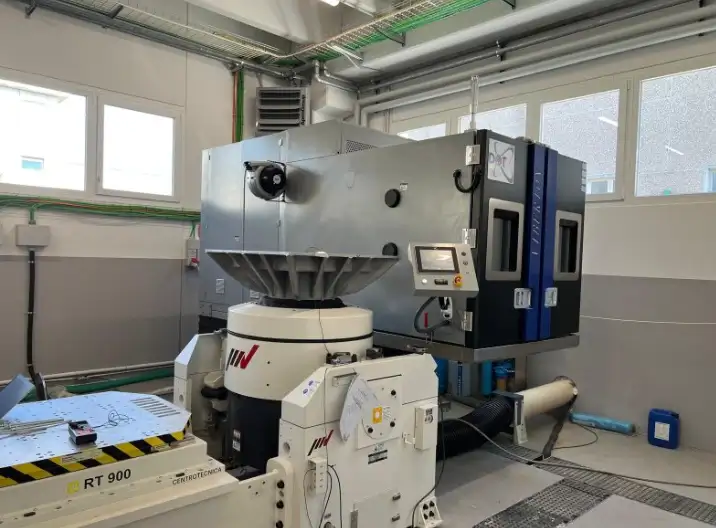

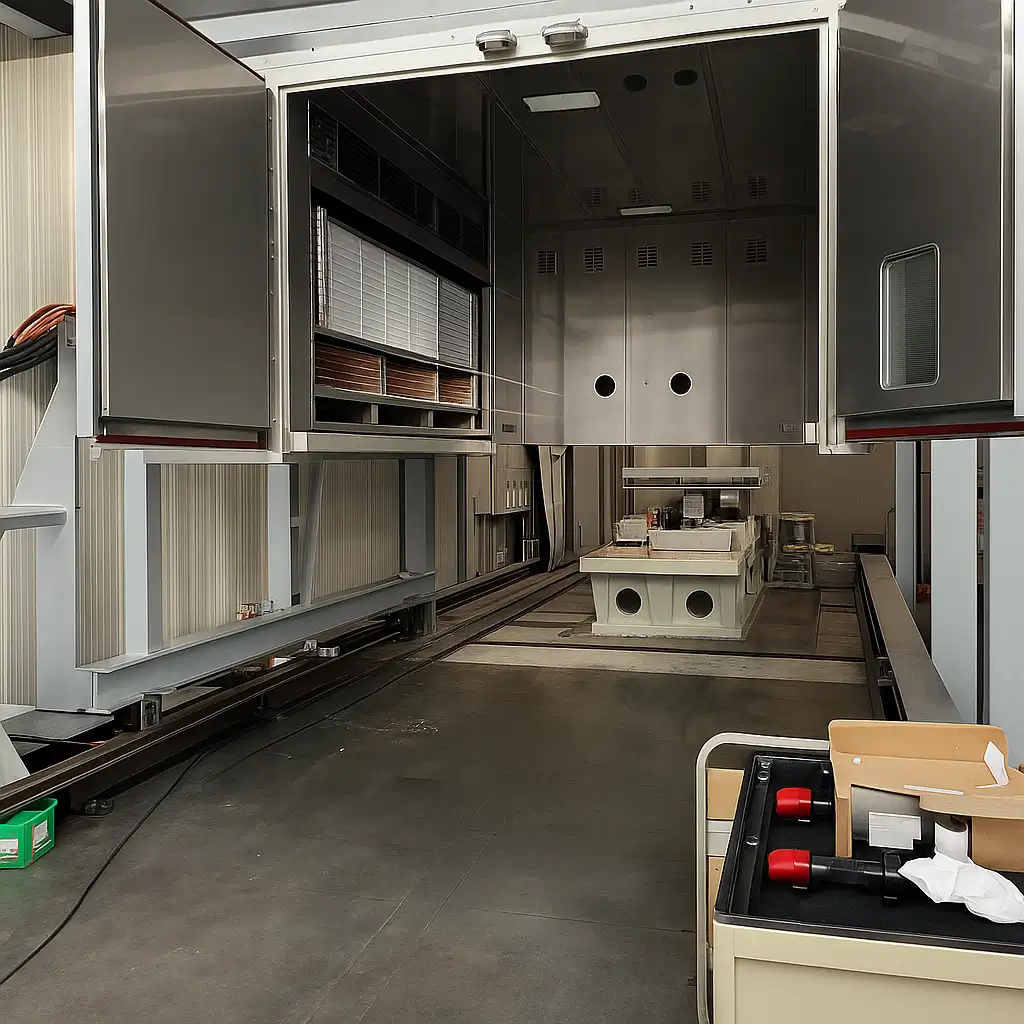

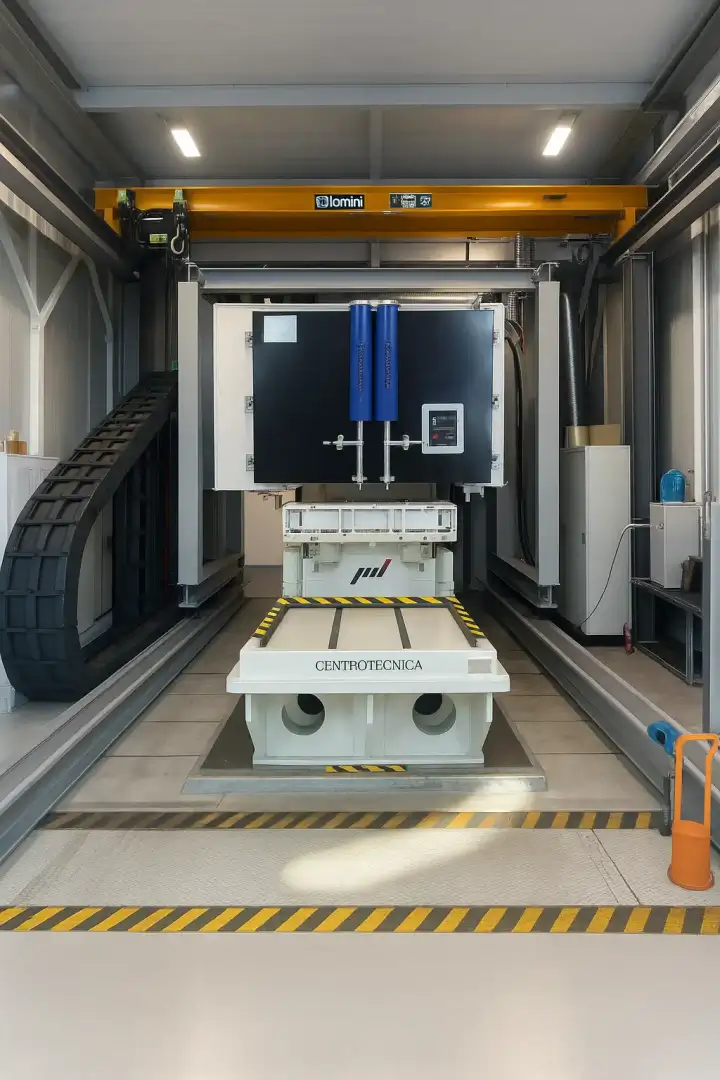

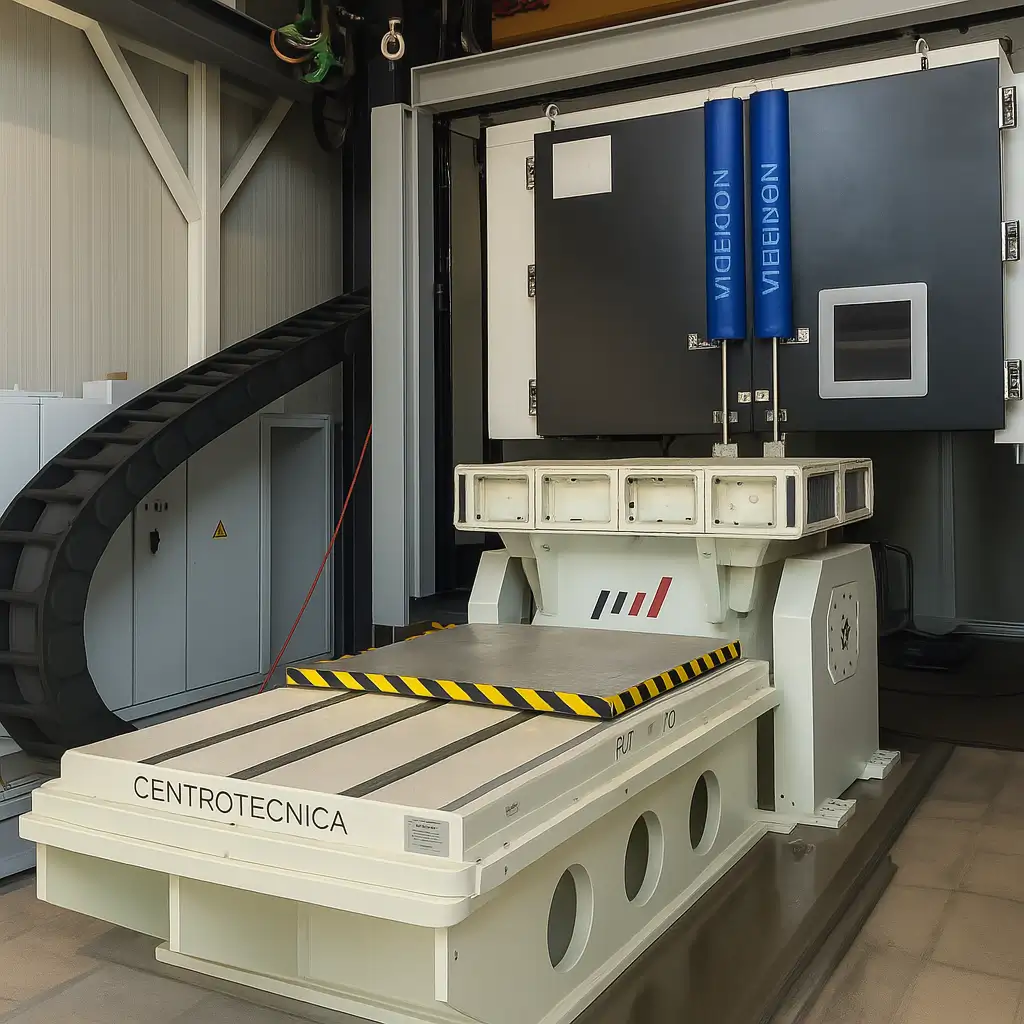

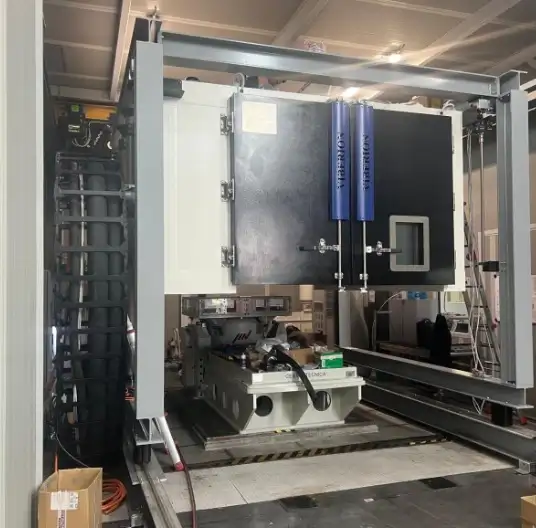

VIBERION configurations can be developed for vertical and horizontal vibration, with the possibility of integration with shakers, head expanders and slip-tables. Depending on the application, vertical lifting and horizontal translation systems can also be provided to ensure correct positioning of the chambers relative to the vibration system.

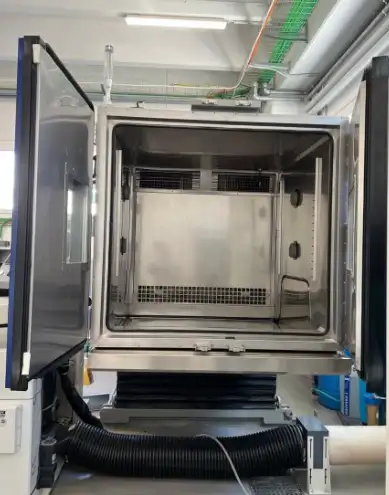

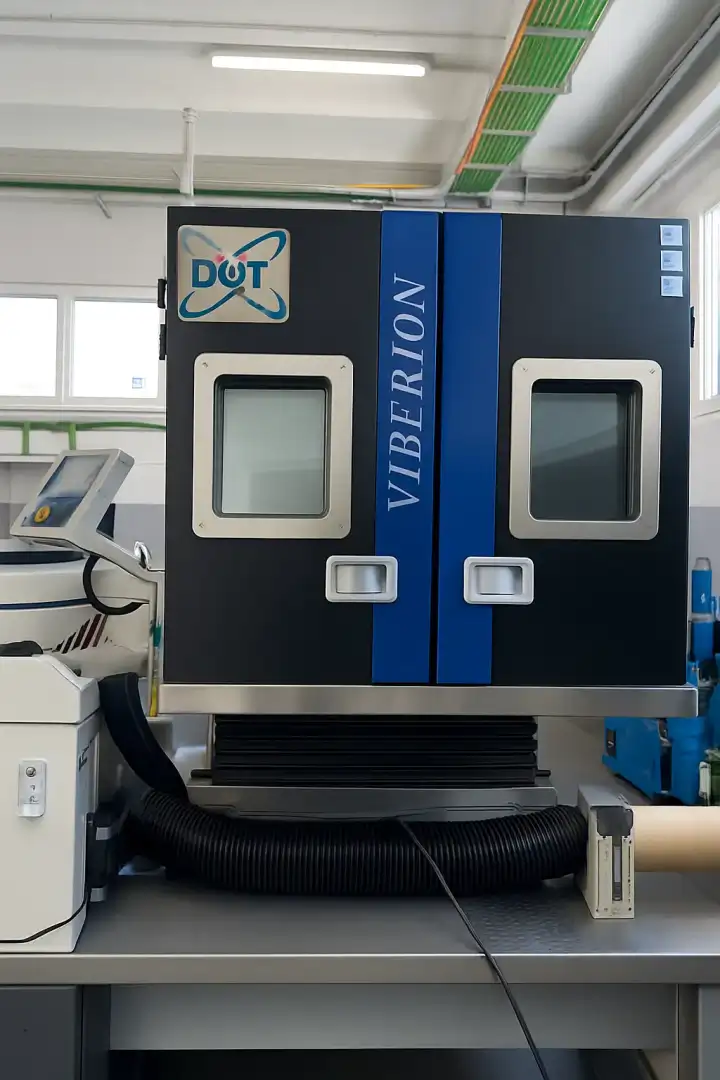

The chambers can be used both for independent climatic testing, using dedicated blind floors, and for combined climate + vibration testing through specific floors and interfaces. The characteristics of each configuration are defined according to usable volume, DUT dimensions and mass, temperature and humidity range, thermal dissipation, required dynamics, shaker characteristics and test-interface geometry.
They are designed to provide:
- precise temperature control;
- relative humidity control;
- simultaneous climatic and vibration testing;
- integration with different types of shakers;
- configurations for vertical and horizontal vibration;
- integration with head expanders and slip-tables according to configuration;
- high stability and uniformity of climatic conditions;
- programmable thermal and thermo-hygrometric cycles;
- management of ramps, dwell periods and automatic sequences;
- acquisition and recording of the main process parameters;
- integration with sensors, measuring systems and external equipment;
- continuous operation for qualification, validation and Environmental Stress Screening activities;
- configurations dedicated to the characteristics of the DUT and vibration test bench.
VIBERION chambers are used in the automotive, e-mobility, electronics, aerospace, defence, battery, industrial components and research sectors, for development, qualification, validation, Environmental Stress Screening (ESS), reliability testing and durability testing.
The VIBERION range is available in different usable volumes, temperature ranges, thermal-dynamic performance levels and vibration-system integration configurations, making it possible to select or develop the most suitable solution according to the dimensions of the component under test and the required test conditions.
- type: climatic chambers for combined temperature, humidity and vibration testing;
- operating mode: stand-alone or integrated with shakers and vibration systems;
- available usable volumes: from 408 L up to 10 m³, depending on model and configuration;
- temperature configurations: up to −70 °C / +180 °C, depending on the model;
- relative humidity range: up to 10% ÷ 98% RH, depending on configuration;
- temperature uniformity: up to ±1 °C / ≤ 2 °C, depending on model and test conditions;
- temperature resolution: up to 0.01 °C, depending on configuration;
- temperature change rates: standard and high-dynamic configurations up to 10 °C/min;
- dynamic configurations: standard, X5 and X10;
- refrigeration system: direct expansion, single-stage, two-stage or cascade, depending on temperature range and required performance;
- heating: electric heaters integrated into the air-treatment system;
- humidification: steam generator;
- dehumidification: dedicated refrigeration system;
- condensation: air- or water-cooled, with alternative and remote configurations available depending on the application;
- test chamber:AISI 304 stainless steel;
- air circulation: forced and temperature-controlled ventilation;
- vibration integration: configurations for vertical and horizontal vibration;
- interfaces: dedicated floors, head expanders and slip-tables depending on configuration;

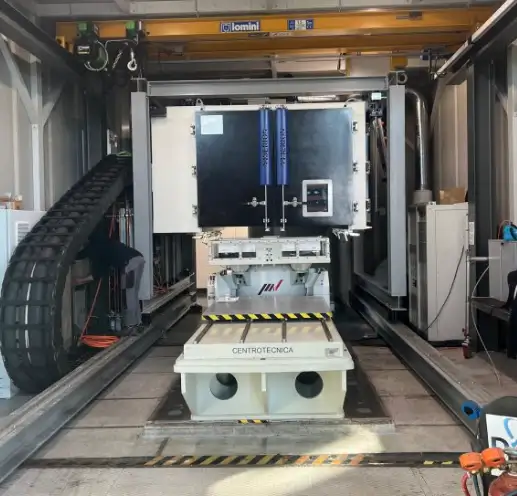

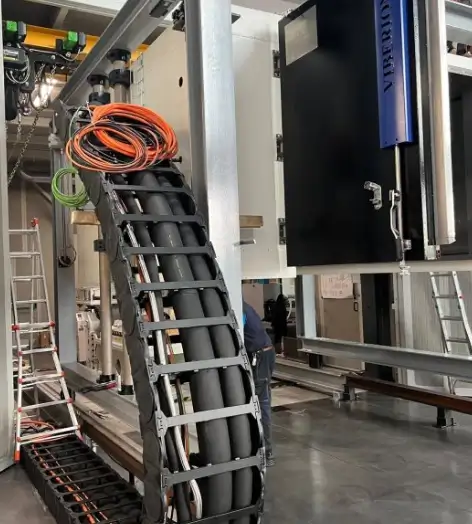

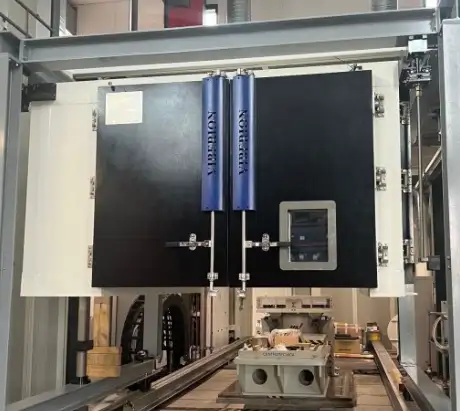

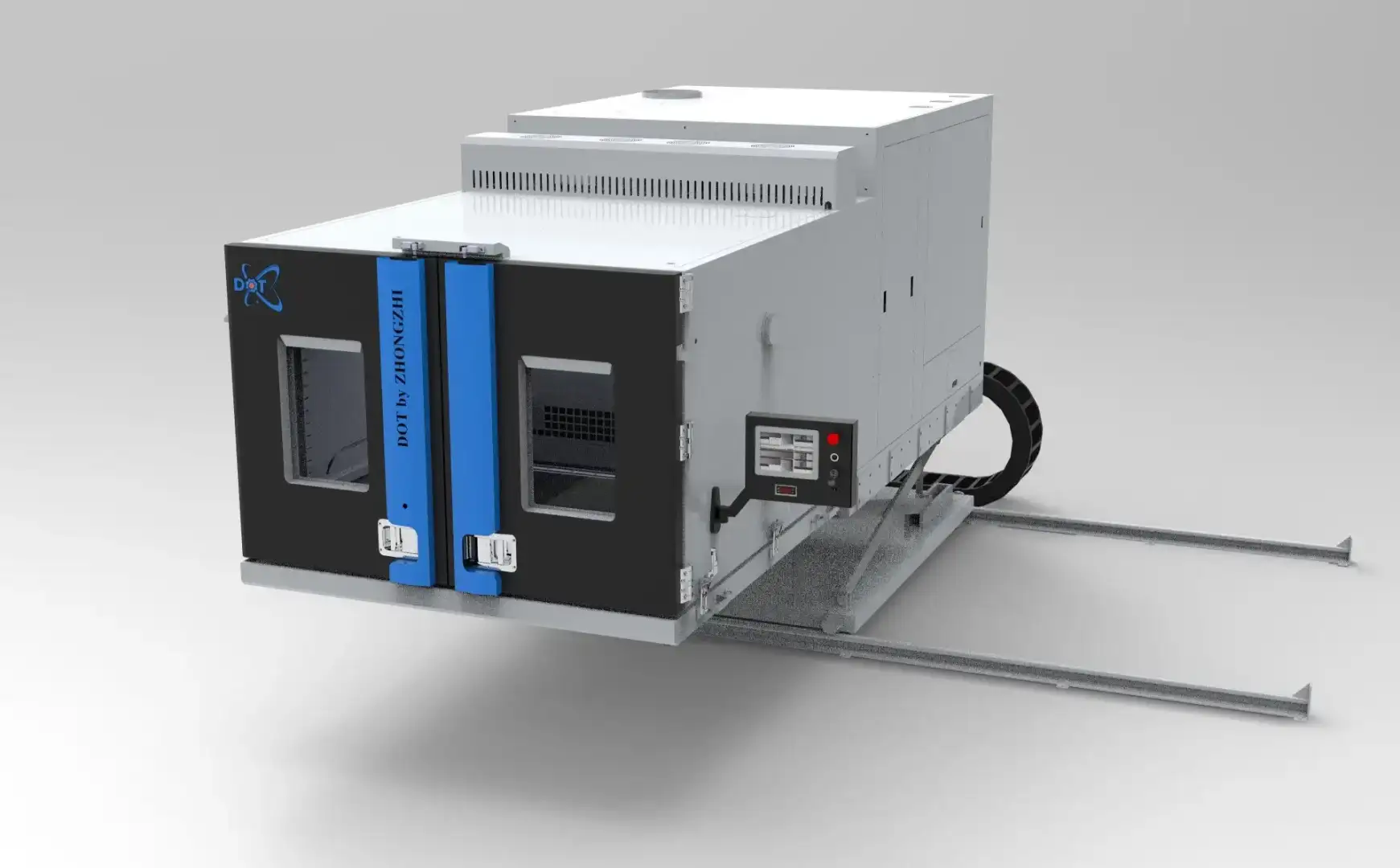

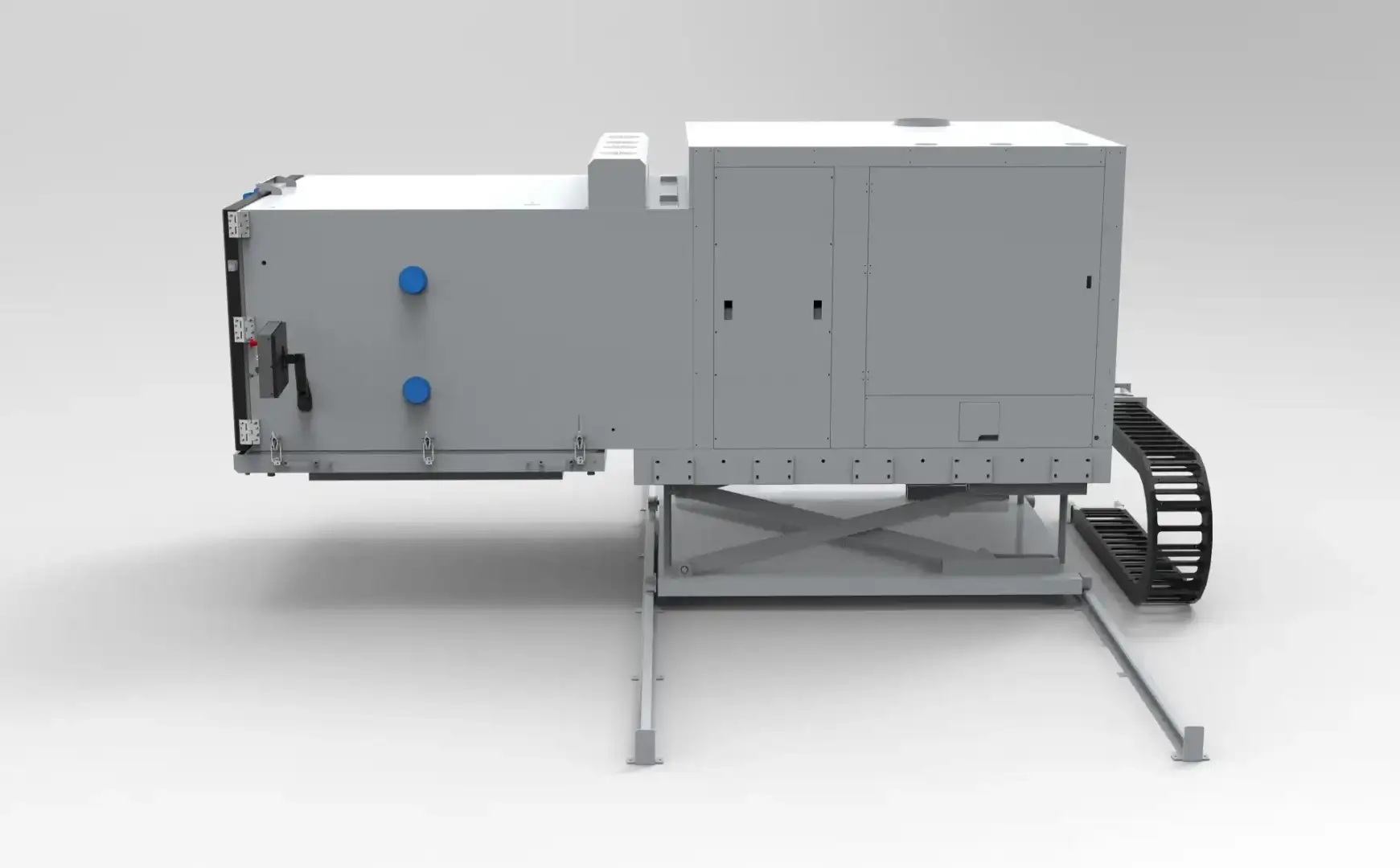

- movement system: vertical lifting and horizontal translation available according to the vibration system;
- control: PLC with DOT Touch Panel and CliMaLogic®;
- programming: climatic cycles, ramps, dwell times and automatic sequences;
- data logging: recording of temperature, humidity, setpoints and main process parameters with data export;
- connectivity: Ethernet, USB, VNC and Modbus TCP/IP;
- power supply:400 V ±10%, 50 Hz, three-phase + neutral + earth;
- remote supervision: available.
VIBERION Models
| MODEL | TEMPERATURE RANGE | VOLUME | EXTERNAL DIMENSIONS (mm) | TEMPERATURE CHANGE RATE | MAX CURRENT (A) | INTERNAL DIMENSIONS (mm) |
|---|---|---|---|---|---|---|
| VIBERION 608 | −70 °C / +180 °C | 608 L | W1300 × D1370 × H1810 | +3 / −2.5 °C/min | — | W800 × D800 × H950 |
| VIBERION 800 | −70 °C / +180 °C | 800 L | W1500 × D1370 × H1860 | +3 / −2.5 °C/min | — | W1000 × D800 × H1000 |
| VIBERION 1000 | −70 °C / +180 °C | 1000 L | W1500 × D1570 × H1860 | +3 / −2.5 °C/min | — | W1000 × D1000 × H1000 |
| CZ-UHAK-408D-X5-W | −40 °C / +180 °C | 408 L | W1200 × D2300 × H2150 | 5 °C/min | 30 | W800 × D800 × H650 |
| CZ-UHAK-408G-X5-W | −70 °C / +180 °C | 408 L | W1200 × D2300 × H2150 | 5 °C/min | 25 | W800 × D800 × H650 |
| CZ-UHAK-1000D | −40 °C / +180 °C | 1000 L | W1500 × D1570 × H1860 | +3 / −2.5 °C/min | 38 | W1000 × D1000 × H1000 |
| CZ-UHAK-1000D-X5-W | −40 °C / +180 °C | 1000 L | W1500 × D1570 × H1860 | 5 °C/min | 30 | W1000 × D1000 × H1000 |
| VIBERION-H-1872D-X10-W | −40 °C / +180 °C* | 1872 L | W1500 × D3900 × H to be defined | 10 °C/min | 96 | W1300 × D1200 × H1200 |
| VIBERION-UHA-5800D-X5-W | −55 °C / +180 °C | 5800 L | W2780 × D2500 × H2680 | 5 °C/min | 52 | W2580 × D1500 × H1500 |
| DOT-VIBERION-10M3-70+180-X5 | −70 °C / +180 °C | 10 m³ | W4900 × D4000 × H4000 approx.** | 5 °C/min | — | W2700 × D2100 × H1500 approx. |
Configurable Data
The values shown represent reference technical configurations. Usable volume, temperature range, humidity control, refrigeration system, condensation system, dynamic performance, vibration-system interfaces and accessories may vary depending on the selected model and specific testing requirements.
VIBERION chambers can also be configured with safety systems, additional instrumentation, dedicated floors and interfaces, vertical and horizontal movement systems, and solutions for integration with shakers, slip-tables, test benches or external equipment.
