Italian Industrial Chillers and Fluid Temperature Control Systems
The Crydrakon platformincludes temperature control systems designed for the thermal management of technical fluids used in industrial applications, test benches and testing infrastructures.
The systems can be configured with refrigeration circuits, heating circuits or combined heating/cooling systems, with the possibility of managing one or multiple independent circuits.
Configurations are developed according to the specific requirements of the application, the required thermal capacity and the characteristics of the process fluid.
System Architecture
Crydrakon systems are designed with an industrial structure suitable for continuous operation and integration into testing infrastructures or process systems.
Main construction features:
painted steel structural frame
painted galvanized steel panels
hydraulic circuits inAISI 304 stainless steel
thermal insulation of fluid lines
industrial components designed for continuous operation
The systems can be configured with different circuit architectures depending on the application.
Control System
Crydrakon systems are equipped with industrial control platforms for complete management of process parameters.
Main functions:
PID temperature control
setpoint and operating cycle management
monitoring of operating parameters
alarm and safety management
process data logging
industrial communication viaEthernet / Modbus

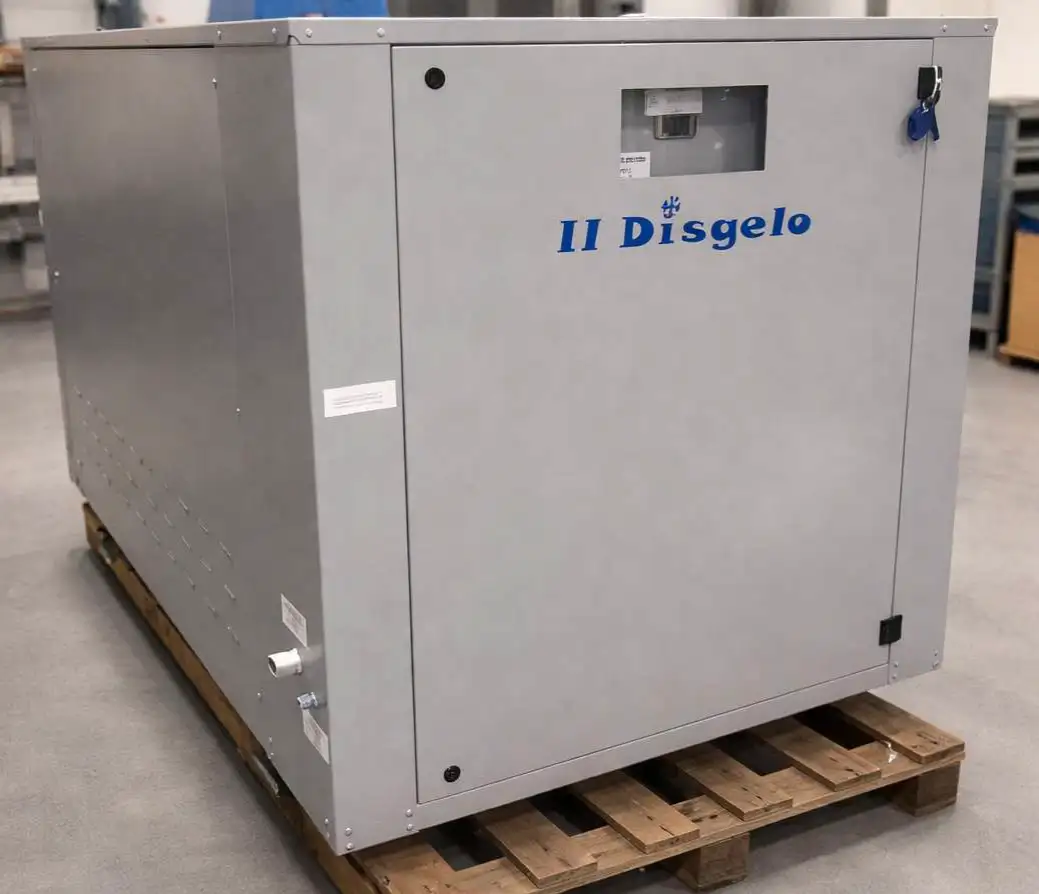

Crydrakon Series Models
Model | System Type | Fluid Temperature Range | Thermal Capacity | Heat Transfer Fluid |
Crydrakon CCH-35/110 | Heating/Cooling chiller | −35 °C → +110 °C | 13 kW @ −35 °C40 kW @ −20 °C97 kW heating side | water / water-glycol |
Crydrakon CCH-40/110 2S | Two-stage chiller | −40 °C → +110 °C | 12 kW @ −40 °C40 kW @ −20 °C97 kW heating side | water / water-glycol |
Crydrakon Thermal Oil Skid | Thermal oil system | −50 °C → +30 °C | approx. 48.5 kW | thermal oil |

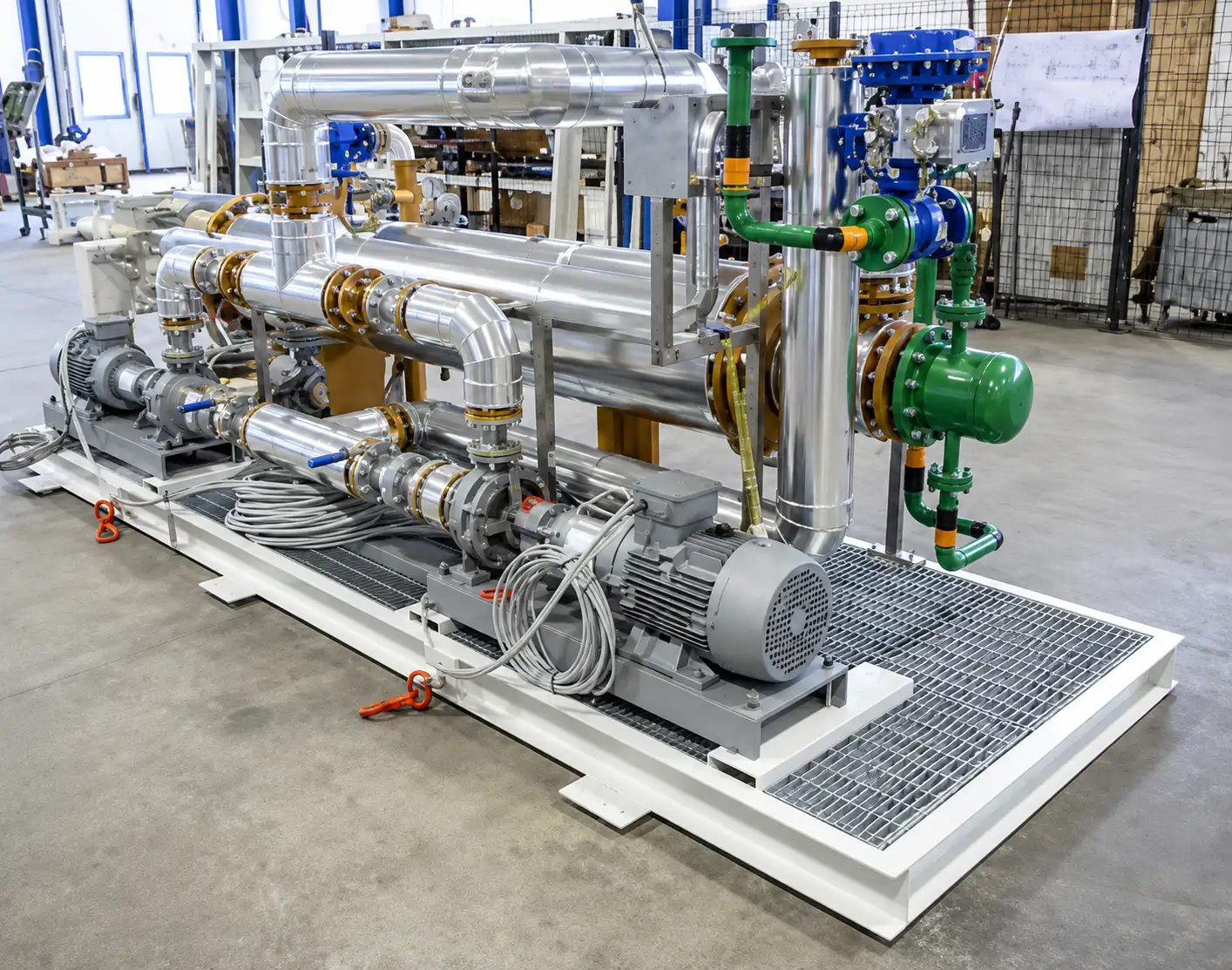

Crydrakon Fuel Cell Thermal Control Skid | High flow thermal control system | up to +130 °C | up to 600 kW heating | water / technical fluids |
Custom Configurations
Crydrakon systems can be configured according to:
required temperature range
thermal capacity
type of heat transfer fluid
required flow rate
integration with test benches or industrial systems
multi-circuit configurations
The configurations shown represent typical examples of the Crydrakon platform.
Each system can be engineered according to customer specifications.
