DOT DRACARYS 1000 L Climatic Chamber for Magna Closures

‎ ‎ ‎

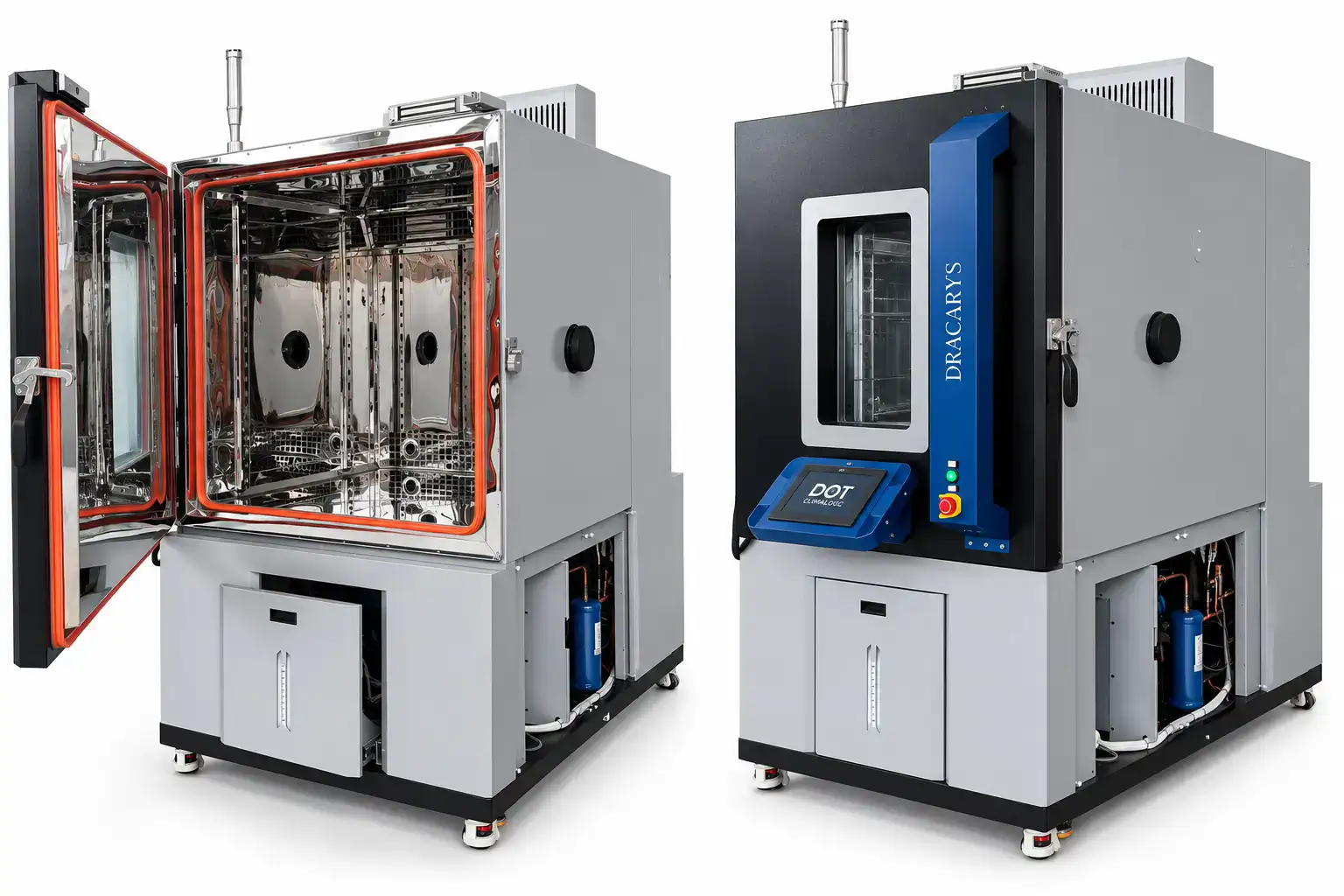

Il Disgelo designed and built for Magna Closures S.p.A., at its Livorno production plant, a 1,000-litre DOT DRACARYS CZ-UHA-1000G climatic chamber for the environmental qualification testing of the automotive components it manufactures.
The system operates over a temperature range of −70°C to +180°C with relative humidity from 20% to 98% RH, ensuring stable, repeatable climatic conditions for testing.

‎

Developed Solution

The configuration provides:

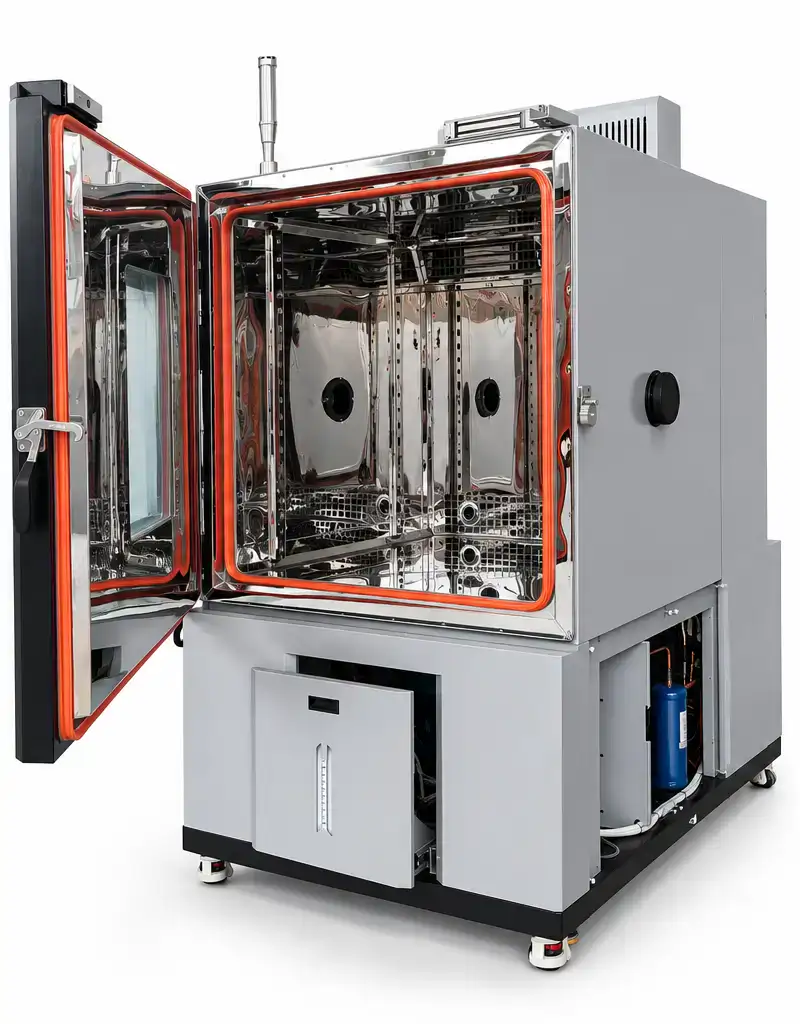

• a monobloc structure with an AISI 304 stainless steel interior and 100 mm polyurethane insulation;
• 4-stage cascade cooling with Bitzer compressors, using low-GWP R449A and R472B refrigerants;
• humidification via an electric steam generator and dehumidification via a tube coil;
• a reinforced floor (100 kg) and two adjustable shelves (50 kg each);

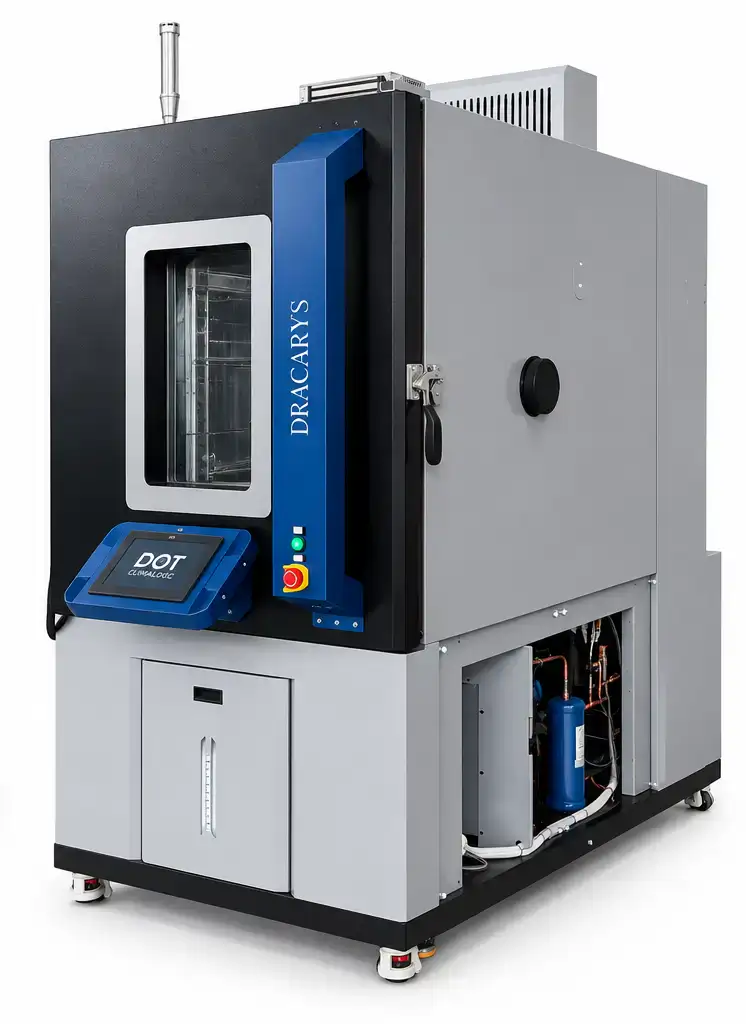

• control and supervision via CliMaLogic®, with Industry 4.0 connectivity;
• sound-shielded compressors and an internal sound-absorbing lining.

‎

Main Technical Data

• model: DOT DRACARYS CZ-UHA-1000G;
• working volume: 1,000 litres;
• internal dimensions: 1000×1000×1000 mm; external: 1300×2335×2240 mm;
• temperature: −70°C to +180°C; rate of change: 3 K/min;
• humidity: 20% to 98% RH; uniformity: ≤1°C;
• weight: approx. 1,300 kg; noise: 68 dB(A);
• operating power: approx. 20 kW; power supply: 400V three-phase;
• refrigerants: R449A and R472B (cascade);
• control: CliMaLogic®, Ethernet/Modbus TCP-IP connectivity;
• reference standards: IEC 60068, MIL-STD-202F, MIL-STD-810D.

‎

Result

The chamber was installed, commissioned and successfully tested at the Livorno plant, giving Magna Closures a reliable tool for the environmental qualification of the automotive components produced on site.
