Italian Climatic System Integrated with Six Poster for Dynamic Full-Vehicle Testing

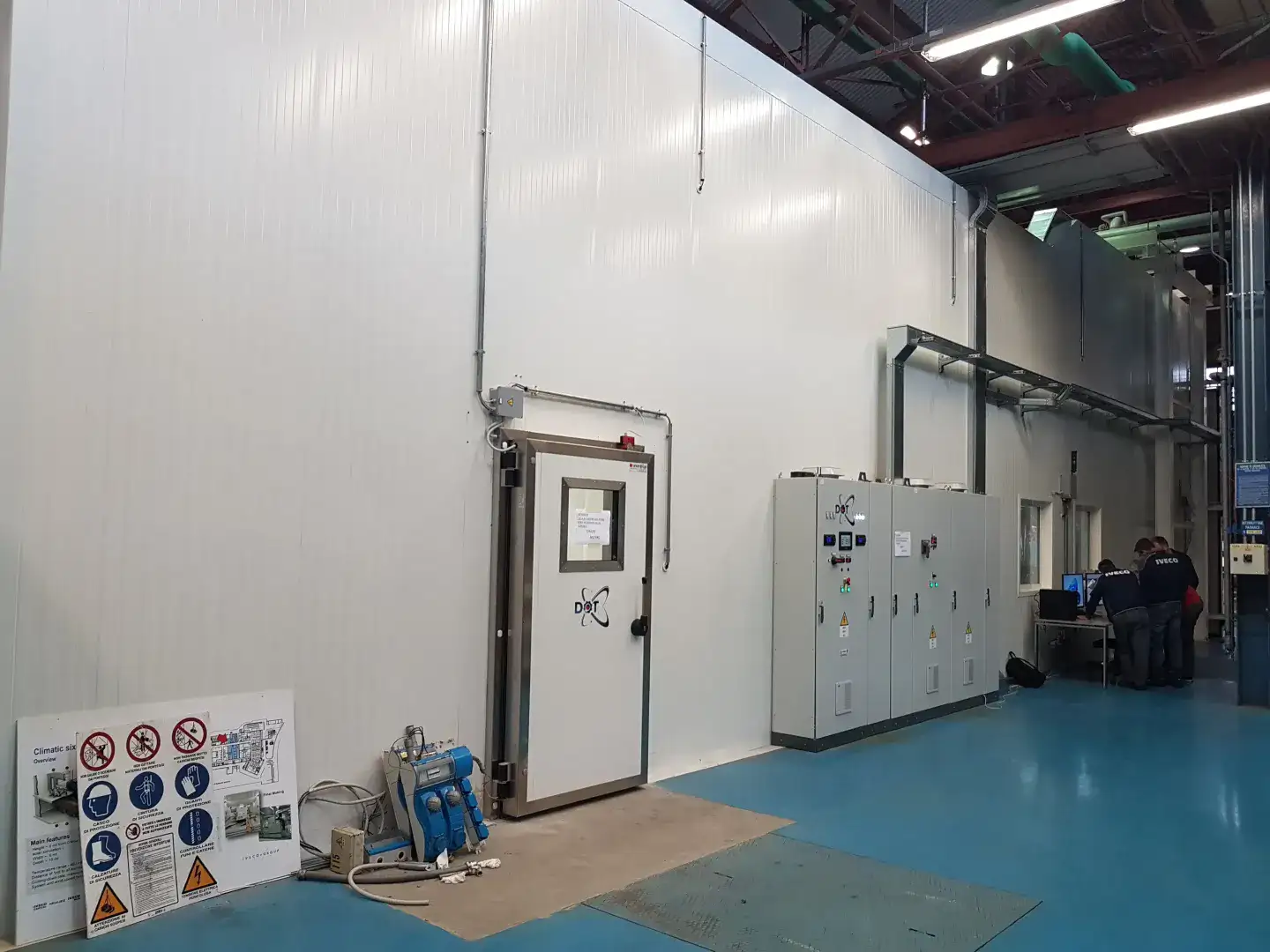

Il Disgelo designed and manufactured for IVECO a DOT DROGON Walk-In climatic chamber with an internal volume of approximately 700 m³, developed for climatic and dynamic testing on complete vehicles.

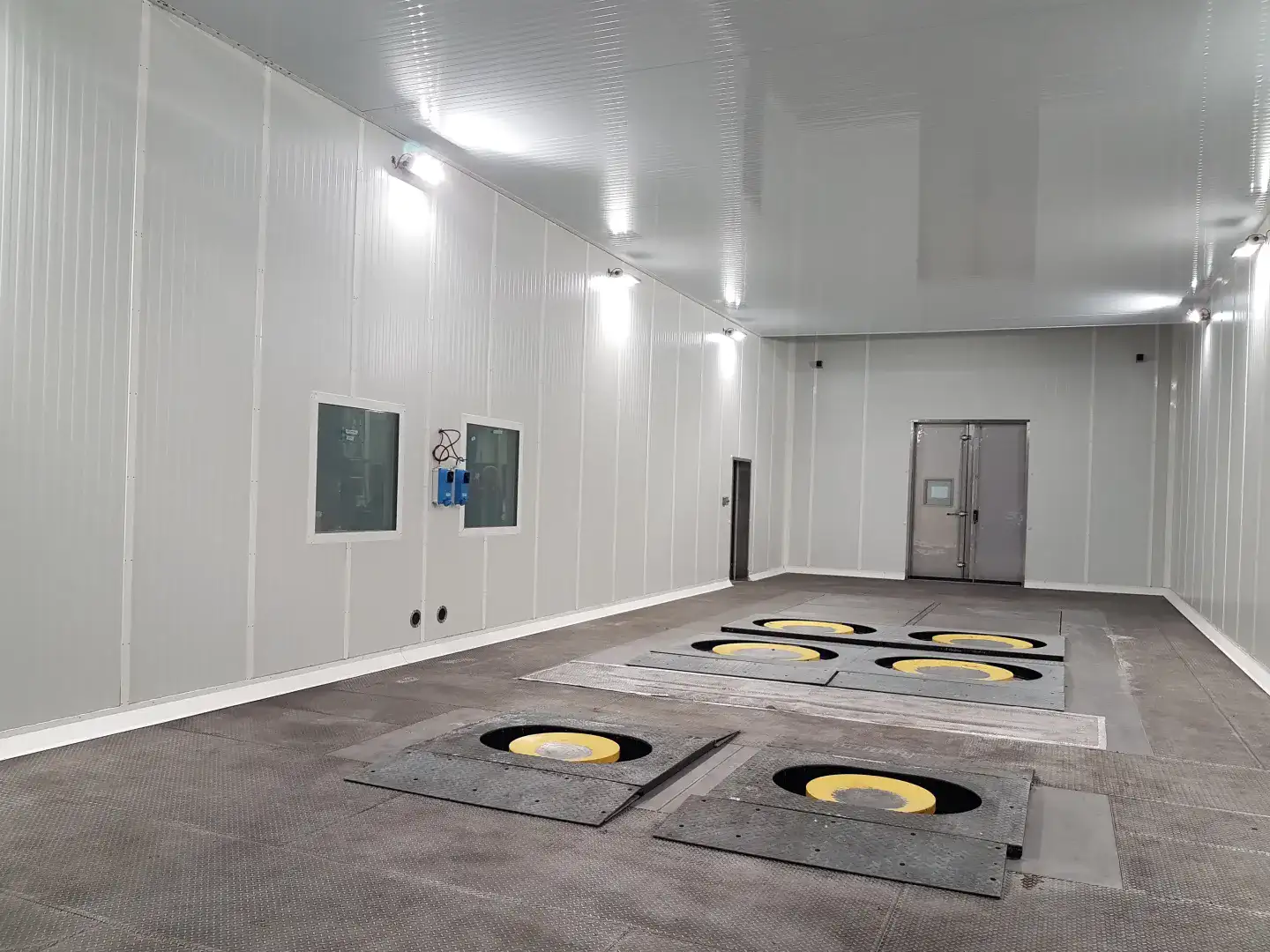

The chamber is integrated with a Six Poster system for road and pavé simulation, allowing climatic testing and dynamic testing to be carried out within the same controlled environment.
Developed Solution
The configuration integrates a custom Walk-In climatic chamber with a thermally insulated floor and a Six Poster system dedicated to vehicle testing.
The system was designed to provide:
- climatic testing on complete vehicles;
- integration with a Six Poster system;
- combined simulation of environmental conditions and road loads;
- temperature and relative humidity control;
- protection of actuator-to-floor interfaces;
- temperature control within the technical pit;
- centralized PLC management;
- dedicated safety and alarm-management systems.
Main Technical Data
- usable volume: approximately 700 m³;
- temperature range: −40 °C to +80 °C;
- relative humidity: 20% to 90% RH between +20 °C and +80 °C;
- dew point: +5 °C to +49 °C;
- external dimensions: approximately 8 × 17 × 6.5 m;
- front access door: 4.6 × 4.1 m;
- rear access: 3.1 × 2.1 m;
- service door: 2 × 0.9 m;
- dynamic system: integrated Six Poster;

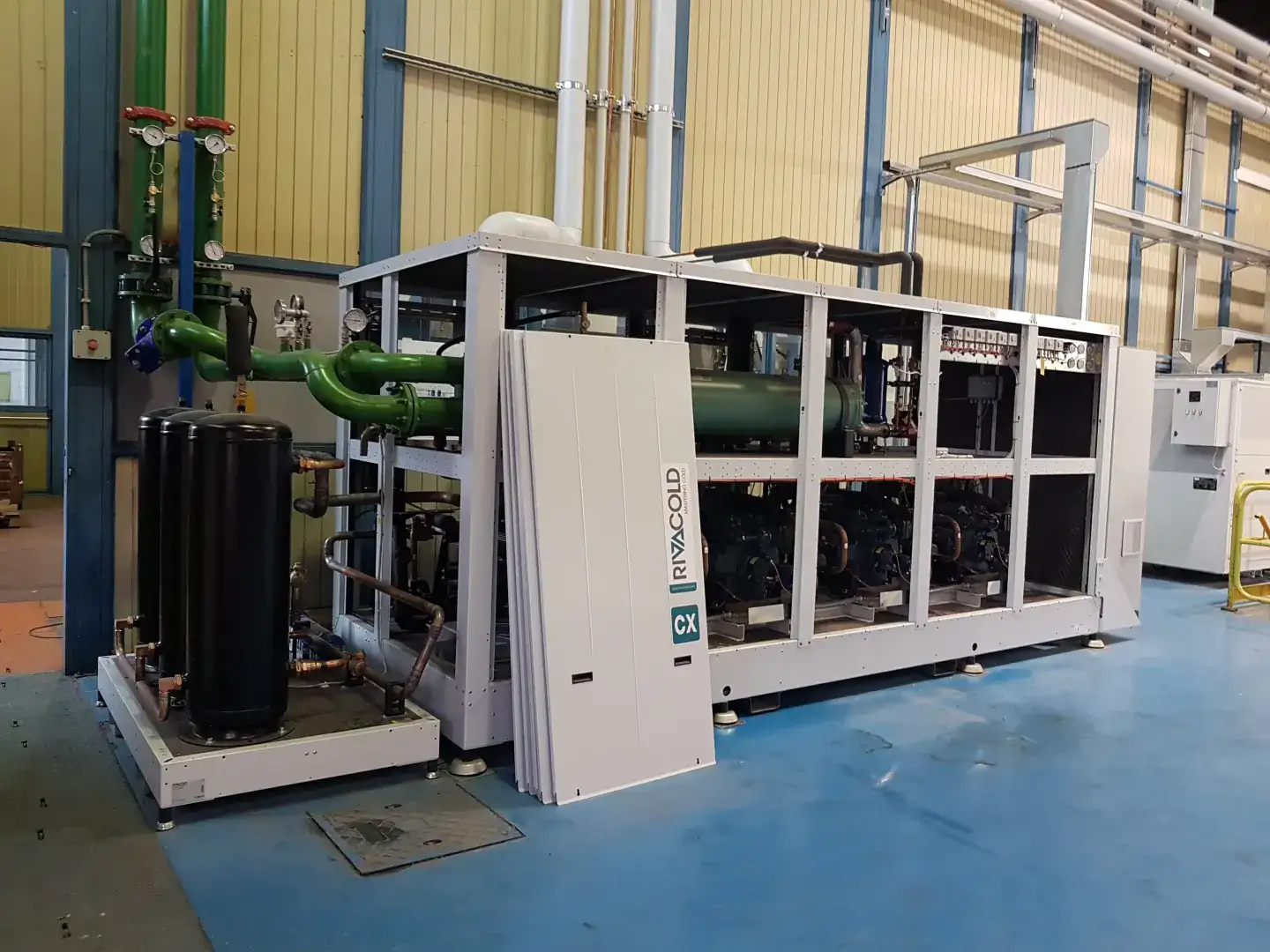

- refrigeration system: 4 Dorin two-stage compressors;
- control: centralized PLC;
- safety: gas-detection system and automatic recovery procedures.
Result
The solution enables integrated climatic and dynamic testing on complete vehicles, combining severe environmental conditions and road-load simulation within a single custom test system.
