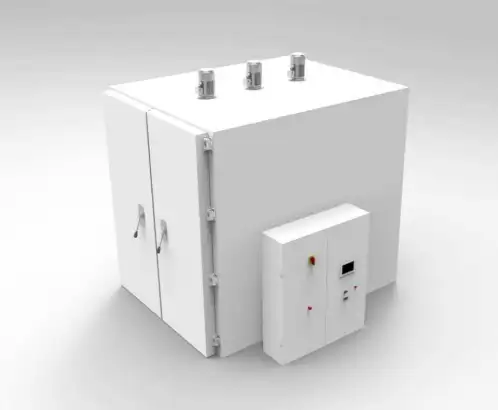

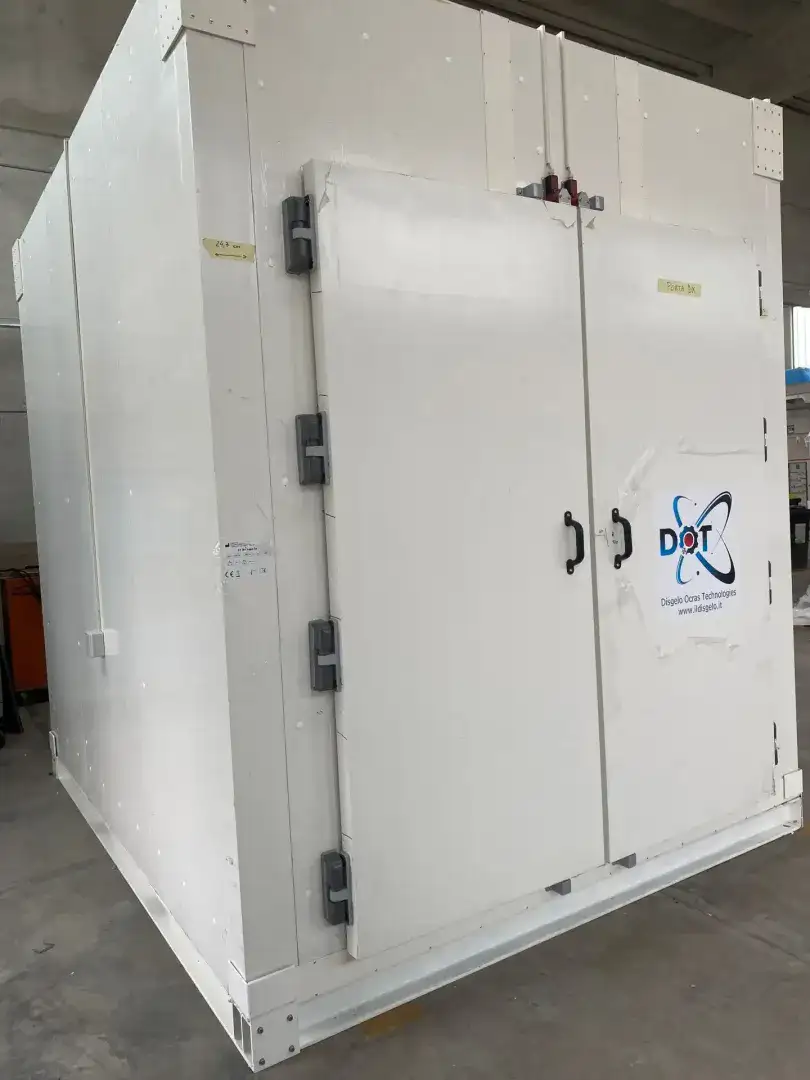

The VULKAR SAE Large Capacity by Il Disgelo are industrial ovens designed to perform controlled heat treatments on large components, coils, cables, industrial products and loads with high thermal mass.
This family is developed for applications where simply increasing the chamber volume is not sufficient and the entire system must be engineered according to the actual load, required thermal power, handling method, process temperature and integration with the production plant.
The forced-air ventilation and air-treatment system are specifically designed for each application, with the aim of achieving effective heat distribution throughout large usable volumes and reducing thermal gradients even when processing bulky loads or products with high thermal inertia.
Configurations can reach usable volumes above 20 m³, temperatures up to +350 °C and high installed thermal power, with structures specifically designed for heavy products and demanding industrial processes.
Are designed to ensure:
- large configurable usable volumes;
- treatment of bulky components and heavy loads;
- forced-air ventilation sized according to the process;
- uniform heat distribution throughout the usable volume;
- management of products with high thermal inertia;
- high installed thermal power;
- stable and repeatable thermal cycles;
- structures and floors designed for industrial loads;
- doors and openings sized according to the product;
- integration with trolleys and handling systems;
- precise temperature control;
- independent overtemperature protection devices;
- acquisition and recording of process parameters;
- integration with production lines and external systems;
- fully custom-engineered configurations.
VULKAR SAE Large Capacity ovens can be used for heat treatment of coils and cables, drying, thermal stabilization, curing, treatment of large metal and technical components, and industrial processes involving high-mass loads.
Each system is developed starting from the process requirements, defining usable volume, internal dimensions, load mass and geometry, temperature, thermal power, ventilation, heating rate, floor load capacity, access, handling and control system.
- Type: Large Capacity industrial forced-air oven
- Usable volume: configurable, with developed systems above 20 m³
- Internal dimensions: defined according to customer specifications
- Maximum temperature: configurable, with developed systems up to +350 °C
- Thermal power: sized according to chamber volume and load
- Ventilation: industrial forced-air circulation
- Air distribution: designed according to load geometry and thermal mass
- Internal chamber: configurable according to process and temperature
- Thermal insulation: high-efficiency
- Floor: configurable and reinforced for heavy loads

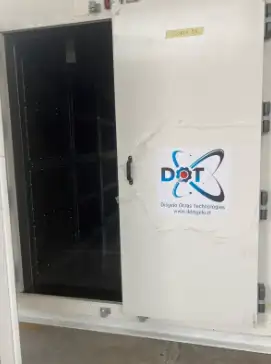

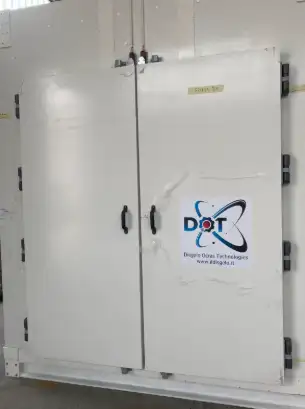

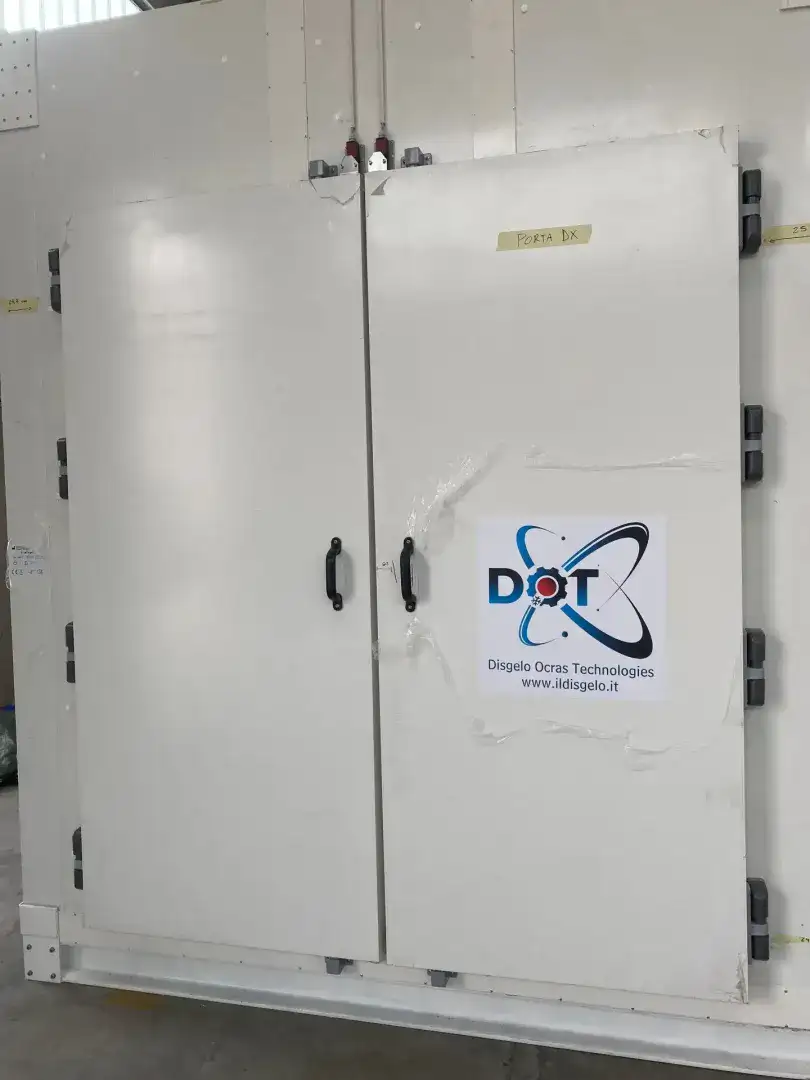

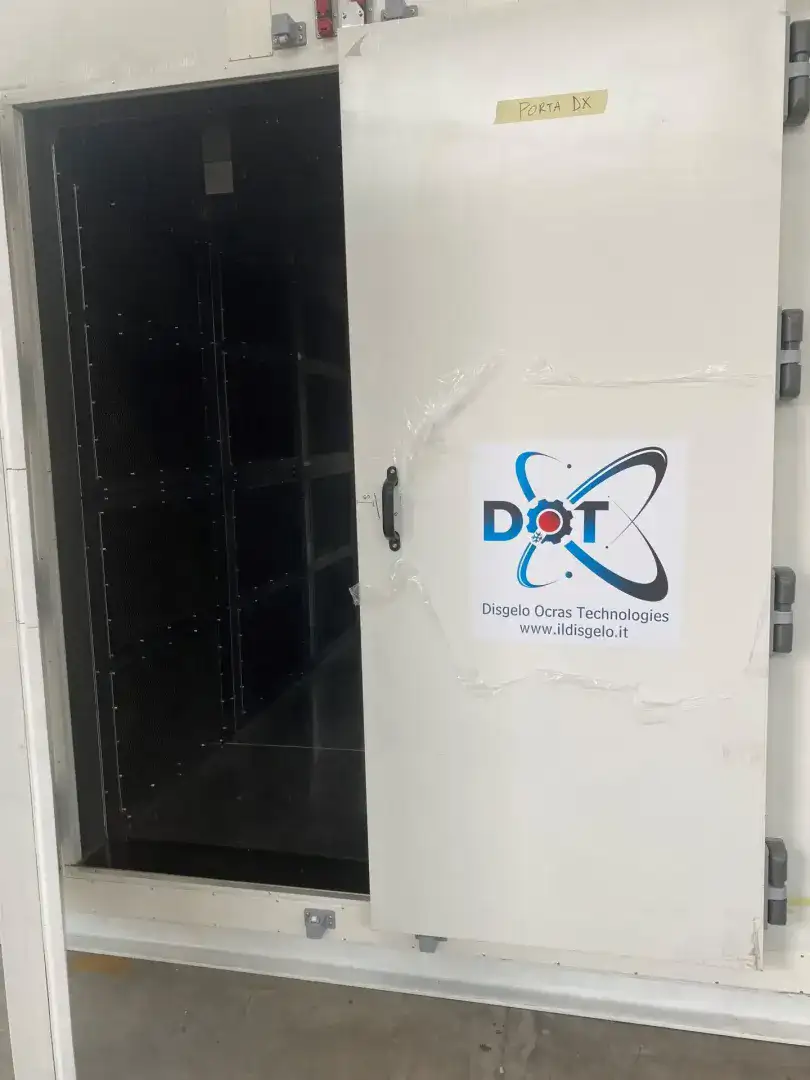

- Access: one or more configurable doors

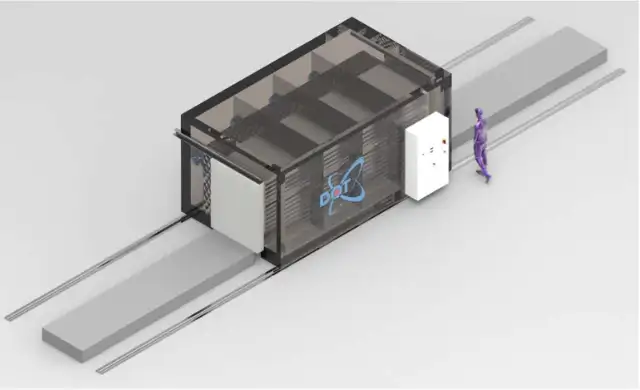

- Handling: provision for trolleys, rails or dedicated handling systems
- Technical feedthroughs: configurable for sensors, cables and utilities
- Control: PLC / industrial control system with operator interface
- Data logging: available according to configuration
- Safety: independent overtemperature protection, interlocks and process-specific safety systems
Reference Configurations
| MODEL | USABLE VOLUME | INTERNAL DIMENSIONS | MAX TEMPERATURE | INSTALLED POWER |
| VULKAR SAE Large Capacity | 11700 L | 11700 L | special configuration | +300 °C | 300 KW |
| VULKAR SAE Large Capacity | 12500 L | 12500 L | 2.930 × 1.900 × 2.200 mm | +120 °C | 25 KW |
| VULKAR SAE Large Capacity | 20000 L | 20000 L | 2.500 × 4.600 × 1.800 mm | +350 °C | 90 KW |
Configurable Data
The configurations shown are examples of systems already developed and do not represent a standard dimensional range. Each VULKAR SAE Large Capacity can be engineered with different usable volume, dimensions, temperature, thermal power, ventilation, load capacity, floor configuration, doors, handling systems and control architecture according to the application.
