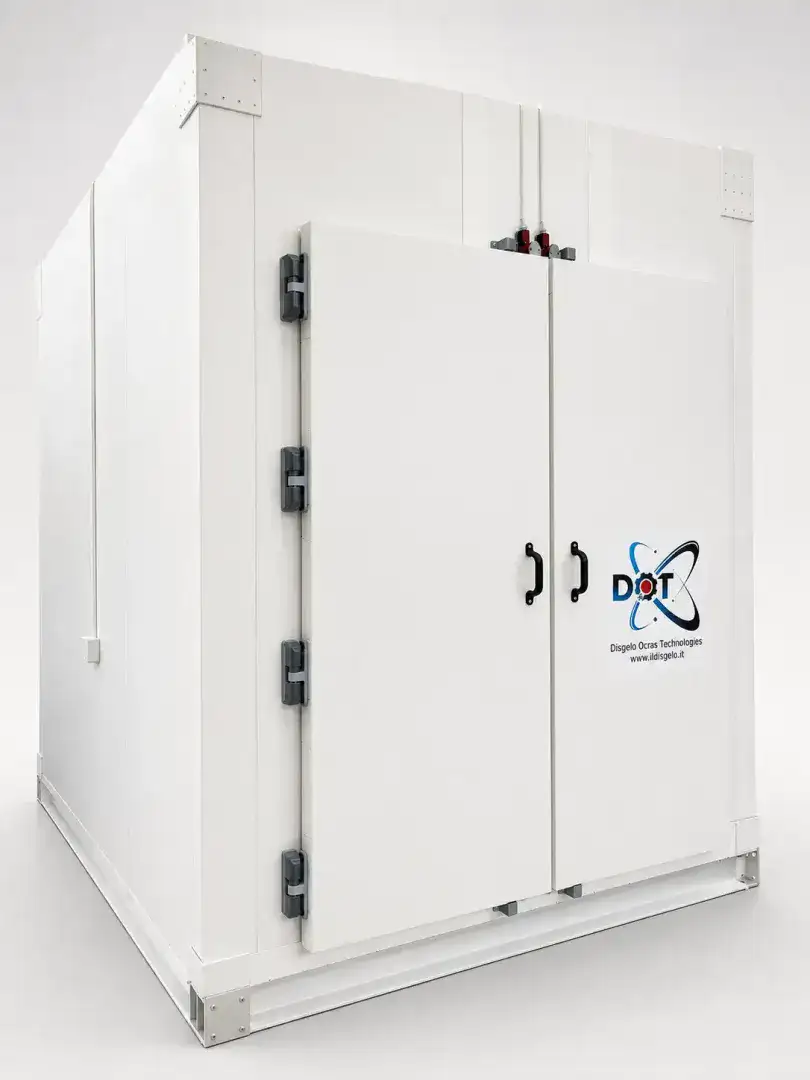

The VULKAR SAE V by Il Disgelo are industrial forced-air ovens designed to perform controlled heat treatments on components, materials and industrial products requiring high temperature uniformity, process stability and reliable long-term operation.
The platform uses forced air circulation with vertical airflow, developed to distribute heat uniformly throughout the usable volume and across the load. Air is conveyed through dedicated ducts and continuously recirculated inside the chamber, helping to reduce thermal gradients and maintain uniform treatment conditions.
The configurations are fully custom-engineered and can be developed in different sizes and capacities, adapting structure, thermal power, ventilation, access, shelves, floor configuration and load capacity to the characteristics of the product and the process.
Are designed to ensure:
- forced ventilation with vertical airflow;
- high temperature uniformity throughout the usable volume;
- stable and repeatable thermal cycles;
- controlled air distribution across the load;
- treatment of components with different dimensions and masses;
- management of products with high thermal inertia;
- precise temperature control;
- high-efficiency thermal insulation;
- customized door and access configurations;
- integration of shelves and dedicated internal structures;
- technical feedthroughs for cables, sensors and instrumentation;
- independent overtemperature protection devices;
- integration with handling systems and production processes;
- control, programming and recording of process parameters through dedicated industrial control systems.
VULKAR SAE V ovens can be used for drying, curing, thermal stabilization, treatment of metal components and technical materials, production processes, thermal testing, and research and development activities.
The family can include both conventional configurations and systems developed for specific loading and handling requirements. The 1,800 L SAE V_tunnel configuration, for example, uses vertical airflow, a sliding internal shelf and a monoblock structure designed for the thermal treatment of metallic and non-metallic products.
Each VULKAR SAE V is developed around the specific application, defining usable volume, internal dimensions, temperature, thermal power, heating rate, load capacity, ventilation, shelves, access, handling and control system.
- Type: industrial forced-air oven
- Airflow: vertical
- Usable volume: configurable according to the application
- Internal dimensions: defined according to customer specifications
- Maximum temperature: configurable, with documented systems up to +300 °C
- Internal chamber: stainless steel, AISI 304 in documented configurations
- Thermal insulation: high-efficiency and sized according to temperature and application
- Heating system: industrial electric heaters
- Ventilation: forced by dedicated motors and impellers
- Air distribution: dedicated ducting designed to generate vertical airflow and promote thermal uniformity
- Access: configurable with one or more doors

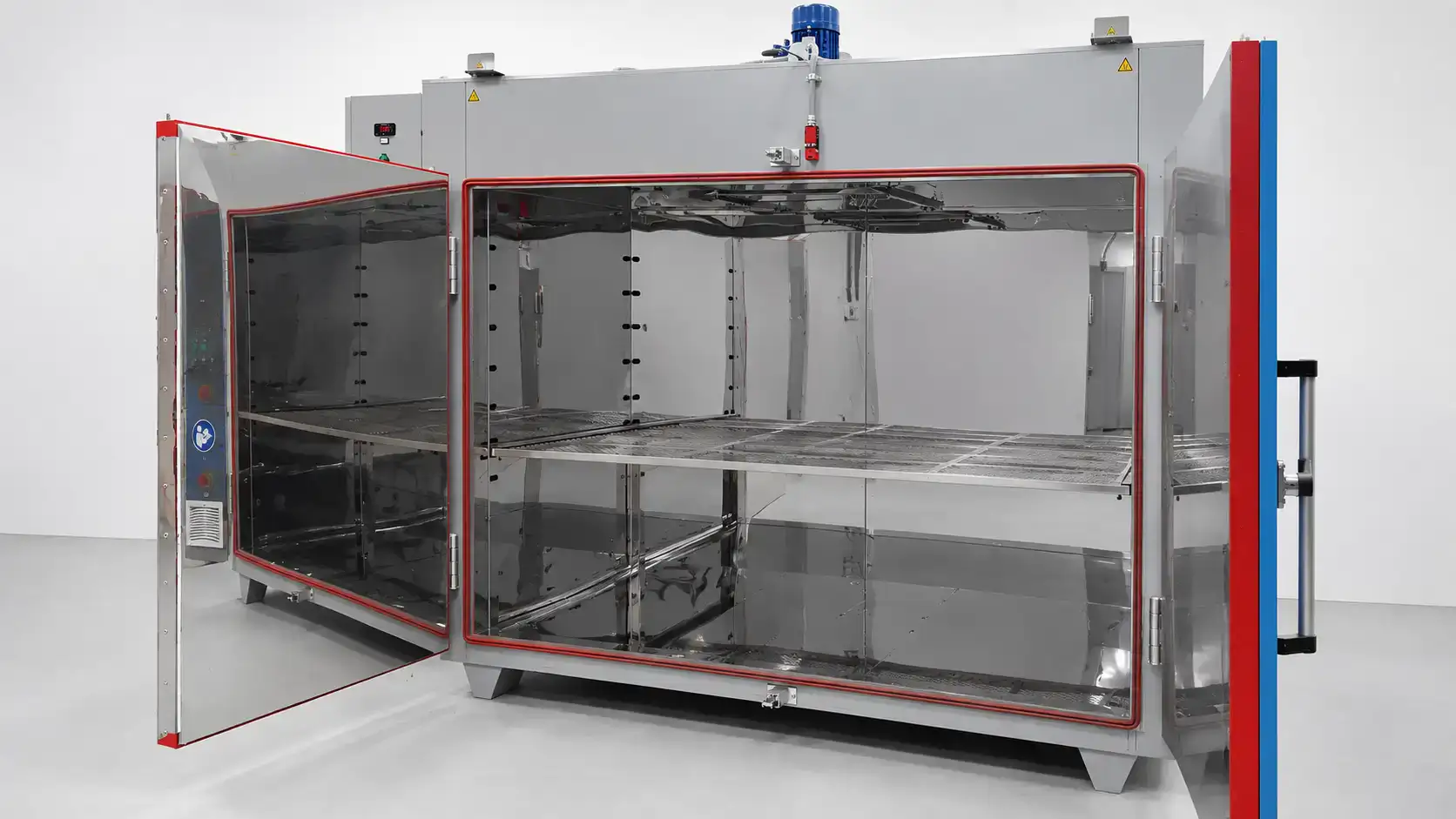

- Shelves: fixed or sliding according to configuration
- Floor: configurable for industrial loads and handling systems
- Air exchange: configurable according to the process
- Technical feedthroughs: available for cables, sensors and instrumentation
- Control: PLC / industrial electronic control system with operator interface
- Connectivity: USB, Ethernet and remote supervision according to configuration
- Safety: independent overtemperature protection, emergency stop and door interlocks
Reference Configuration
| MODEL | USABLE VOLUME | INTERNAL DIMENSION | MAX TEMPERATURE | INSTALLED POWER |
| VULKAR SAE | 1000 L | 1000 L | 1.000 × 1.000 × 1.000 mm | +300 °C | 8.5 KW |
| VULKAR SAE | 1500 L | 1500 L | 1.500 × 1.000 × 1.000 mm | +300 °C | 17 KW |
| VULKAR SAE | 1800 L | 1800 L | 785 × 2650 × 945 mm | +120 °C | -- |
| VULKAR SAE V | 3000 L | 3000 L | 2.000 × 1.000 × 1.500 mm | +200 °C | 17 KW |
| VULKAR SAE V | 18400 L | 18400 L | 2.300 × 2.500 × 3.200 mm | +250 °C | 60 KW |
Configurable Data
The configurations shown are examples of systems already developed and do not represent a standard dimensional range.
Each VULKAR SAE V can be engineered with different internal dimensions, usable volume, temperature, thermal power, heating rate, load capacity, shelves, access configuration, ventilation and control system according to the application.
