I VULKAR SAE Multi-Chamber by Il Disgelo are custom industrial ovens designed to perform controlled thermal treatments inside multiple independent chambers integrated into a single system.
This architecture is particularly suitable for production processes that require the simultaneous management of multiple batches, with the possibility of setting and controlling temperature and cycle time independently for each chamber.
Each compartment can be equipped with an independent air-treatment system, allowing autonomous operating conditions to be maintained inside the different chambers and enabling several processes to be carried out simultaneously without forcing the entire system to follow a single cycle.
The multi-chamber configuration increases system productivity, optimizes available space and reduces waiting times between cycles, while maintaining a high degree of flexibility in the management of the different production phases.
The systems are designed to ensure:
- multiple independent treatment chambers;
- separate temperature control for each chamber;
- independent cycle-time setting;
- simultaneous processing of multiple batches;
- dedicated air treatment for each compartment;
- uniform air distribution inside the chambers;
- high stability of process conditions;
- independent access to each compartment;
- threshold-free configurations to facilitate trolley access;
- safety interlocks on the doors;
- optical indication of cycle status and completion;
- centralized control through PLC and touch panel interface;
- monitoring and logging of process parameters;
- zone humidity display according to configuration;
- supervision and connection to external systems;
- customizable configurations according to the number of chambers, dimensions and process requirements.
The VULKAR SAE Multi-Chamber systems can be used for thermal treatment of industrial components, stabilization, drying, multi-batch production processes and applications requiring the simultaneous management of independent cycles.
Custom design makes it possible to define each system according to the production process, configuring the number and dimensions of the chambers, operating temperature, heating rate, installed power, air treatment, access systems, cycle management and control architecture.
- type: custom multi-chamber industrial oven;
- configuration: independent chambers integrated into a single system;
- number of chambers: configurable;
- temperature management: independent for each chamber;
- cycle management: independent for each chamber;
- air treatment: independent for each compartment, depending on configuration;
- heating: electric resistance heaters;
- control: PLC with touch panel interface;
- parameter display: temperature and cycle time for each chamber;
- humidity monitoring: available depending on configuration;
- data logging: available through the control system;
- connectivity: Ethernet, VNC Viewer and Modbus TCP/IP depending on configuration;
- internal structure: configurable with AISI 304 stainless-steel finish;
- insulation: sized according to the required temperature range;
- access: independent doors configurable according to load and handling systems;
- power supply: three-phase in documented industrial configurations;
- safety: dedicated interlocks, thermostats and protection devices.
Reference Configuration

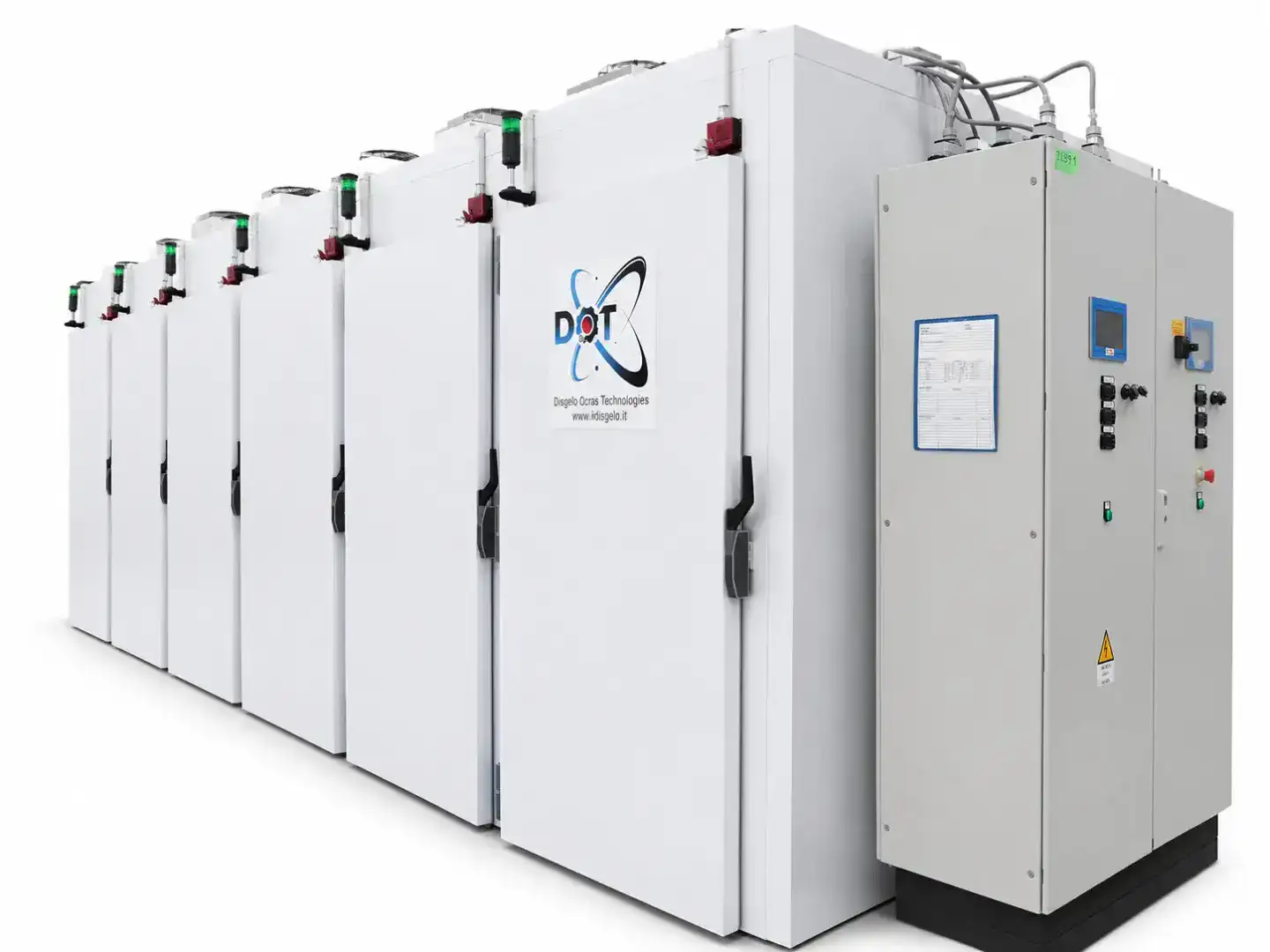

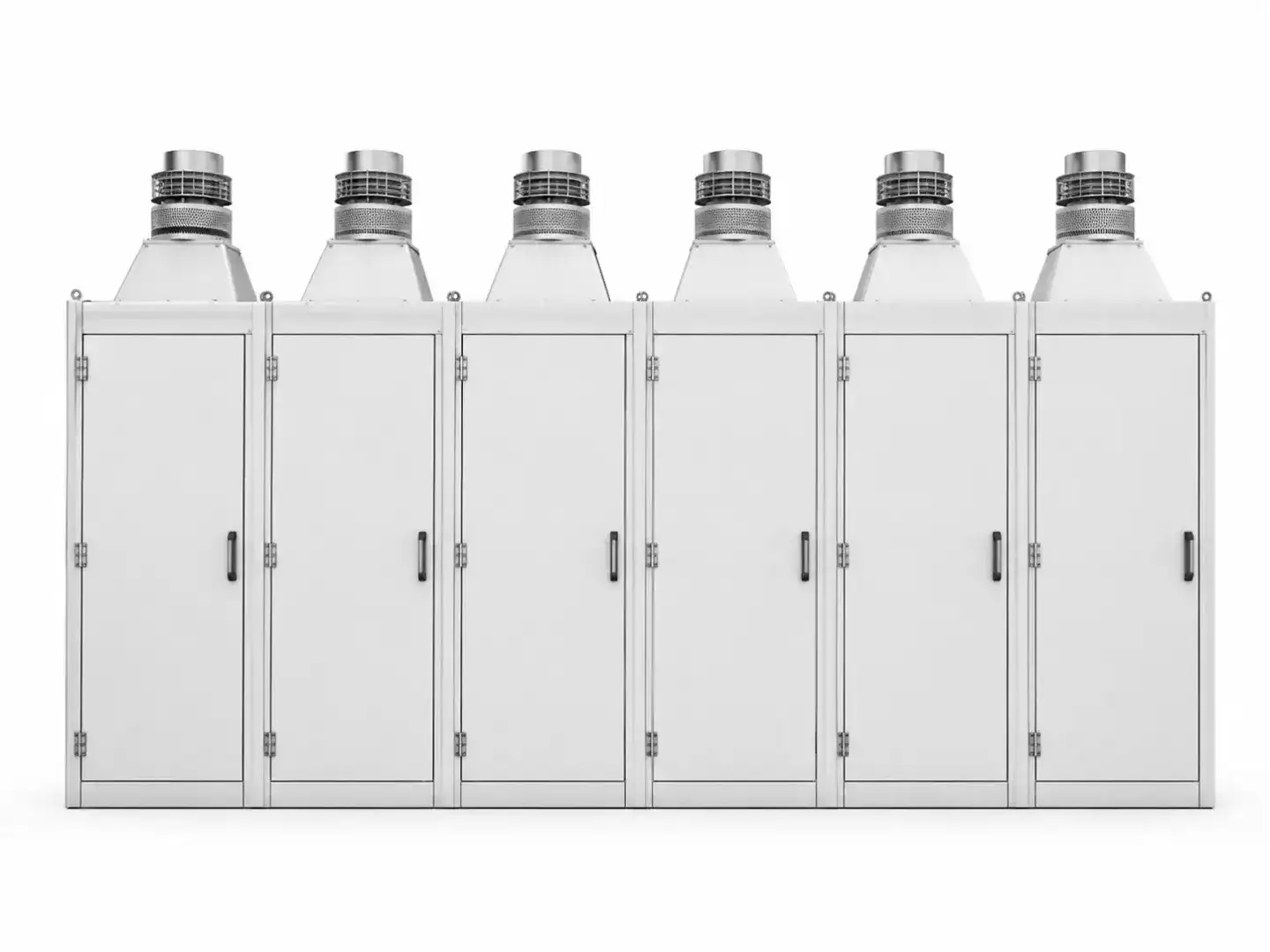

The following configuration is based on a 6-independent-chamber system already developed by Il Disgelo.
| CONFIGURATION | CHAMBERS | USABLE DIMENSIONS PER CHAMBER | OVERALL INTERNAL DIMENSIONS | TEMPERATURE RANGE | INSTALLED POWER |
|---|---|---|---|---|---|
| VULKAR SAE Multi-Chamber | 6C | 6 independent | 1165 × 2000 × 2500 mm | 7230 × 2060 × 2500 mm | Ambient +10 °C / +60 °C | 33 kW |
For this reference configuration, each chamber is equipped with independent temperature control, dedicated air treatment and autonomous cycle-time management. The six chambers are organized into two groups of three, each managed by a dedicated PLC.
Configurable Data
The values shown represent one technical configuration already developed and not a standard product range.
Each VULKAR SAE Multi-Chamber is custom-designed and can be built with different numbers of chambers, usable dimensions, temperature ranges, heating rates, installed power, air-treatment systems, access doors, handling systems and control architectures according to the application and production process.
The management of chamber groups, humidity monitoring, safety interlocks, data logging and integration with external supervision or acquisition systems can also be configured.
