DRACARYS 800 L Climatic Chamber for Hutchinson

‎ ‎ ‎

Il Disgelo supplied Hutchinson with an 800-litre DOT DRACARYS climatic chamber, designed to perform climatic tests under controlled conditions.

The solution operates from −70 °C to +180 °C, with relative humidity control from 20% to 98% RH, and integrates dedicated glycol detection and test safety systems.

‎

Developed solution

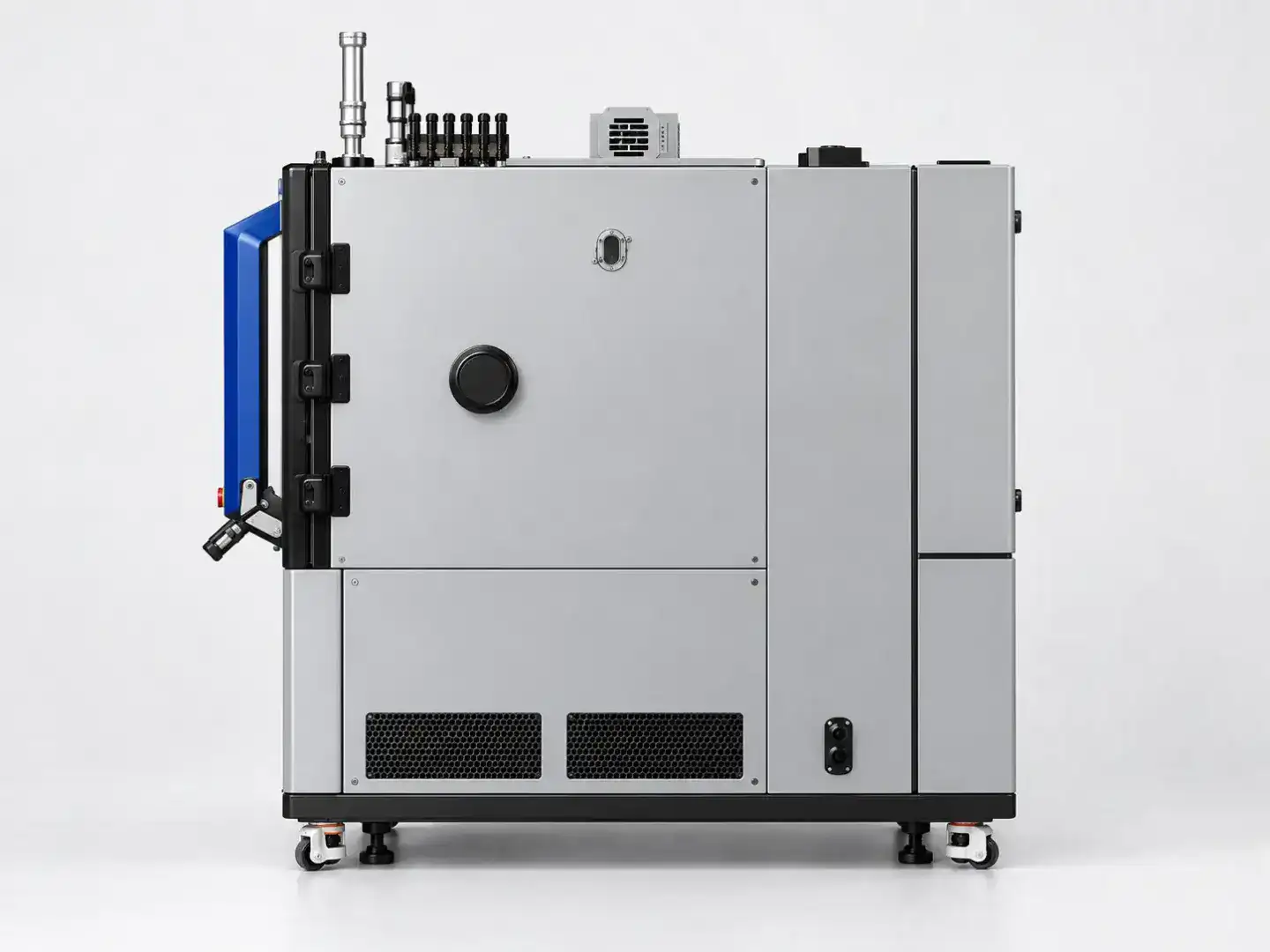

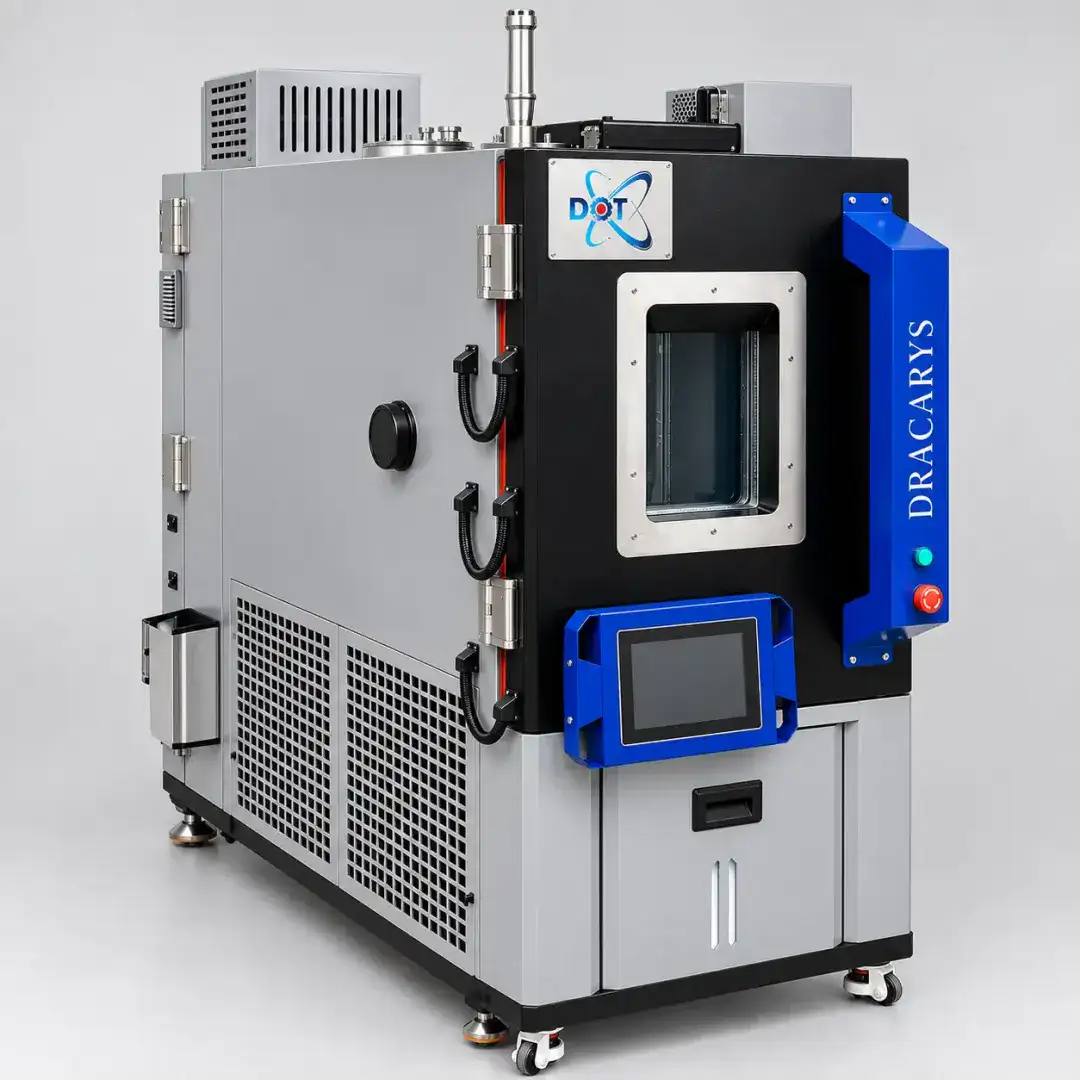

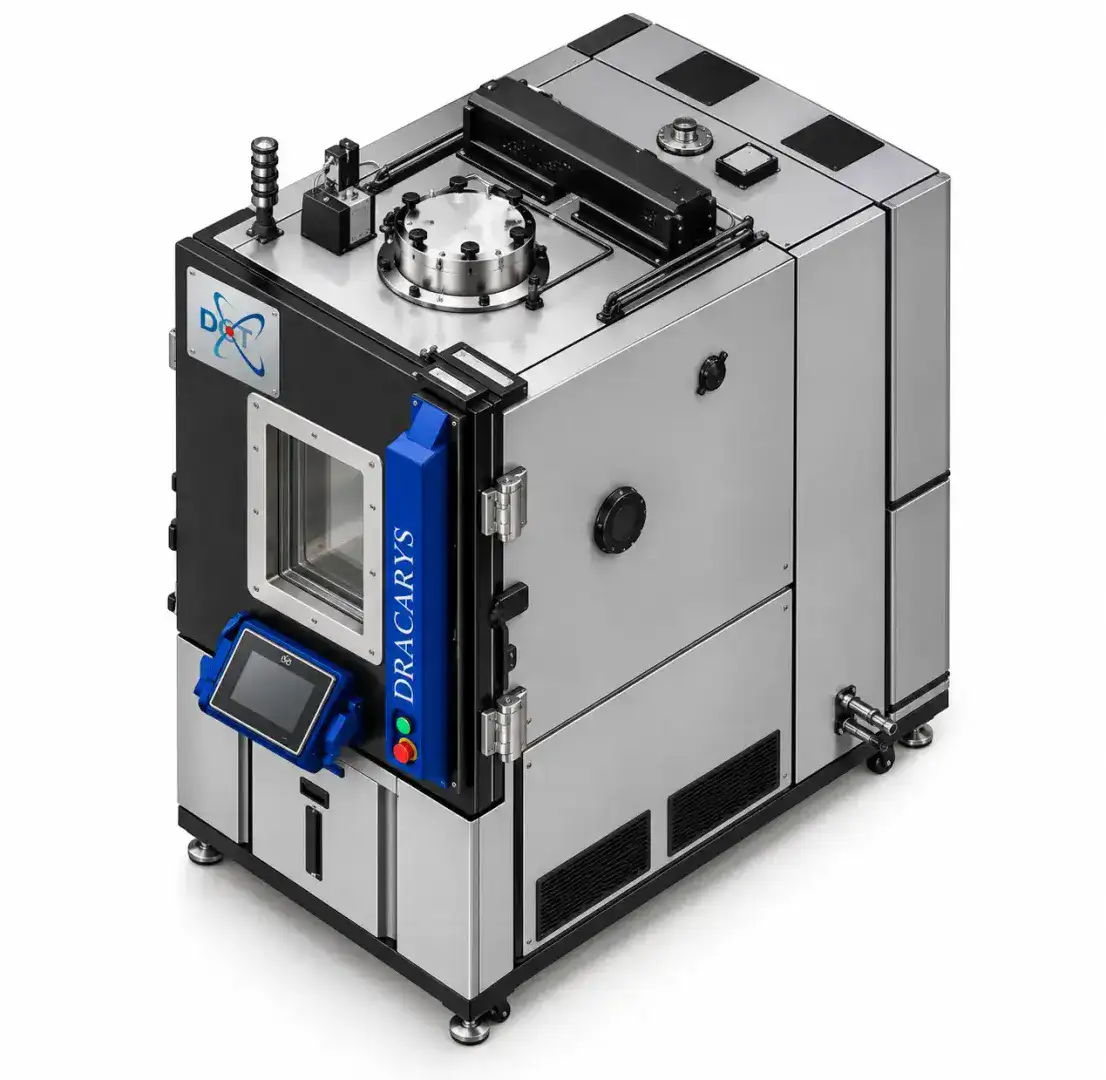

The chamber features a monobloc configuration, an AISI 304 stainless-steel test compartment and 100 mm thermal insulation.

The configuration includes:

• cascade refrigeration system;
• heating rate up to 3 °C/min;
• cooling rate up to 2.5 °C/min;

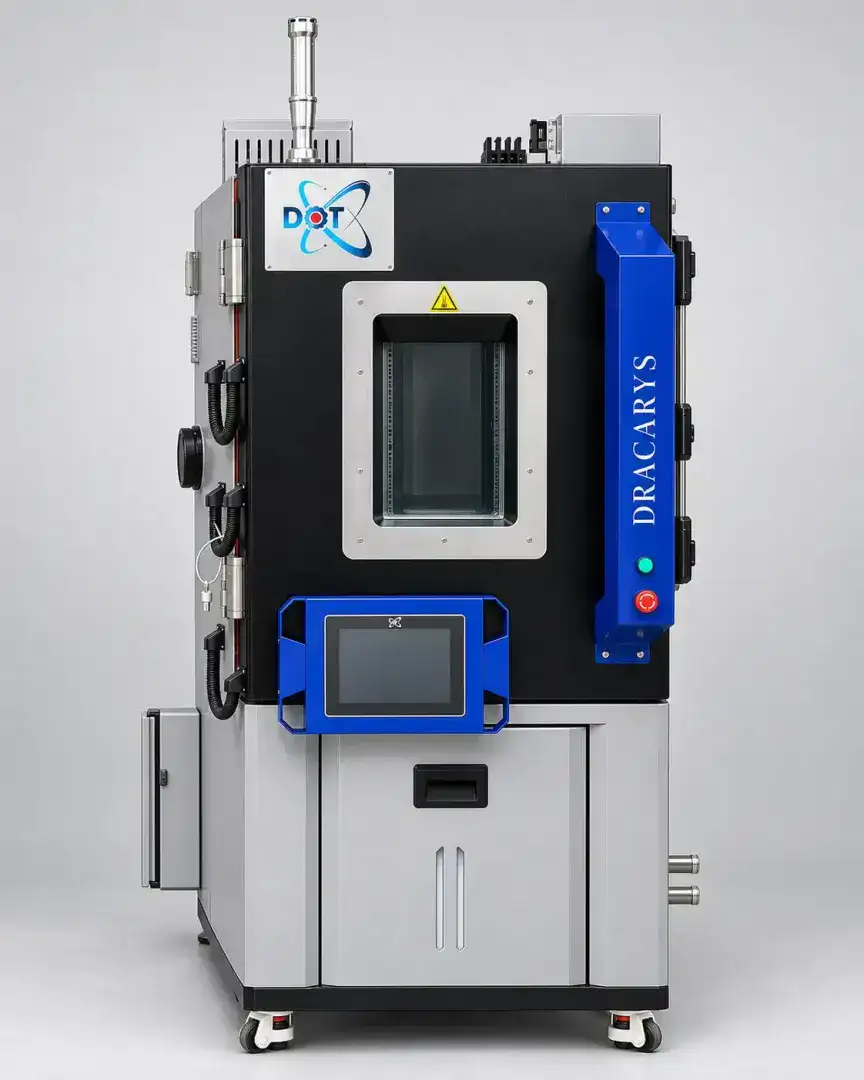

• door with heated observation window;
• glycol sampling and detection system;
• fire-extinguishing system;
• ATEX air-renewal system;
• SIL 3-certified safety components;
• CliMaLogic® control system;
• CSV data recording;
• VNC Viewer and Modbus TCP/IP.

‎

Main technical specifications

• useful volume: 800 L;
• internal dimensions: 1,000 × 800 × 1,000 mm;
• temperature range: −70/+180 °C;
• relative humidity: 20–98% RH;
• heating rate: 3 °C/min;
• cooling rate: 2.5 °C/min;
• temperature uniformity: ≤1 °C;
• refrigerants: R449A and R23;
• weight: approximately 1,200 kg;
• maximum power: approximately 16 kW;
• power supply: 400 V, three-phase + neutral + ground.

‎

Result

Hutchinson now has a compact, high-performance climatic chamber capable of reproducing extreme temperature and humidity conditions.

The integration of detection, air-renewal and fire-extinguishing systems enables testing with a high level of control and safety.
