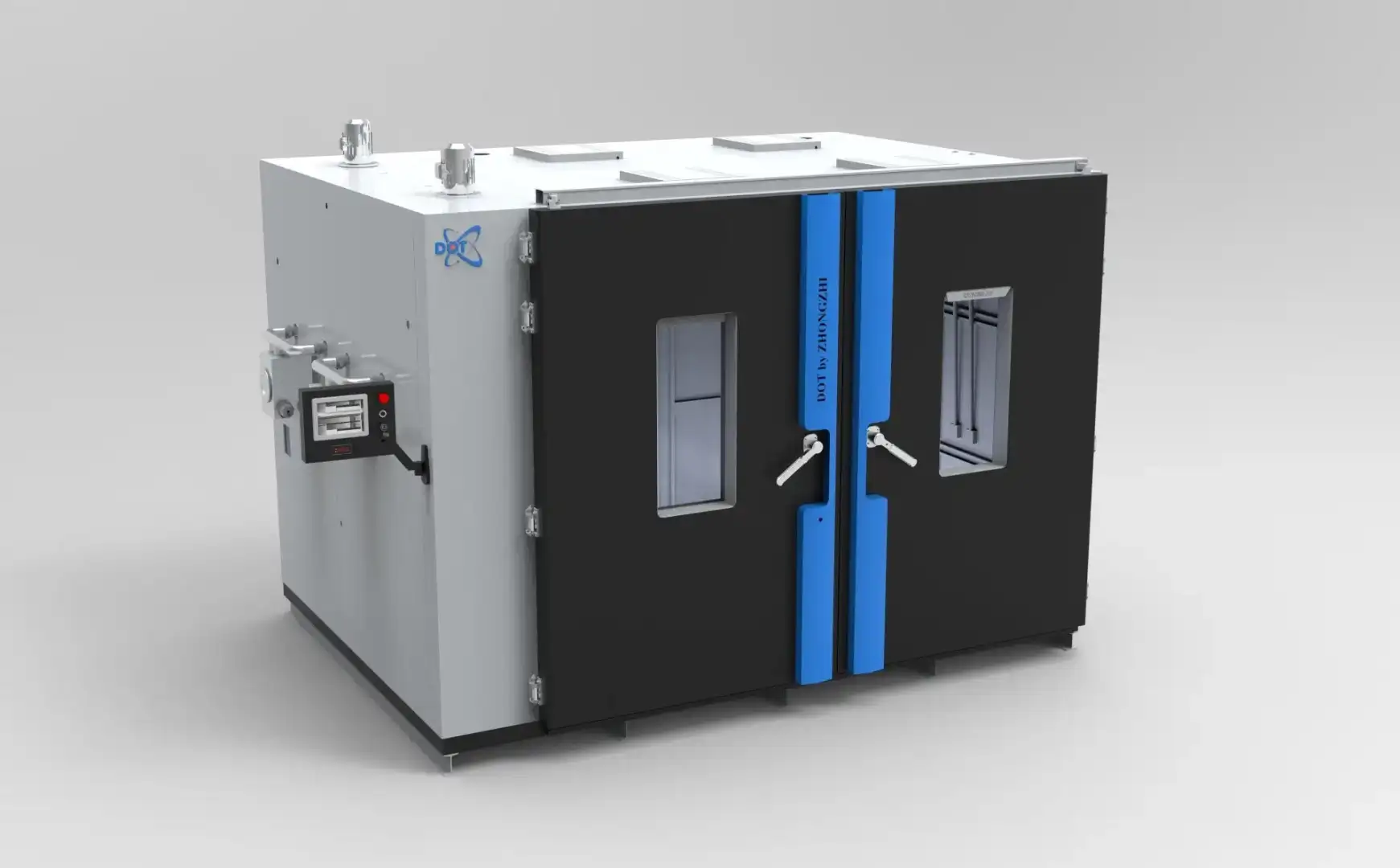

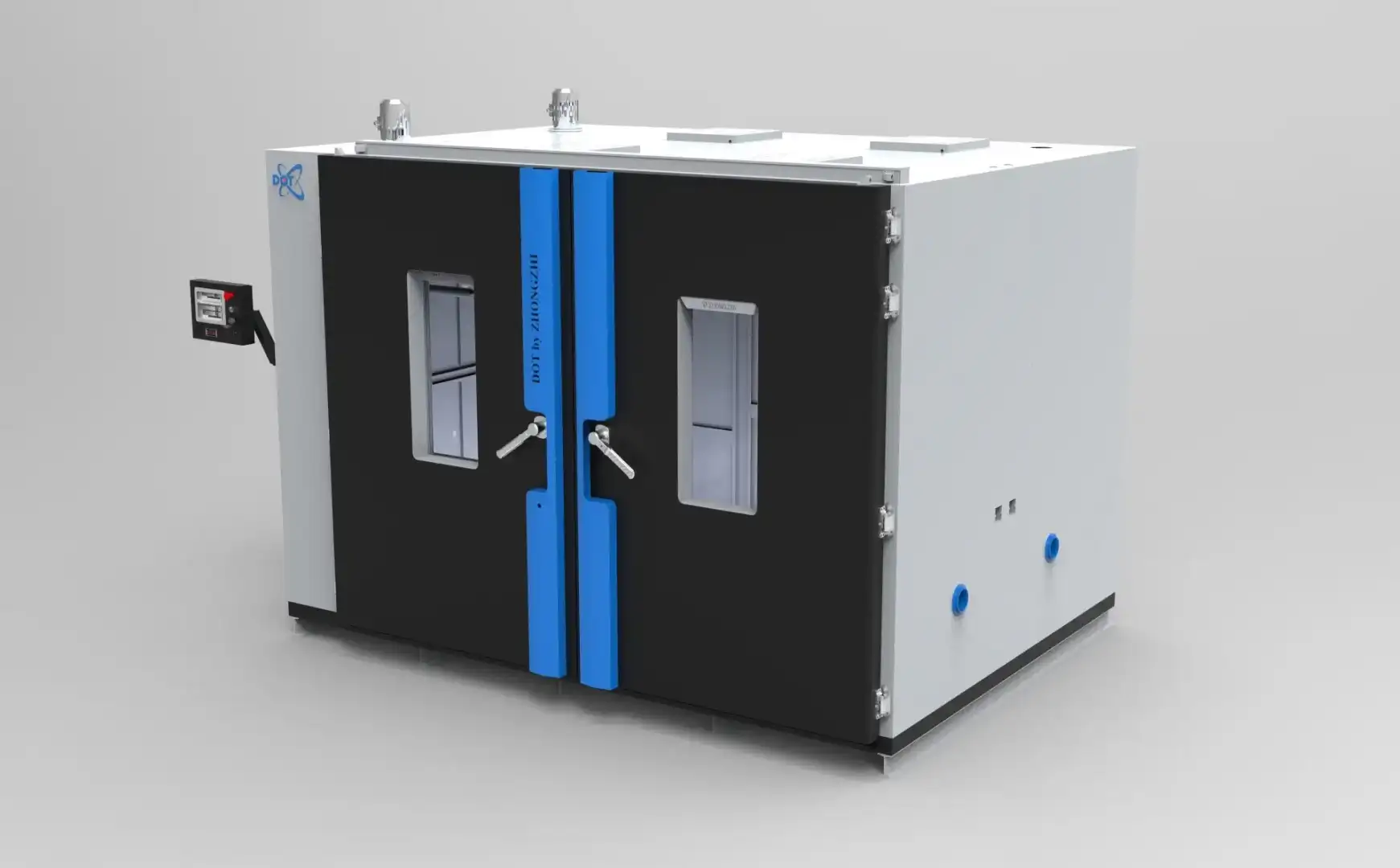

The DROGON Monobloc series is the most robust and durable walk-in configuration within the DOT range, designed for intensive industrial applications involving high temperatures, high humidity, significant thermal loads and extreme climatic cycles.
Each chamber is entirely custom-engineered and manufactured according to the required test conditions, specimen dimensions, thermal loads, available installation space and the customer’s technical specifications.
The AISI 304L stainless-steel inner structure is manufactured using continuous TIG welding. This construction method ensures mechanical continuity, excellent structural tightness and dimensional stability, even during continuous operation under severe conditions. The chamber’s structural tightness is also verified through a dedicated pressure test.
DROGON Monobloc are designed to provide:
- fully customised design and configuration;
- customisable dimensions, internal volume, climatic performance, access points and technical equipment;
- outstanding structural strength and durability;
- continuity and tightness of all welded surfaces;
- structural tightness verified through pressure testing;
- dimensional stability during extreme thermal cycles;
- reliable performance under high-temperature and high-humidity conditions;
- continuous operation in demanding industrial environments;
- integration with test benches, dynamic systems and dedicated equipment.
It is the ideal solution for new buildings, laboratories and production facilities with access points large enough to allow the complete chamber to be transported, introduced and positioned as a single unit.
The monobloc construction makes it possible to create particularly robust and high-performance custom climatic chambers, configured according to the required temperature and humidity ranges, rates of temperature change, thermal loads, applicable standards and the specific requirements of each project.
- Type: Monoblock Walk-In climatic chamber
- Structure: industrial construction with high structural rigidity and thermal insulation
- Usable volume: fully configurable
- Internal dimensions: defined according to customer specifications
- Temperature range: configurable, with solutions up to −70 °C / +180 °C
- Relative humidity: configurable up to 10–95% RH
- Temperature stability: up to ±0.5 / ±1 °C
- Thermal gradients: configurable according to load and process requirements, with developed solutions up to 3 K/min
- Heat dissipation capacity: sized according to the DUT and application
- Internal chamber: AISI 304 stainless steel according to configuration
- External finish: galvanized / pre-painted sheet metal
- Thermal insulation: high-efficiency insulation sized according to the required performance
- Floor: insulated and reinforceable for high industrial loads
- Doors and access: configurable with one or more leaves and custom-sized openings
- Windows: available in different sizes, including heated versions
- Air treatment: dedicated system with evaporator / heat exchanger, heating, ventilation and air distribution sized according to the process
- Ventilation: industrial forced-air circulation
- Cooling: direct refrigeration system, air-cooled, water-cooled or integrated with a chiller according to configuration
- Heating: industrial electric heaters with independent protection systems
- Humidification: by steam generator
- Dehumidification: by dedicated system
- Dew point control: available according to configuration
- Dry-air injection: available for specific tests and condensation prevention
- Technical feedthroughs: configurable for cables, sensors, thermocouples, piping and utilities
- Internal lighting: dedicated system suitable for the climatic conditions inside the chamber
- Control: PLC with touch-panel interface and DOT / CliMaLogic software
- Programming: automatic and multi-program cycle management
- Data logging: process parameter recording and data export
- Connectivity: USB, Ethernet, VNC and industrial communication protocols according to configuration
- Safety: temperature protection, emergency devices, interlocks and application-specific safety systems
- Power supply: defined according to the required performance
Configurable Data
The specifications shown represent the range of solutions that can be developed and do not constitute a standard model range. Each DROGON Monoblock Walk-In is fully custom-engineered according to usable volume, internal dimensions, temperature, humidity, thermal gradients, DUT mass and heat dissipation, load capacity, refrigeration system, air treatment, access configuration, safety requirements, data acquisition and integration with the test process.
- Custom doors and access points: single or multiple leaves, automatic vertical sliding sectional doors (down to −40 °C only), dedicated personnel access and antechamber with "thermal airlock" management;
- Additional portholes: different sizes and configurations, also heated;
- Reinforced floor: for heavy loads, with recessed rails for DUT anchoring;
- Custom technical pass-throughs: for cables, probes, thermocouples and piping, in sizes and positions on request;
- Dedicated ventilation and air distribution: sized according to chamber dimensions, DUT geometry and required performance, with inverter-based airflow speed modulation;
- Thermal upgrades: refrigeration boosters and upgraded refrigeration units, LN₂ or CO₂ boosters for fast thermal transitions;
- Integration with external plant systems: air-cooled, cooling-tower water or chilled-water condensation (including remote condenser), dedicated hydronic loops for the DUT;
- Advanced humidification and dehumidification: upgraded systems, deep dehumidification, supplementary drying with dew point control, demineralizer;
- Solar Test: UV lamps and irradiation systems, configurable according to the test profile;
- Advanced monitoring: additional temperature and humidity sensors, thermocouple kit and multipoint acquisition, certified calibration and mapping;
- Battery safety: EUCAR 0–6 configurations, gas monitoring (H₂, CO, O₂, LEL, HC, R1234yf, R290, ethylene glycol and others), fresh air/purge/smoke extraction, overpressure relief, CO₂ extinguishing for EUCAR 4+, nitrogen inerting and oxygen monitoring;
- General safety: fire and smoke detection provisions, door lock and safety interlocks, ATEX ventilation and lighting;
- Integration with test benches: Six Poster, vibration systems, infrared systems for vehicle testing;
- Electrical and continuity: dedicated DUT outlets and power supplies, UPS on control and safety systems;
- Remote supervision and operating comfort: remote control and teleassistance, internal video surveillance, machine status beacon, sound insulation of the technical compartment and refrigeration unit;
- Aesthetic customization: choice of RAL colors and custom writing/logos on the chamber;
- Special configurations: per customer specification, for particular climatic, dimensional, mechanical, plant or safety requirements.
Note
Options are defined during technical analysis, based on chamber size, DUT, load mass and dissipation, required temperature and humidity, thermal gradients, available utilities, test methods, external systems to integrate and the application's required safety level.
